Key Specifications

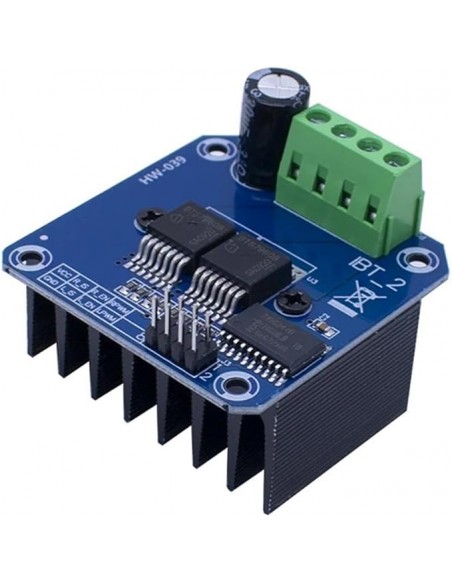

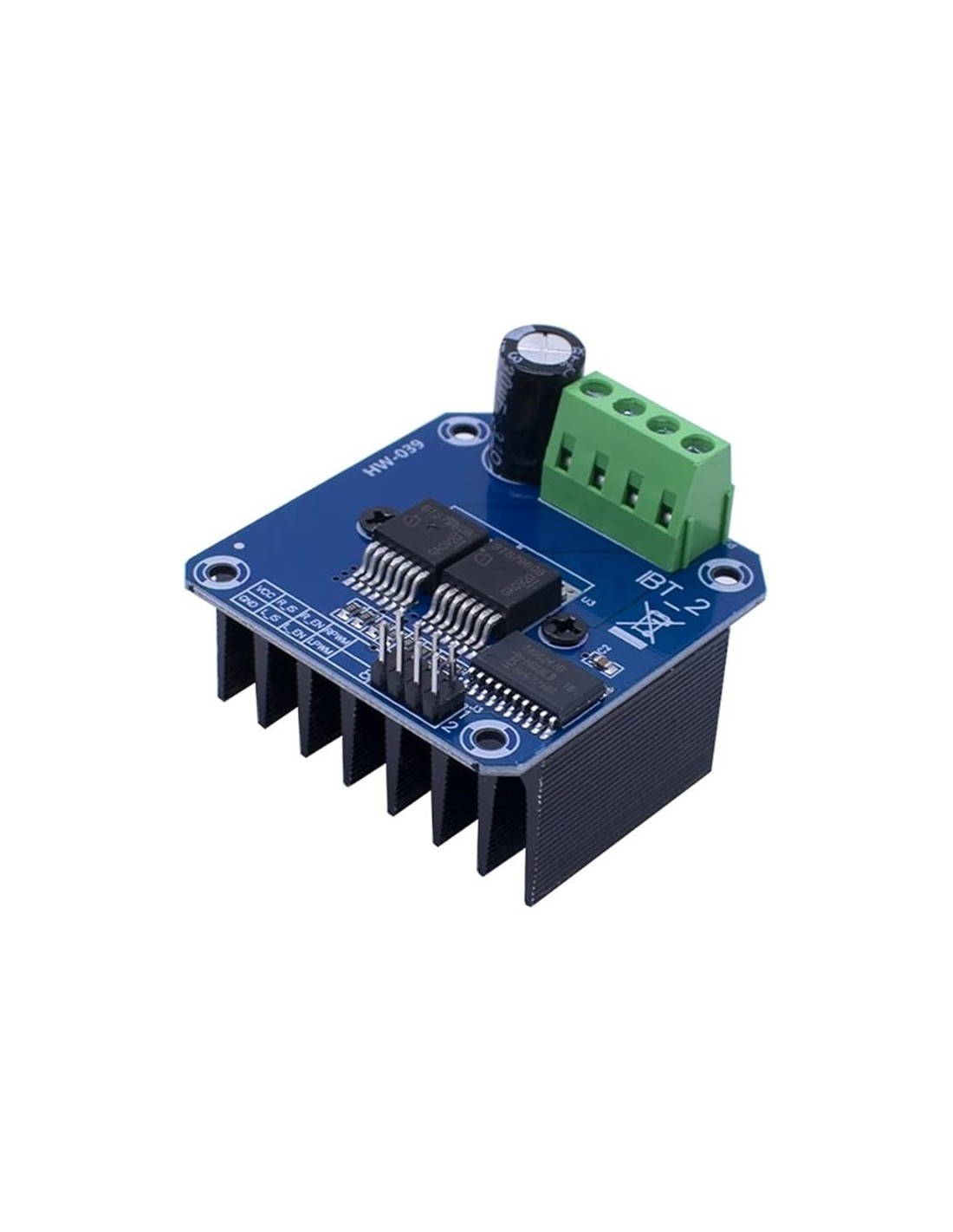

- Driver Type: Dual BTS7960 H-Bridge configuration
- Peak Current Capacity: Up to 43A, suitable for high-power motors
- Input Voltage Range: 6V to 27V DC
- PWM Frequency Support: Up to 25 kHz, allowing smooth motor control
- Control Voltage Level: 3.3V to 5V, compatible with most microcontrollers
- Control Modes: PWM or level-based control
- Duty Cycle Range: 0% to 100%
🧠 Integrated Protections
- Over-temperature protection
- Over-voltage and under-voltage lockout
- Over-current and short-circuit protection
- Dead time generation and slew rate adjustment for safe switching
