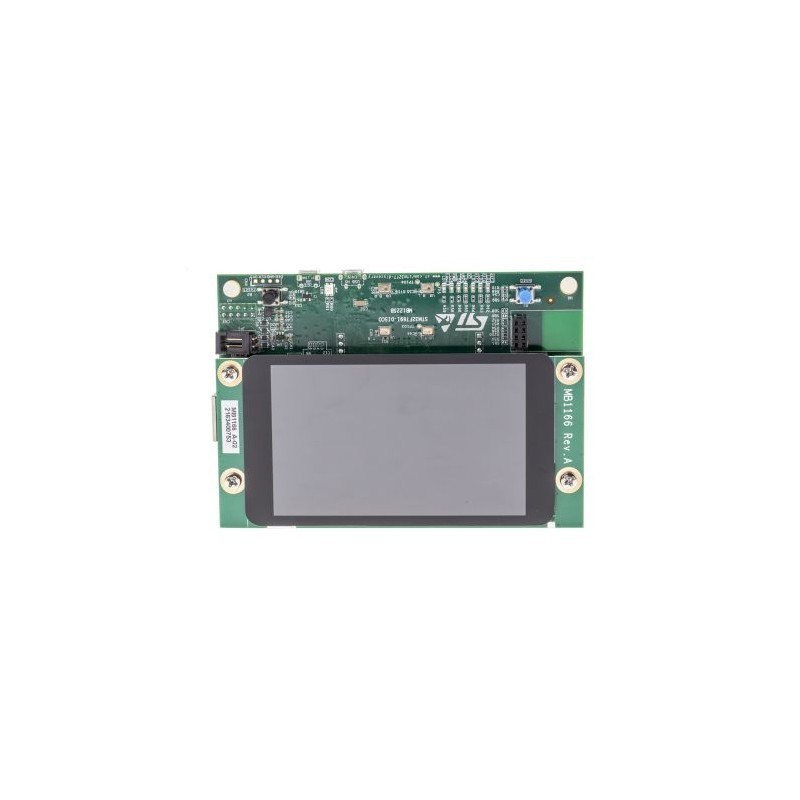

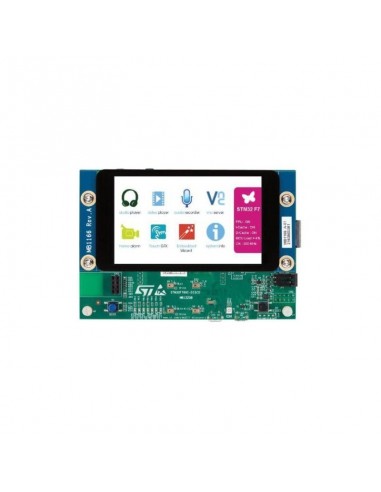

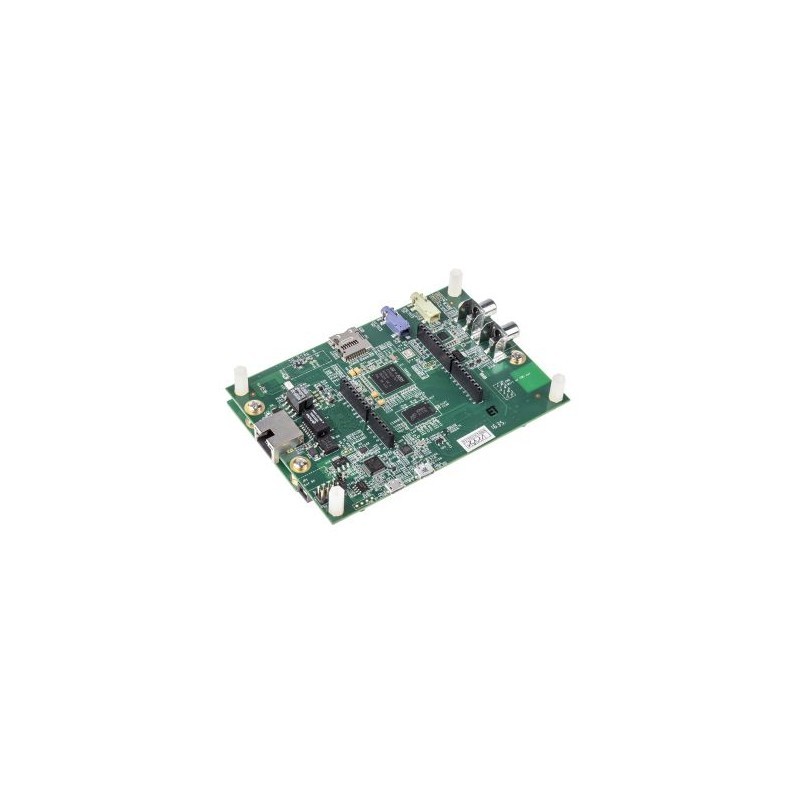

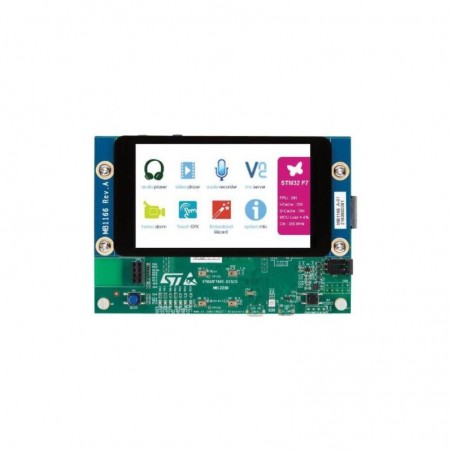

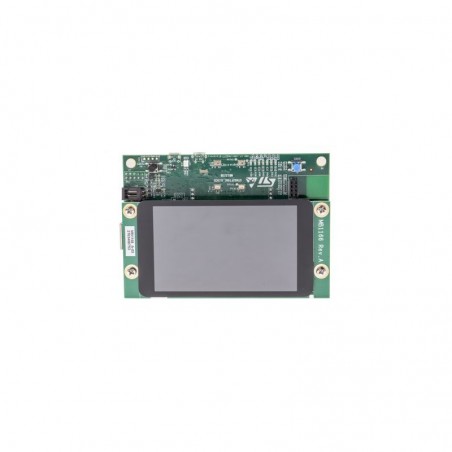

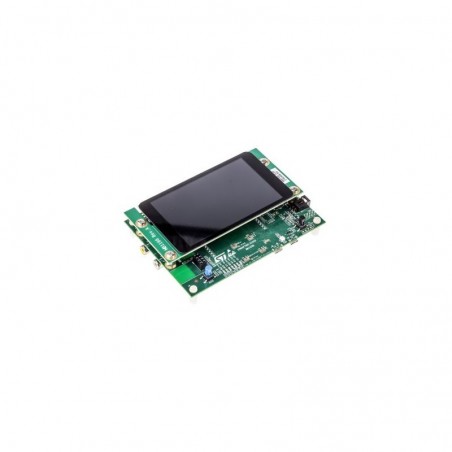

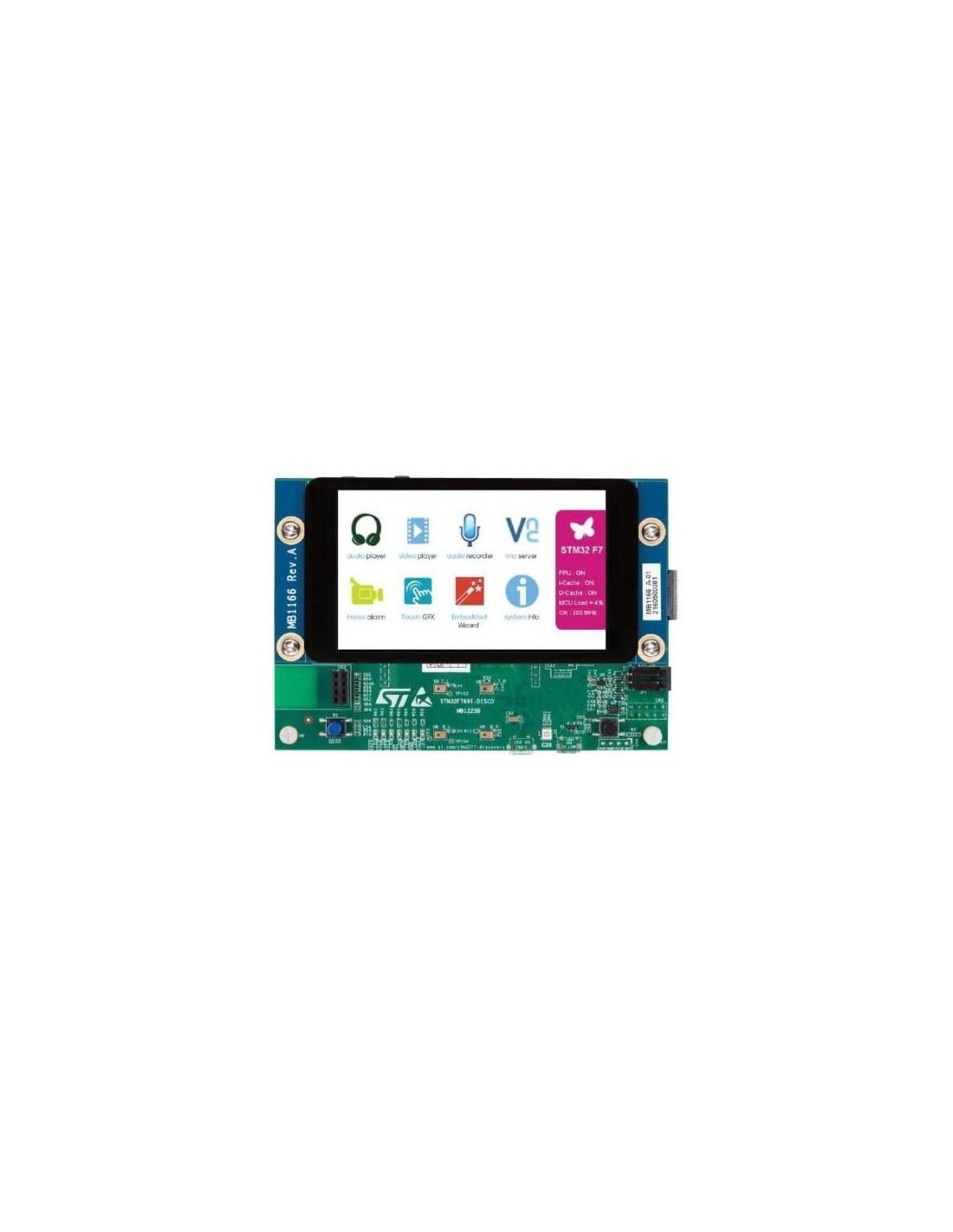

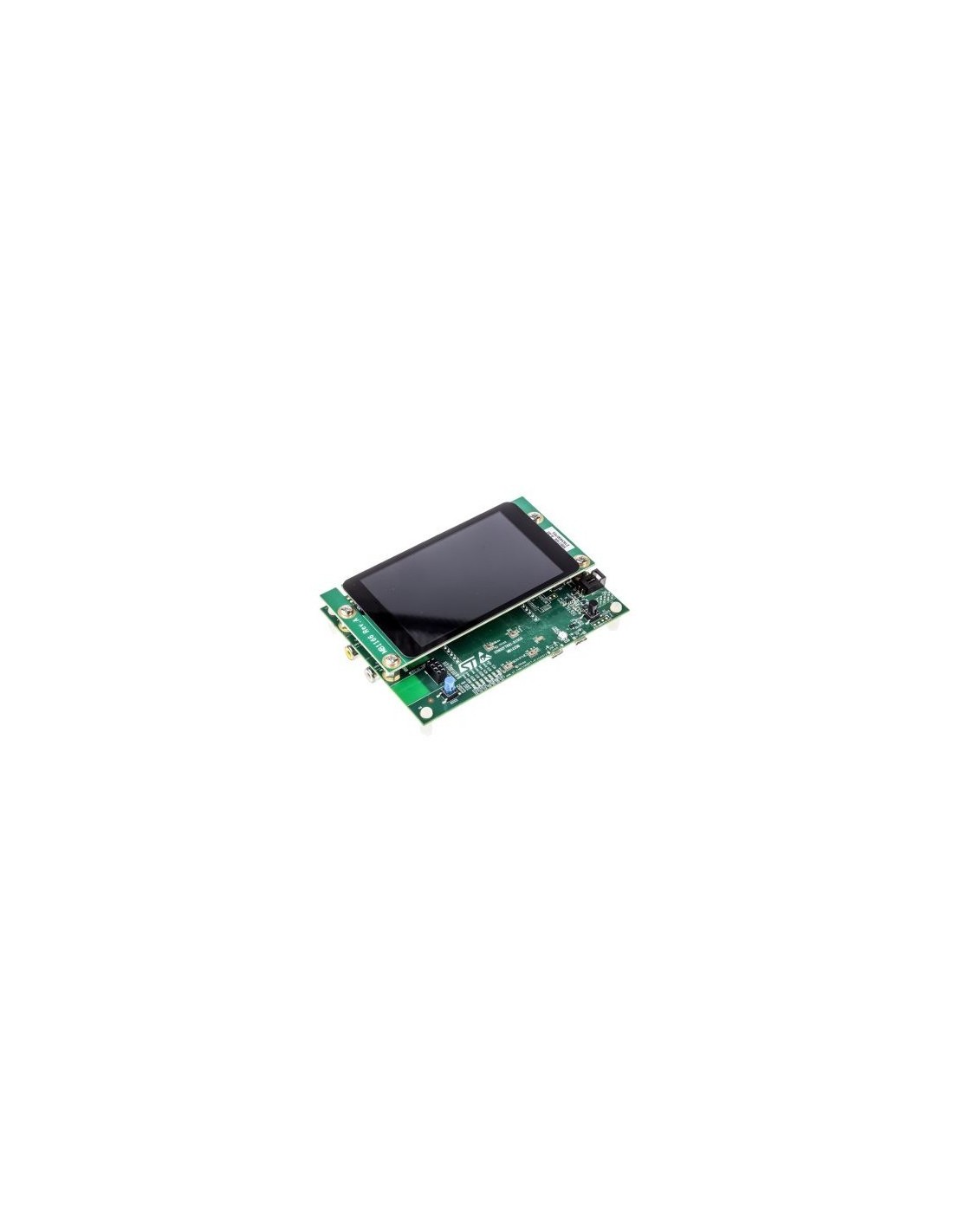

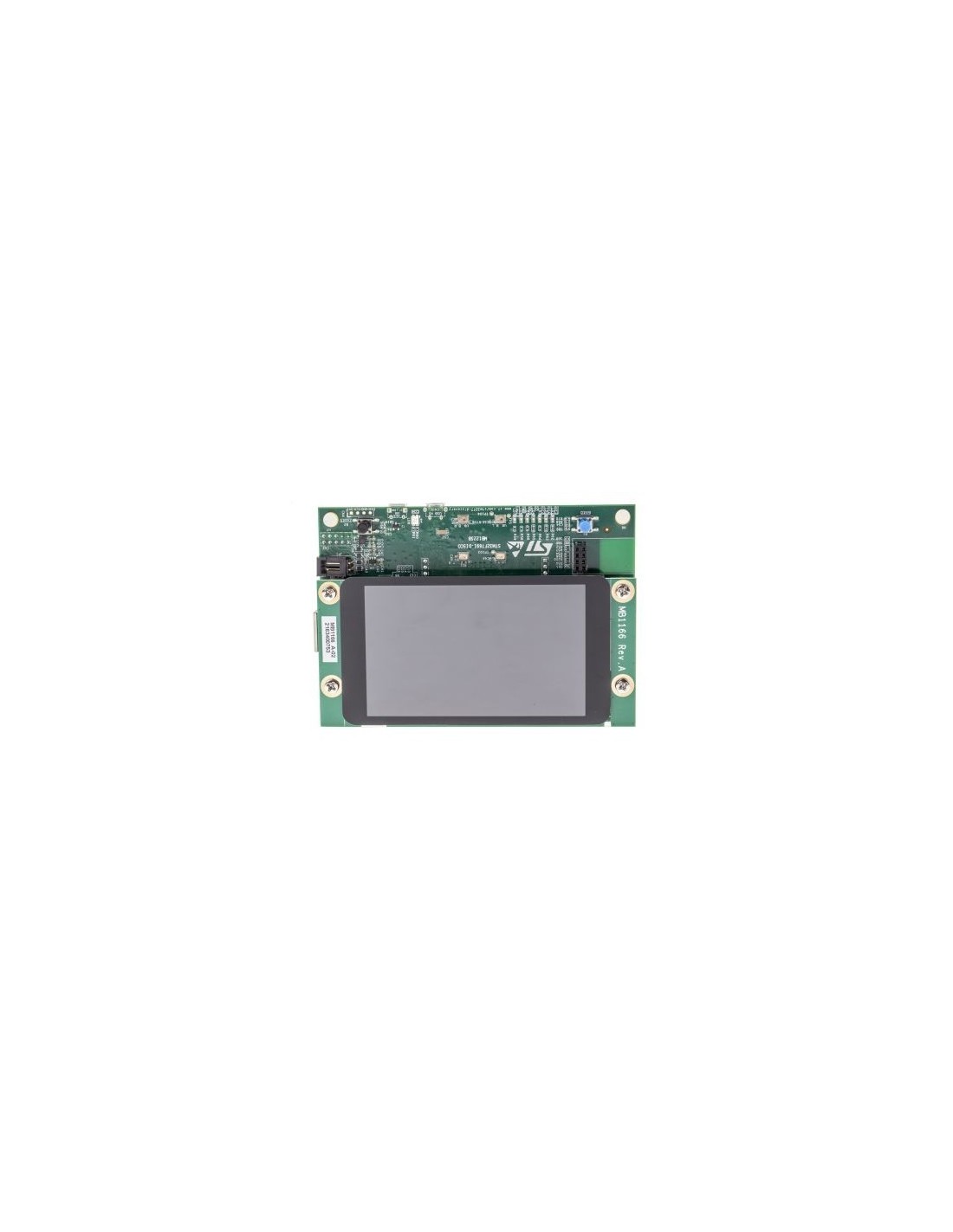

STM32F769I-DISCO M7 216 MHZ

The STM32F769I-DISCx Discovery Kits help explore the STM32F7 Series of microcontrollers based on the ARM Cortex-M7 32-bit core. The Discovery kit enables a wide diversity of applications to be realised, taking benefit from audio, multi- sensor support, graphics, security, video and high-speed connectivity features. The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialised add-on boards. The latest versions of the demonstration source code and associated documentation can be downloaded from the manufacturer webpage. Available with or without a TFT LCD display board.

• 216MHz STM32F769NIH6 Cortex-M7 core microcontroller with 2MB Flash memory, 532KB RAM
• RAM consists of: 368KB Data, 128KB Data TCM, 16KB Instruction TCM, 16KB L1 Cache and 4KB backup
• On-board 512Mbit quad-SPI NOR Flash memory
• On-board 128Mbit (4M x 32-bit) SDRAM
• On-board WM8994 stereo audio Codec
• 3.5mm stereo audio Line In jack socket
• 3.5mm stereo audio Line Out jack socket
• 2 x speaker outputs
• 4 x MP34DT01TR MEMS microphones on DFSDM inputs
• S/PDIF input and output on RCA jack sockets
• Reset and User pushbuttons
• MicroSD card slot
• MIPI DSI display connector
• WiFi or Ext-EEP daughterboard connector
• USB OTG HS via Micro-AB connector
• ST LINK/V2-1 via Micro-B connector
• Ethernet compliant with IEEE-802.3-2002 via RJ45 connector
• On-board ST-LINK/V2-1 supporting USB re-enumeration capability
• USB ST-LINK functions: virtual COM port, mass storage, debug port
• Power supply options: ST LINK/V2-1, USB connector, PoE, Arduino or external connector, USB charger
• Power over Ethernet (PoE) based on IEEE 802.3af standard
• +3.3V or +5Vdc power supply output for external circuits
• Arduino Uno V3 format Shield connectors
• Comprehensive free software including various examples, part of STM32Cube package
• Supported by a wide choice of integrated development environments
