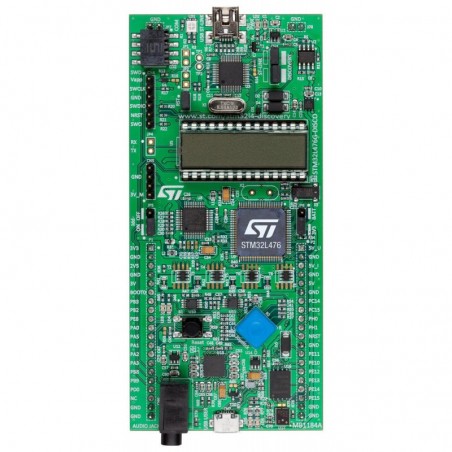

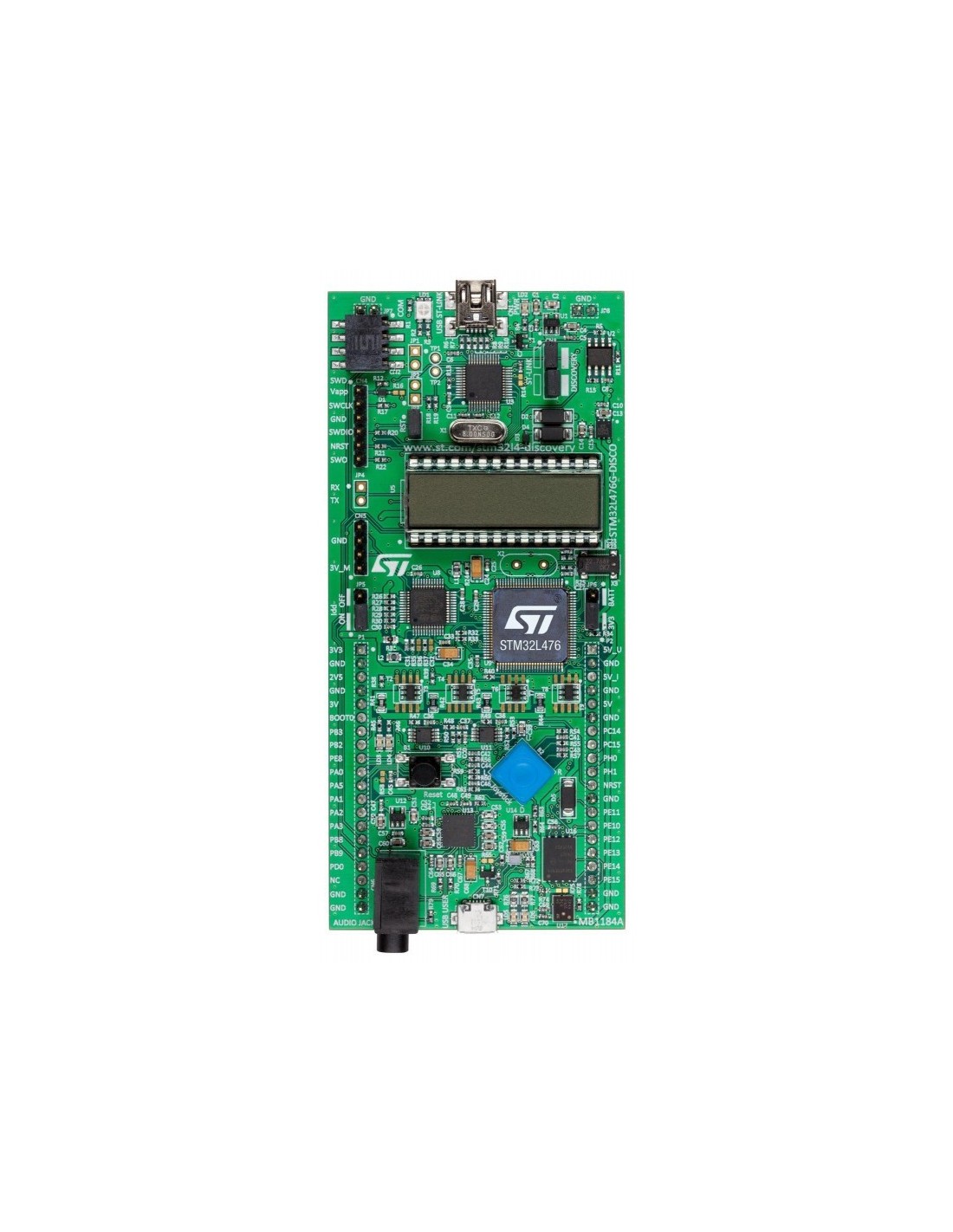

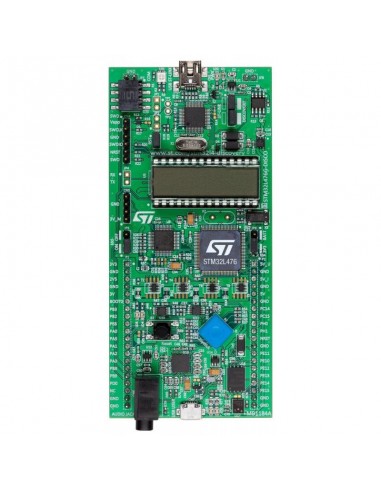

STM32L476G-DISCO M3 24 MHZ 1M 128KRAM LCD

STM32L476VGT6 microcontroller featuring 1 Mbyte of Flash memory, 128 Kbytes of RAM in LQFP100 package  On-board ST-LINK/V2-1 supporting USB reenumeration capability  Three different interfaces supported on USB: – Virtual com port – Mass storage – Debug port  Mbed-enabled (mbed.org)  LCD 24 segments, 4 commons in DIP 28 package  Seven LEDs: – LD1 (red/green) for USB communication – LD2 (red) for 3.3 V power on – LD3 Over current (red) – LD4 (red), LD5 (green) two user LEDs – LD6 (green), LD7 (red) USB OTG FS LEDs  Pushbutton (reset)  Four directions Joystick with selection  USB OTG FS with micro-AB connector  SAI Audio DAC, Stereo with output jack  Digital Microphone MEMS Accelerometer and magnetometer Mems  Gyroscope MEMS  128-Mbit Quad-SPI Flash memory  MCU current ammeter with 4 ranges and auto calibration  Connector for external board or RF-EEPROM  Four power supply options: – ST-LINK/V2-1 – USB FS connector – External 5 V – CR2032 battery (not provided)  Extension connectors 
