STM32L0538-DISCOVERY - E-PAPER M0 32MHZ USB LCD ULP

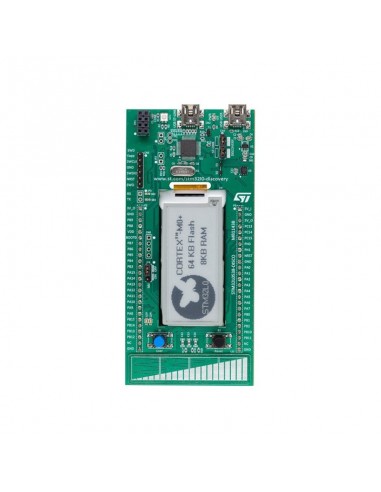

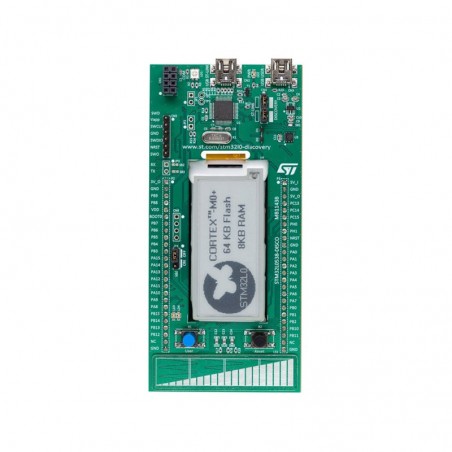

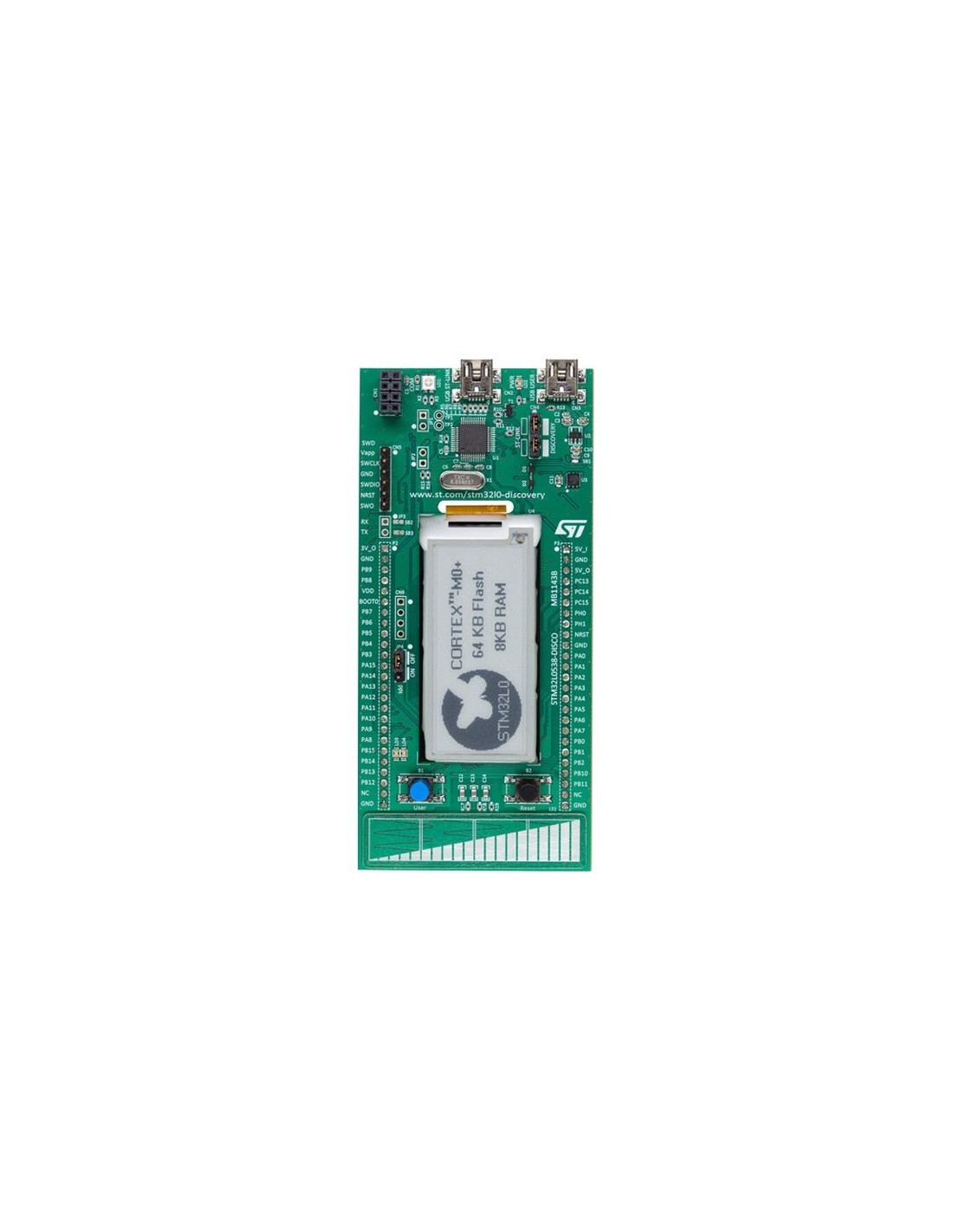

The 32L0538DISCOVERY board helps you to discover the ultra-low-power microcontrollers of the STM32 L0 series.

Overview

This board offers everything required for beginners and experienced users to get started quickly and develop applications easily.

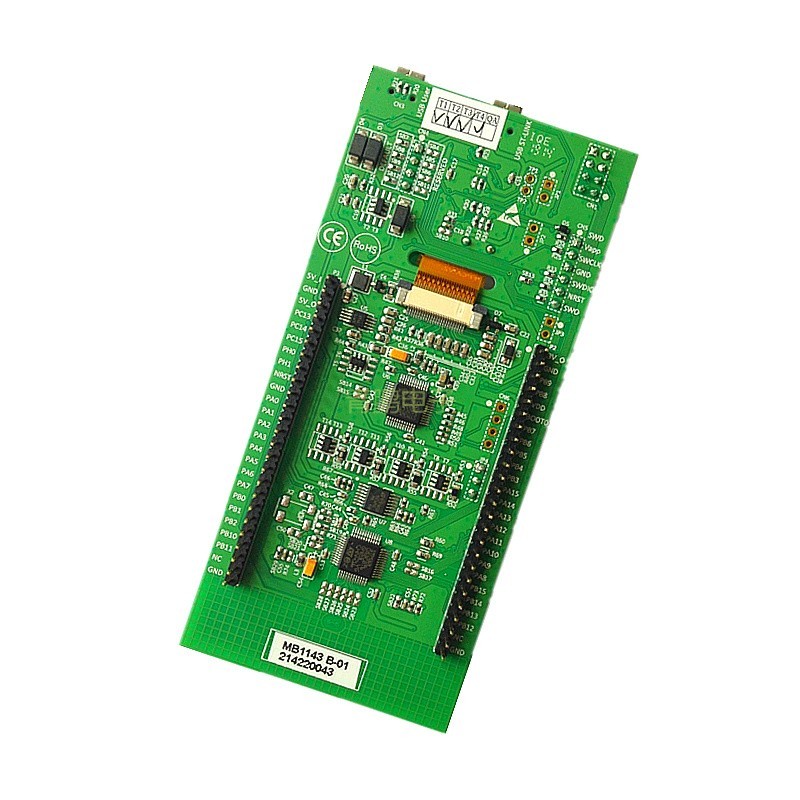

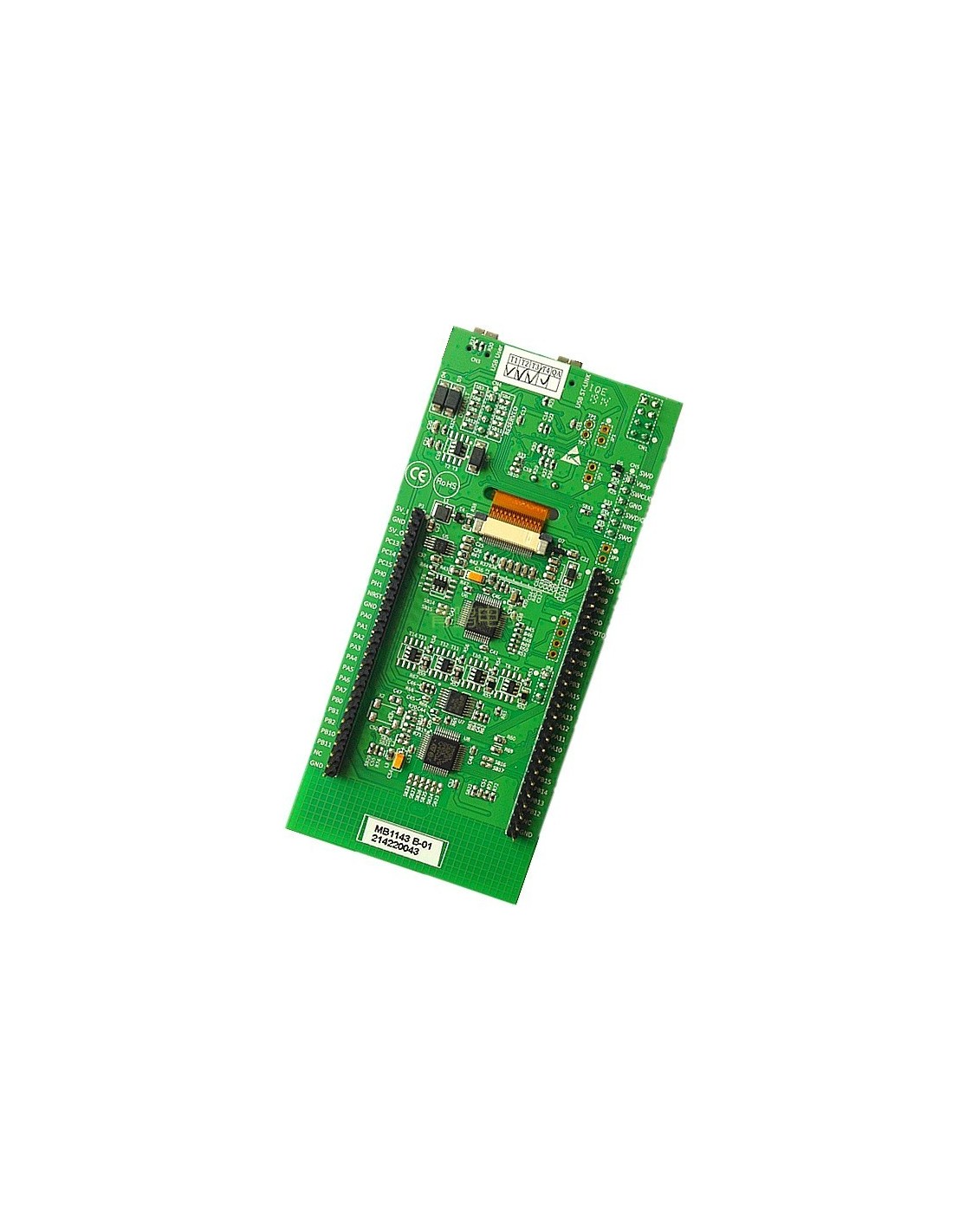

Based on an STM32L053C8T6, it includes an ST-LINK/V2-1 embedded debug tool interface, linear touch sensor, touch keys, IDD current measurement, 2.04” E-paper display, NFC connector for PLUG-CR95HF-B board, LEDs, pushbuttons and a USB mini-B connector.

Microcontroller features

• STM32L053C8T6 in LQFP48 package
• ARM®32-bit Cortex®-M0+ with MPU
• 32 MHz max CPU frequency
• VDD from 1.65V to 3.6 V
• 64 KB Flash
• 8 KB SRAM
• GPIO (xx) with external interrupt capability
• 12/16-bit ADC with 16 channels
• 12-bit DAC (1)
• USART (2)
• UART (1)
• Timer (5)
• I2C (2)
• SPI (2)
• USB 2.0 full-speed
• LCD driver

Board features

• On-board ST-LINK/V2-1 debugger/programmer with SWD connector
  • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
• Flexible board power supply
  • USB VBUS or external source (5 V)
  • Power management access point
• Two user LEDs: LD3 (green) and LD4 (orange)
• Two push buttons: USER and RESET
• USB re-enumeration capability: three different interfaces supported on USB
  • Virtual Com port
  • Mass storage (USB Disk drive) for drag'n'drop programming
  • Debug port
