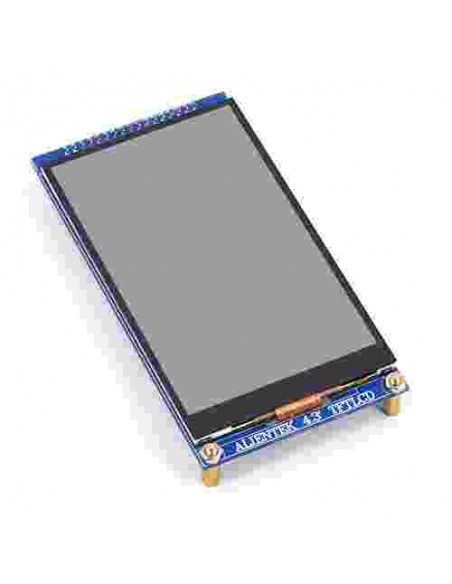

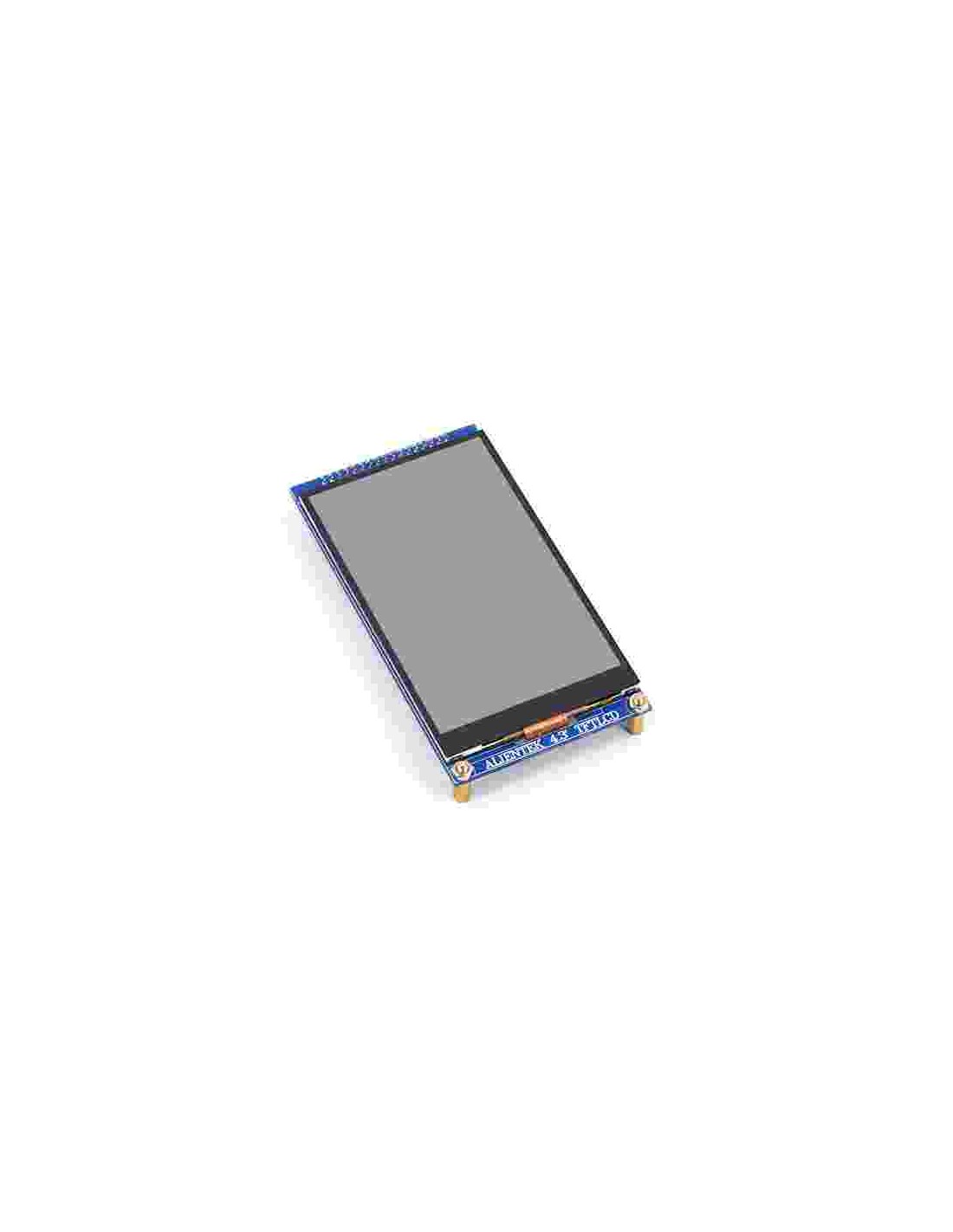

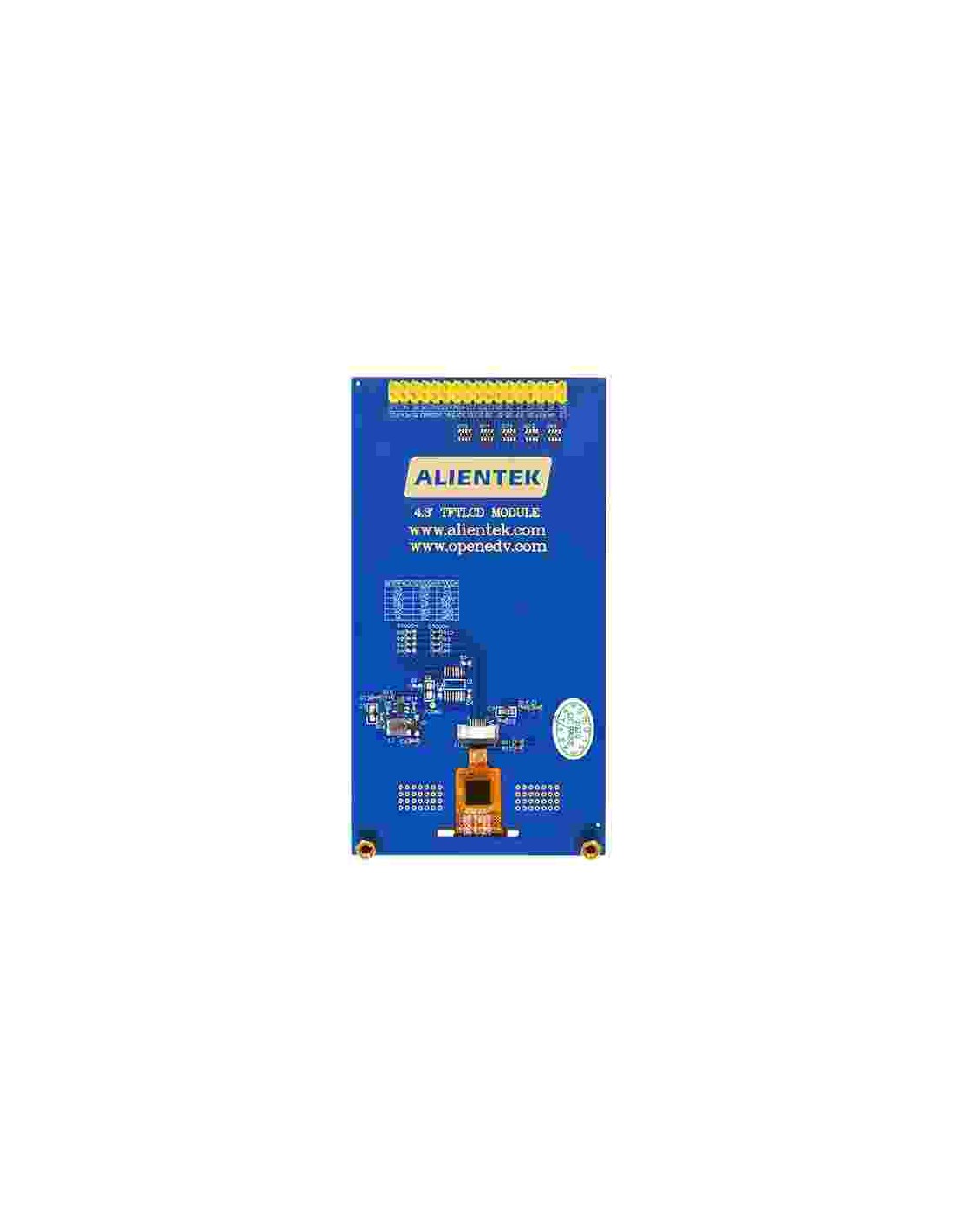

Alientek 4.3 inch TFT v 1.4 800x 480 Intel 8080 16 bit parallel GT911 Capacitive

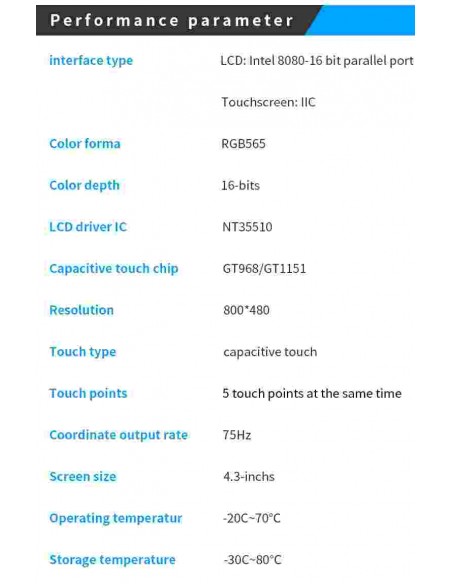

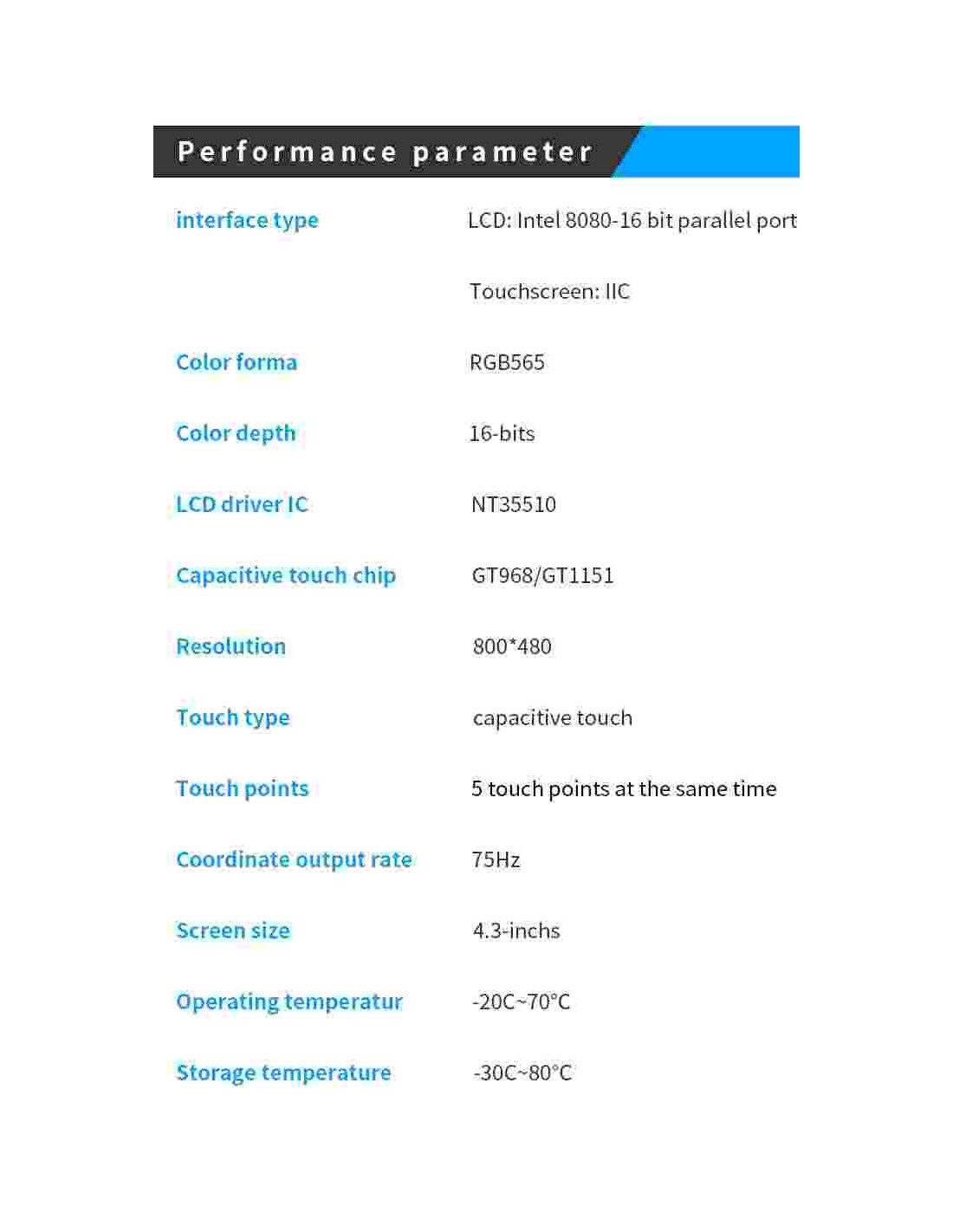

Product parameter：

Type of interface: LCD: lntel8080-16-bit parallel port | touch screen: IIC

Color format: RGB565

Color depth: 16 bits

LCD driver chip: NT35510

Capacitive touch chip: GT968/GT1151

LCD resolution: 800*480

Touch screen type: capacitive touch

Touch points: touch at 5 points at the same time

Output rate of coordinates: 75Hz

Screen size: 4.3 inches

Working temperature: -20℃~70℃

Storage temperature: -30℃~80℃

Product features：

• The screen resolution of the module is 800 * 480, with 16-bit true color display
• Self-contained driver, no additional driver, single chip microcomputer directly used
• Faster speed, theoretically, the screen speed can reach 78.9 frames/second
• Capacitive touch screen is used to support 5-point simultaneous touch control
• On-board backlight circuit only needs 3.3V&5V power supply, without external high voltage

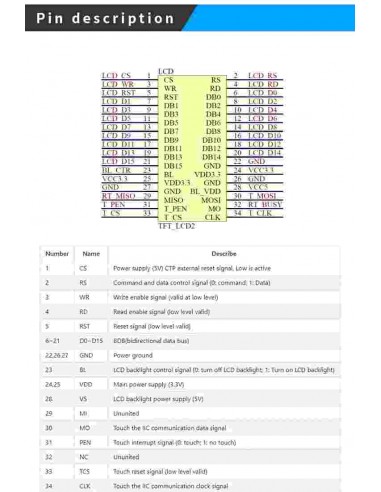

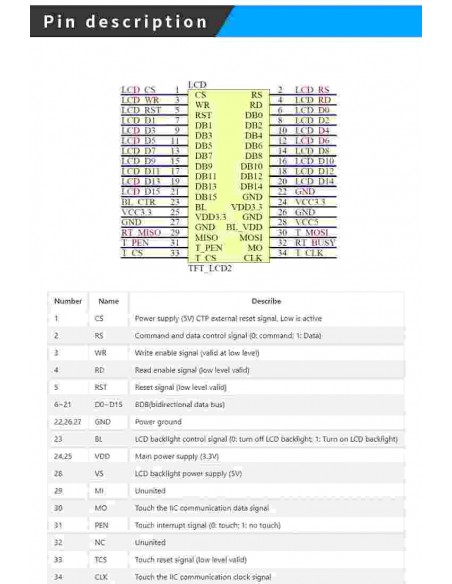

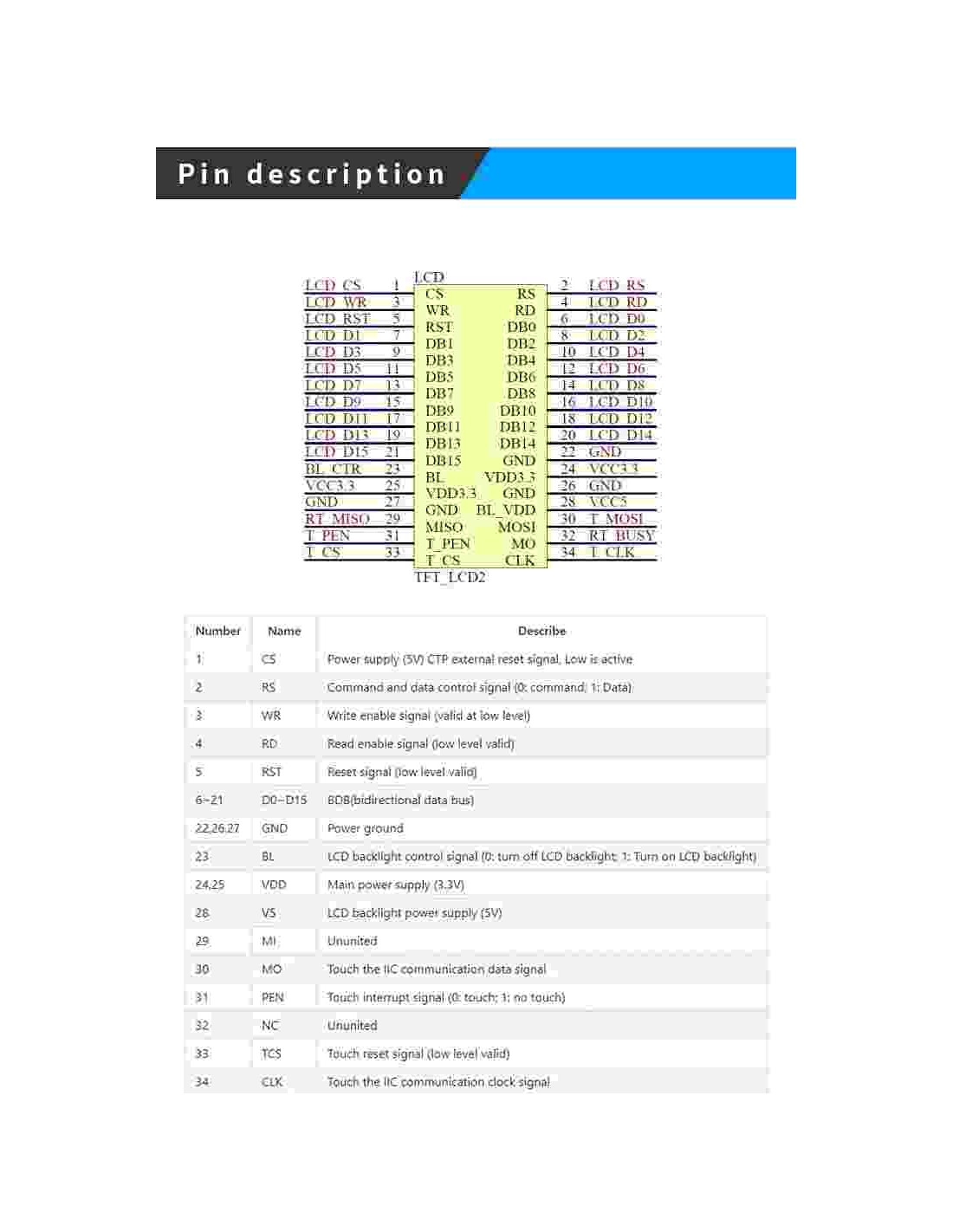

• Simple interface (LCD adopts 16-bit 8080 parallel port, touch screen adopts IIC interface)
• Processing with brand-new components, pure copper gold-plated needles
• Excellent PCB materials, gold deposition process, stable and reliable
• Humanized design, each interface is marked with silk screen, which can be used at a glance

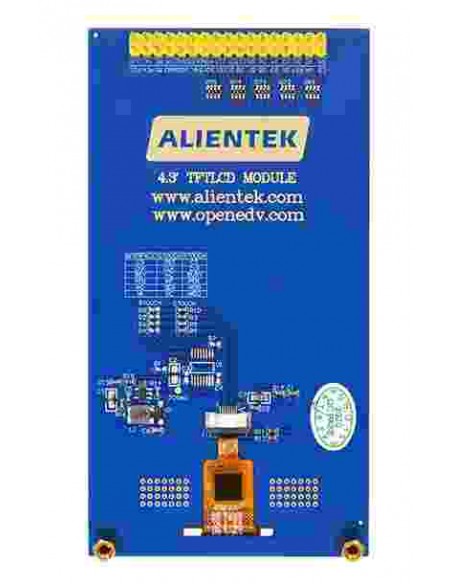

• PCB size is 62.25mm*117.5mm with mounting holes
