STM32F407IGT6 Core407I Waveshare

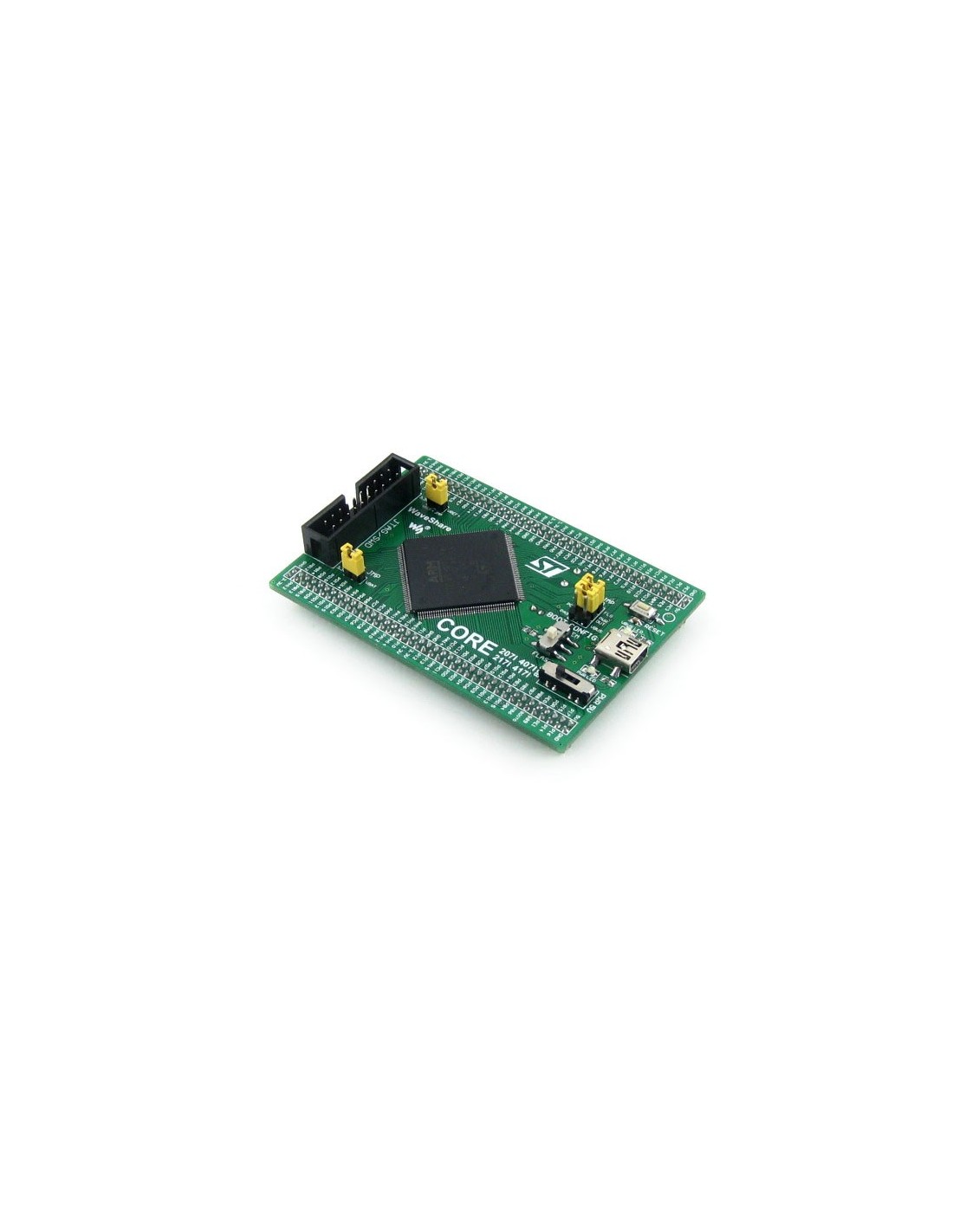

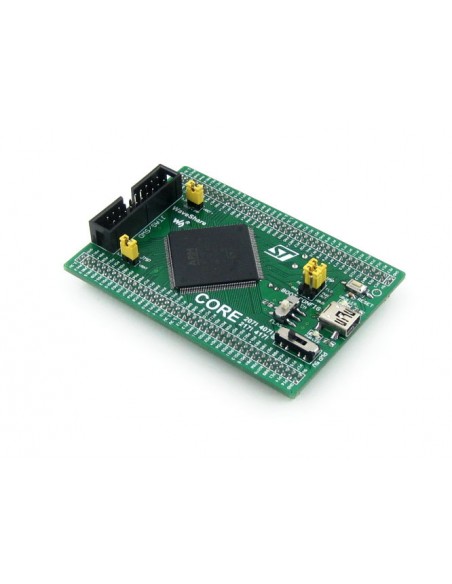

Core407I is a small STM32 development board that features an STM32F407IGT6 device as the microcontroller, supports further expansion. It is ideal for starting application development with STM32F family.

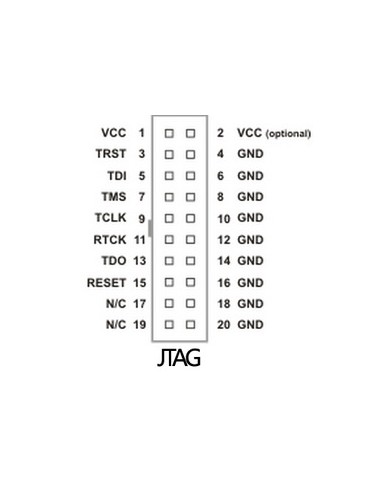

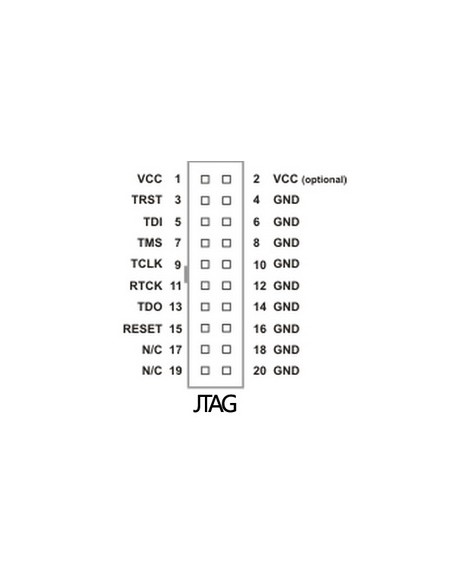

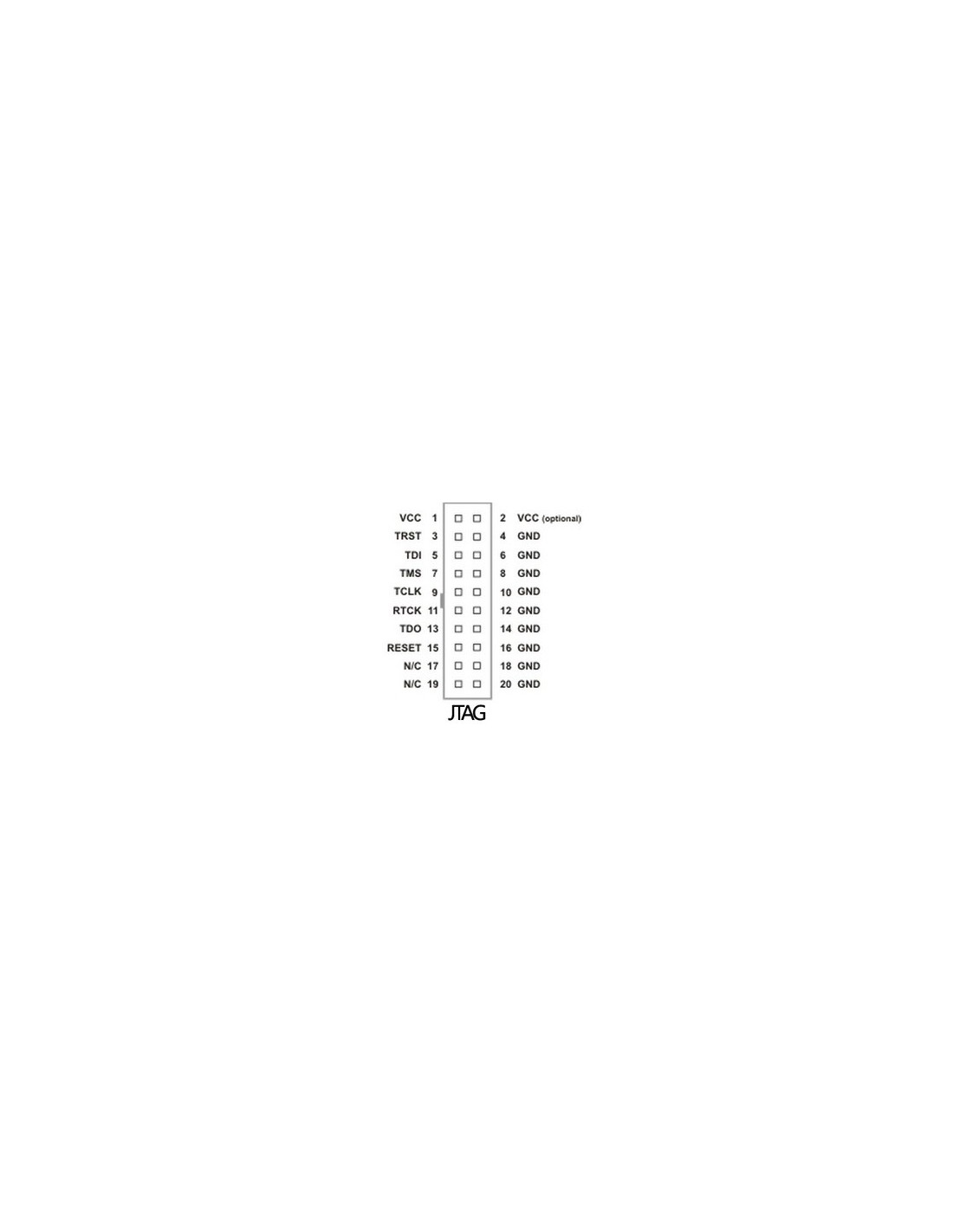

As a minimal ready-to-run system, the Core407I integrates USB communication interface, JTAG/SWD programming/debugging interface, clock circuit, USB power management, boot mode selection, and so on.

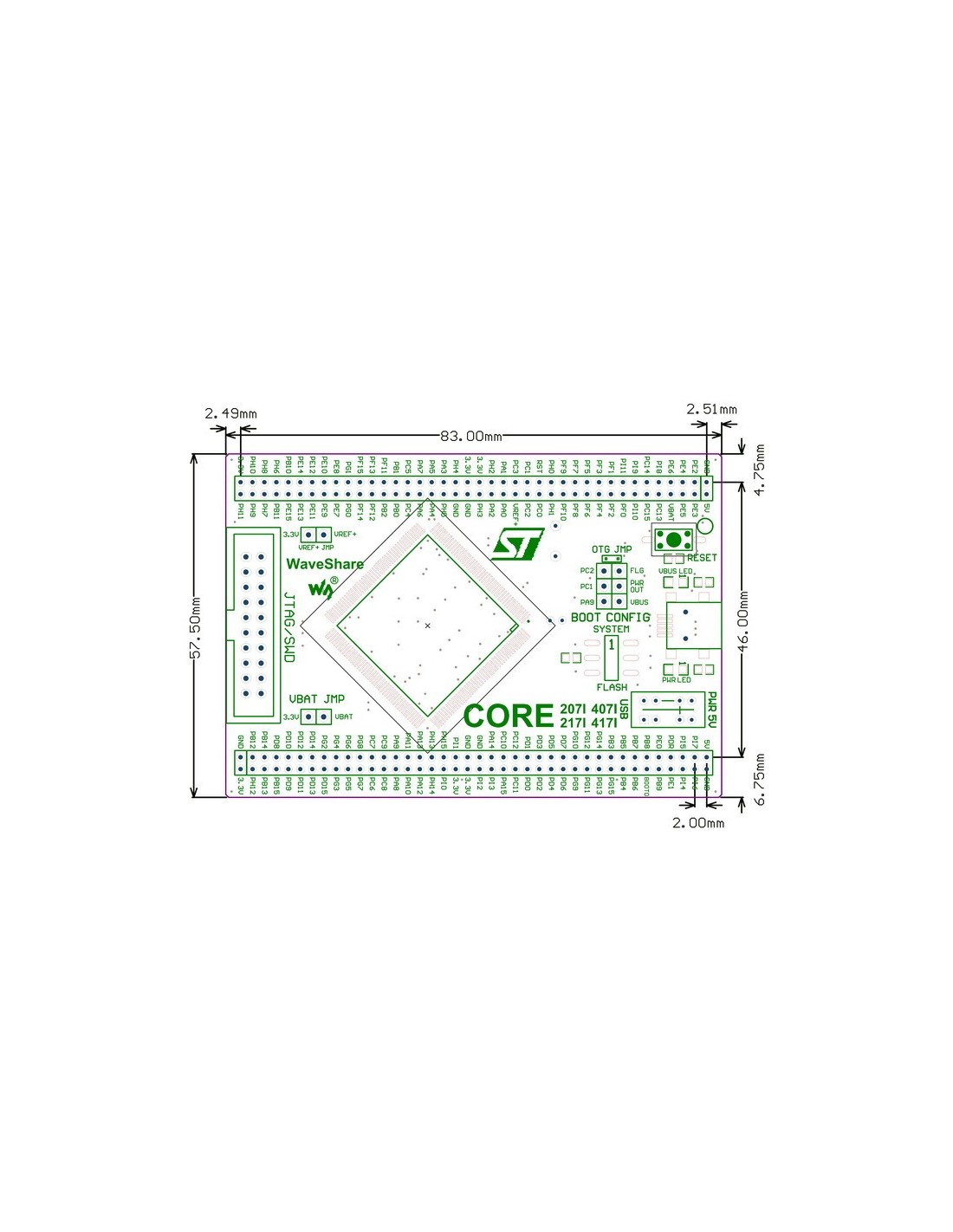

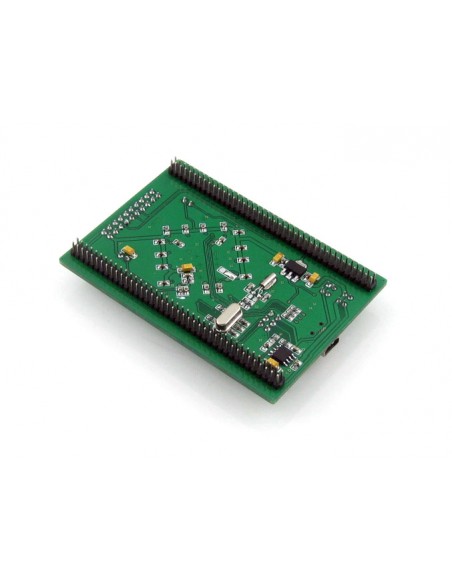

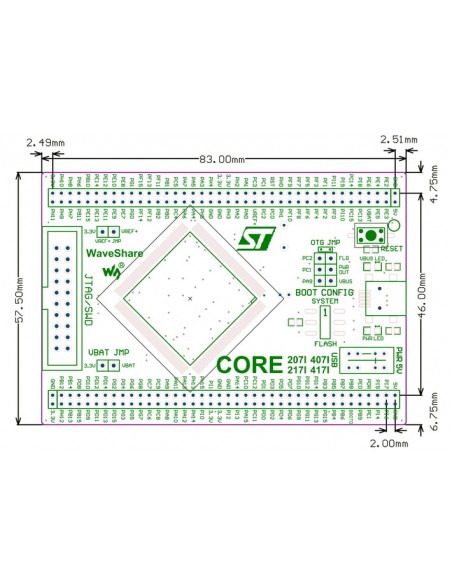

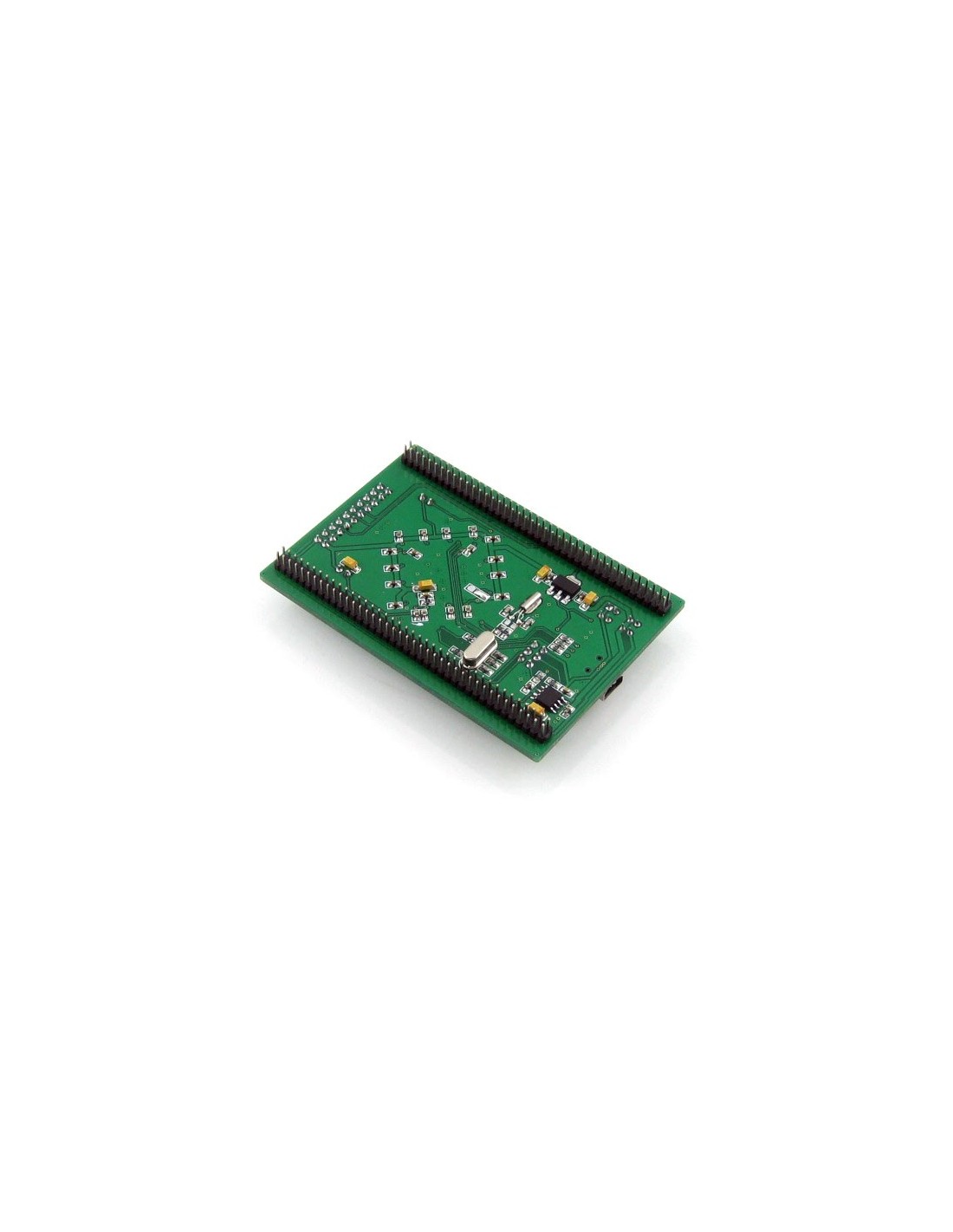

Furthermore, pin headers on the backside allow the Core407I to be plugged-in your application board and act as the MCU core circuit in your system. All the I/O ports are accessible on the pin headers, and the header pitch is designed as 2.0mm to achieve smaller pcb size.
