LCD12864 SHIELD FOR ARDUINO DFROBOT
LCD12864 SHIELD FOR ARDUINO DFROBOT
LCD12864 SHIELD FOR ARDUINO DFROBOT
LCD12864 SHIELD FOR ARDUINO DFROBOT

LCD12864 SHIELD FOR ARDUINO DFROBOT

Out-of-Stock
$0.00

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

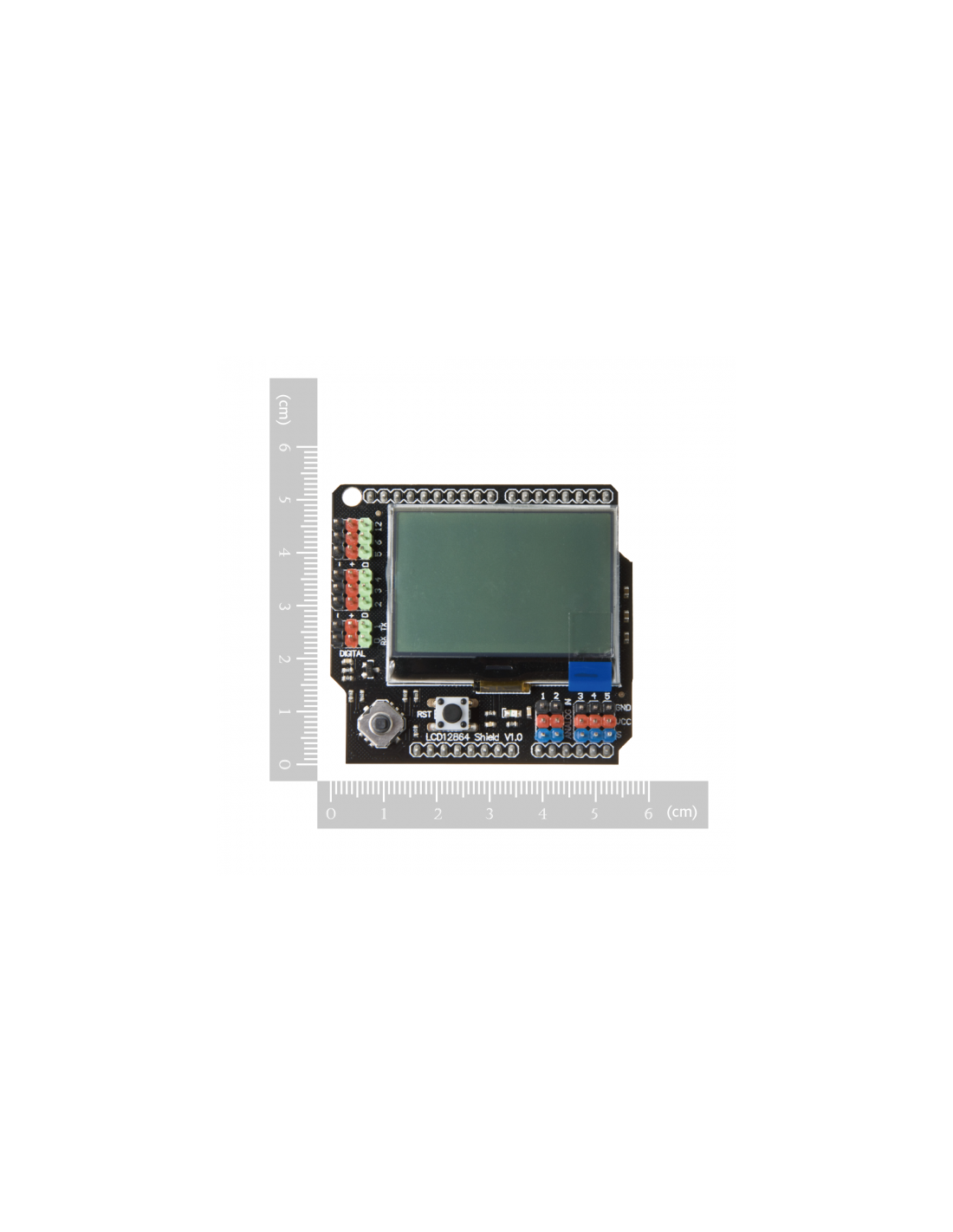

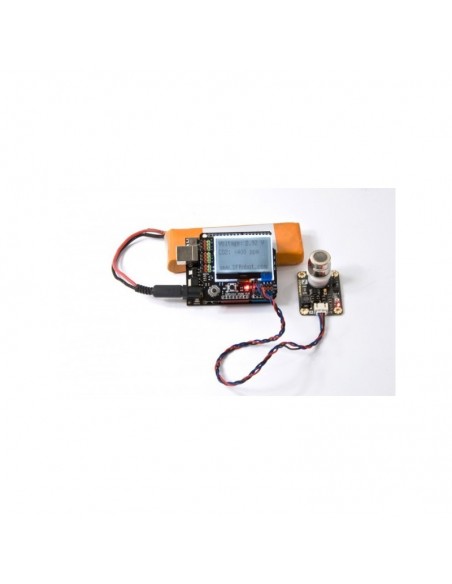

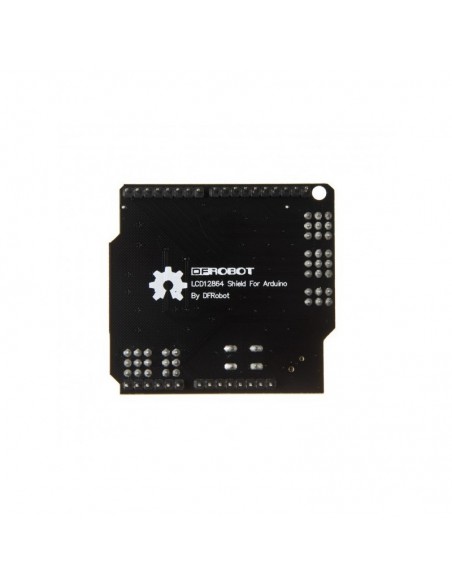

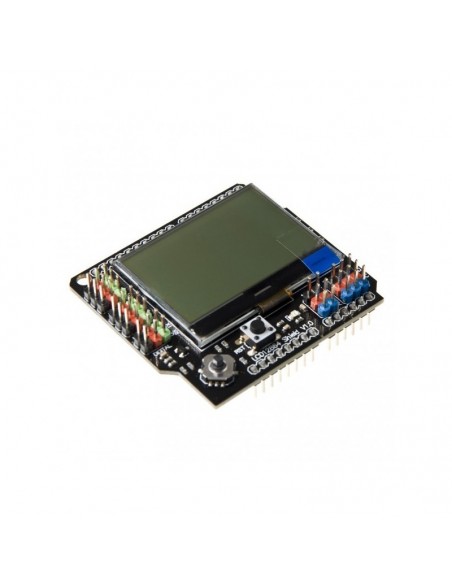

This framed LCD12864 Shield with LED backlight is compatible with most of Arduino controllers and supports English/Chinese/Picture display. With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.

Specification
  • Power supply: 3.3V
  • Pin used: D7, D8, D9, D10, D11, D13, A0
  • Reset button
  • 5 degree joystick (using Arduino Analog Pin 0)
  • Backlit control (using Arduino Digital Pin 7)
  • Extra 5 Analog pins & 8 Digital pins

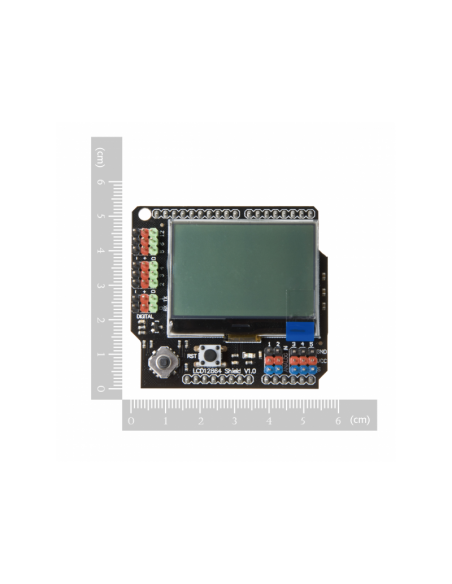

  • Size:60x55x20mm
Shipping List
  • LCD12864 Shield  (1 unit)
