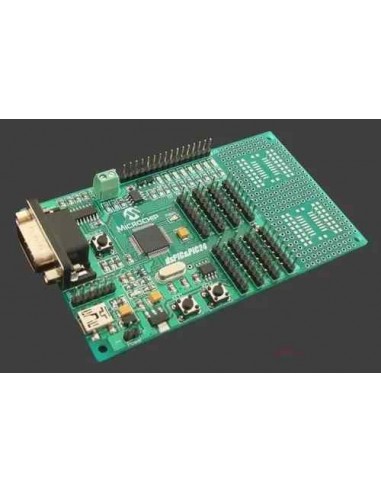

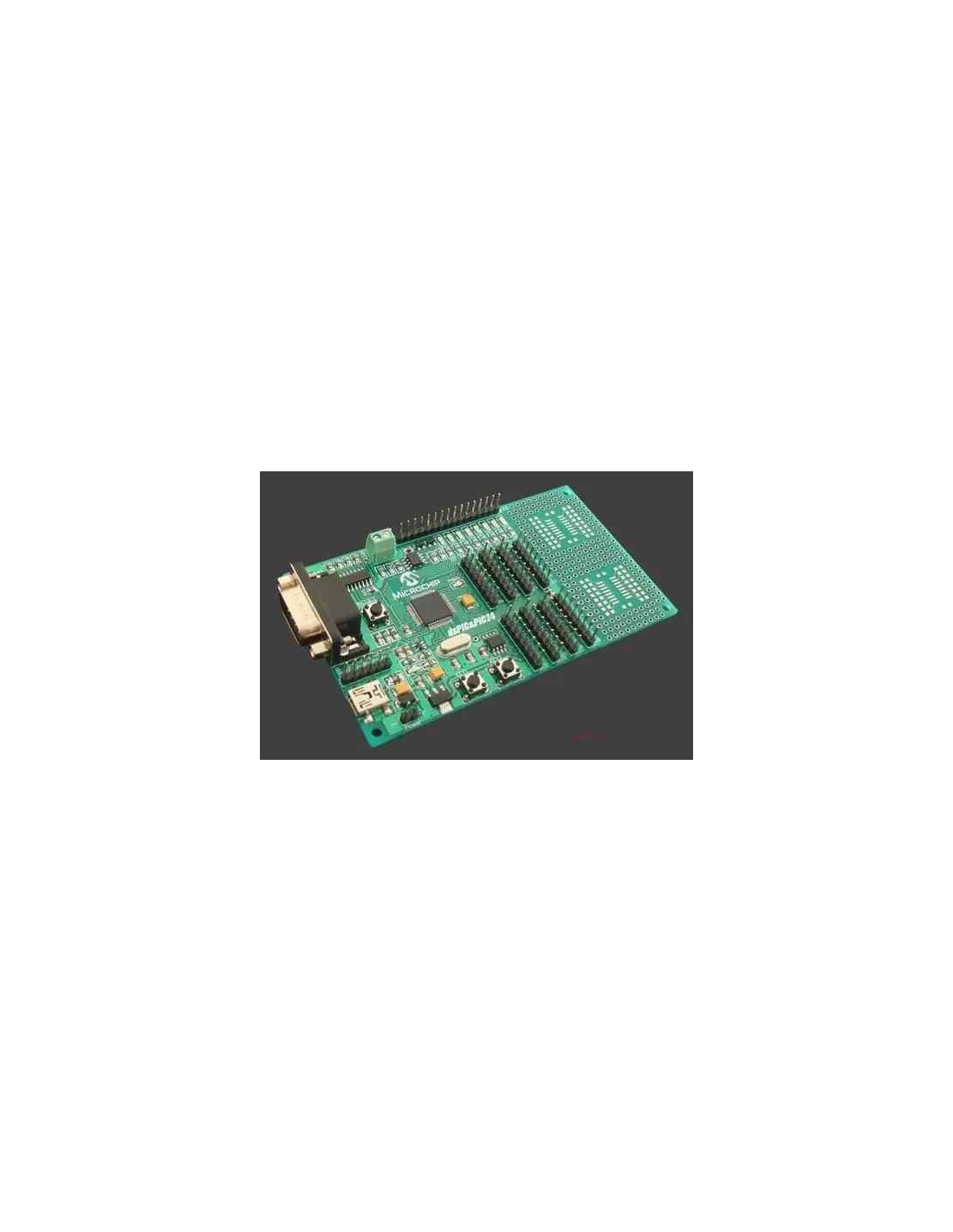

dsPIC33FJ128MC706 single-chip CAN motor PIC

Onboard chip: dsPIC33FJ128MC706 -I/PT

Dimensions:

112 * 64 mm

Chip features:

Up to 53 I/O ports

2 serial ports UART

2 SPI modules

2 I2C modules

1 quadrature encoder

1 CAN bus transceiver

8-way PWM motor control

16-channel 10-bit ADC can be configured as 12-bit AD, multi-channel simultaneous sampling function

Input capture function

Port level change interrupt

Internal watchdog

9 16-bit timers can be combined into 32-bit timers

Maximum execution speed 40MIPS/sec, instruction cycle 25nS

16K RAM, 128K FLASH, 2K DMA

Onboard resources:

1 CAN bus transceiver

8-way PWM motor control

1 PWM output LED indicator

1 standard RS232 serial port

8 Green SMD LED indicator

1 external crystal oscillator (standard 4MHZ) can be multiplied internally

1 LCD interface with backlight control 128*64 dot matrix small screen

1 ADC input (connected to temperature sensor)

1 temperature sensor (MCP9700A)

1 24LC64 EEPROM, can be used for I2C experiment

1 reset circuit and reset button

2 buttons with level change interrupt function

1 power interface and protection circuit

1 power indicator

1 MINI USB power interface with short circuit protection function

1 ICSP debugging and burning interface

2 SOP self-soldering areas, can realize DIY experiment

53 I/O pins are all led out

Onboard voltage conversion module, external power supply voltage range DC5V-12V
