AdvanceD Ethernet Development Board - PIC24FJ256GB106DB-DP11115

Brief Introduction:

• This demo board provides the easiest and a cost-effective method of evaluating and developing Ethernet control applications using PIC24FJ256GB106 and the 28-pin ENC28J60 Ethernet controller which interfaces to the RJ-45 female connector.

• This demo board can also be used to demonstrate the function of PIC24 Storage Demo Board(Product Number: DB-DP11122) by Sure. There’s a little bit difference in hardware between these two demo boards and modified program will be provided, which can be directly used.

• Net weigt:260g / 9.2oz

Features:

• Size: 120.60 (L) × 96.70(W) × 24.70(H) ±0.2mm
• Powered by miniB USB cable
• Save webpages in a USB Flash Disk
• Support dynamic page display
• Compatible with PIC24 Storage Demo Board
• Web-based status monitoring
• Web-based LEDs control
• 1602 characters display

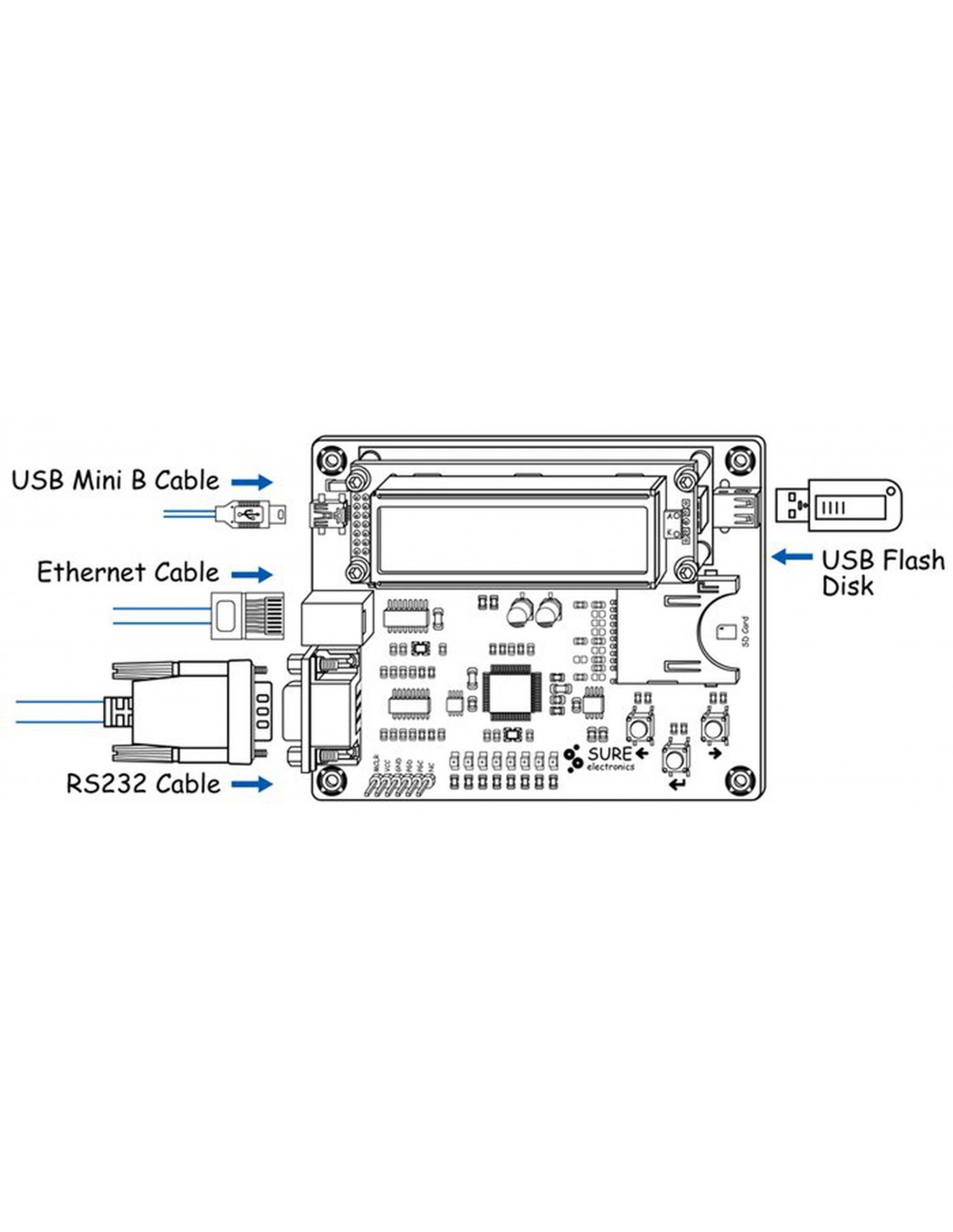

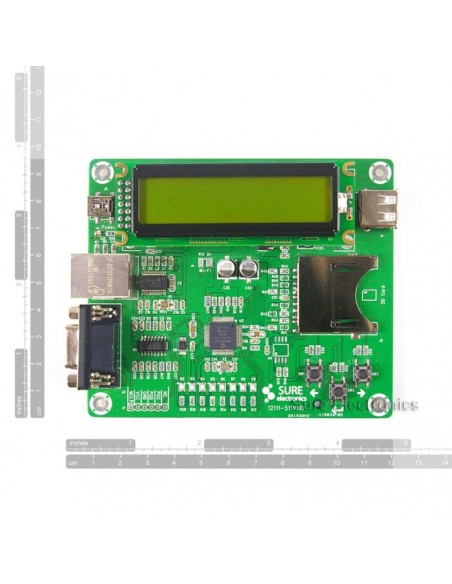

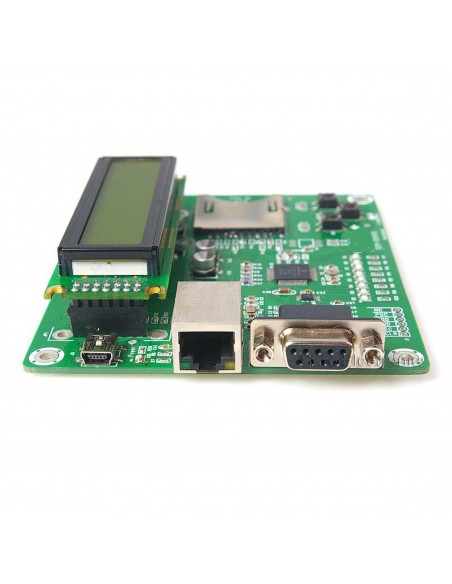

Hardware:

• PIC24FJ256GB106 IC
• ENC28J60 Ethernet controller
• 1602 LCD display
• USB A socket – for USB Flash Disk
• Eight LED indicators
• USB miniB port – for powering
• RJ-45 female connector – for networking
• DB-9 female port – communication
• SD card socket – SD card
• Three tactile switches
