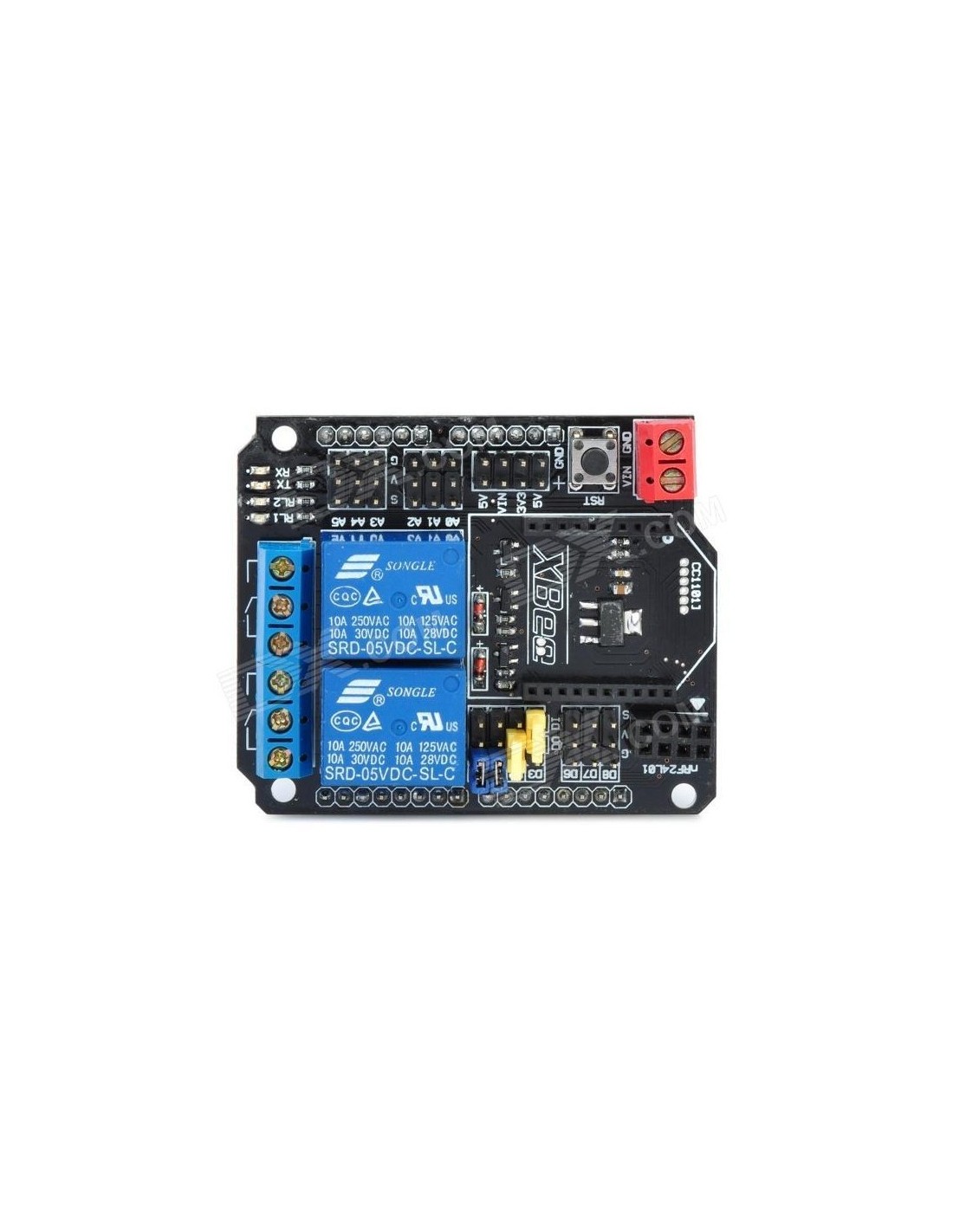

2 CHANNEL RELAY SHIELD FOR ARDUINO (WITH NRF24L01 XBEE/BTBEE INTERFACE )

Out-of-Stock
$0.00



Fashion has been creatinghe Relay shield is capable of controlling 2 relays. The max switching power could be 10A/250VAC or 10A/30VDC. It could be directly controlled by Arduino/Freaduino through digital IOs with external 9v supply. With buildinxbee/BTBee type socket, it can be wirelessly controlled via Xbee/BTBee(HC-06). Make it an ideal solution for home automation and robotics purpose.

Feature

  • 2 channel Relay
  • With XBBee/BTBee, CC1101 and nRF24L01 wireless interface
  • Wiht 6 sensor and 3 servo interface
  • Native Arduino/Freaduino compatibility
  • Equipped with screw holes for easy installation

http://www.elecfreaks.com/wiki/index.php?title=2_channel_Relay_Shield_For_Arduino_(With_XBee/BTBee_interface)
