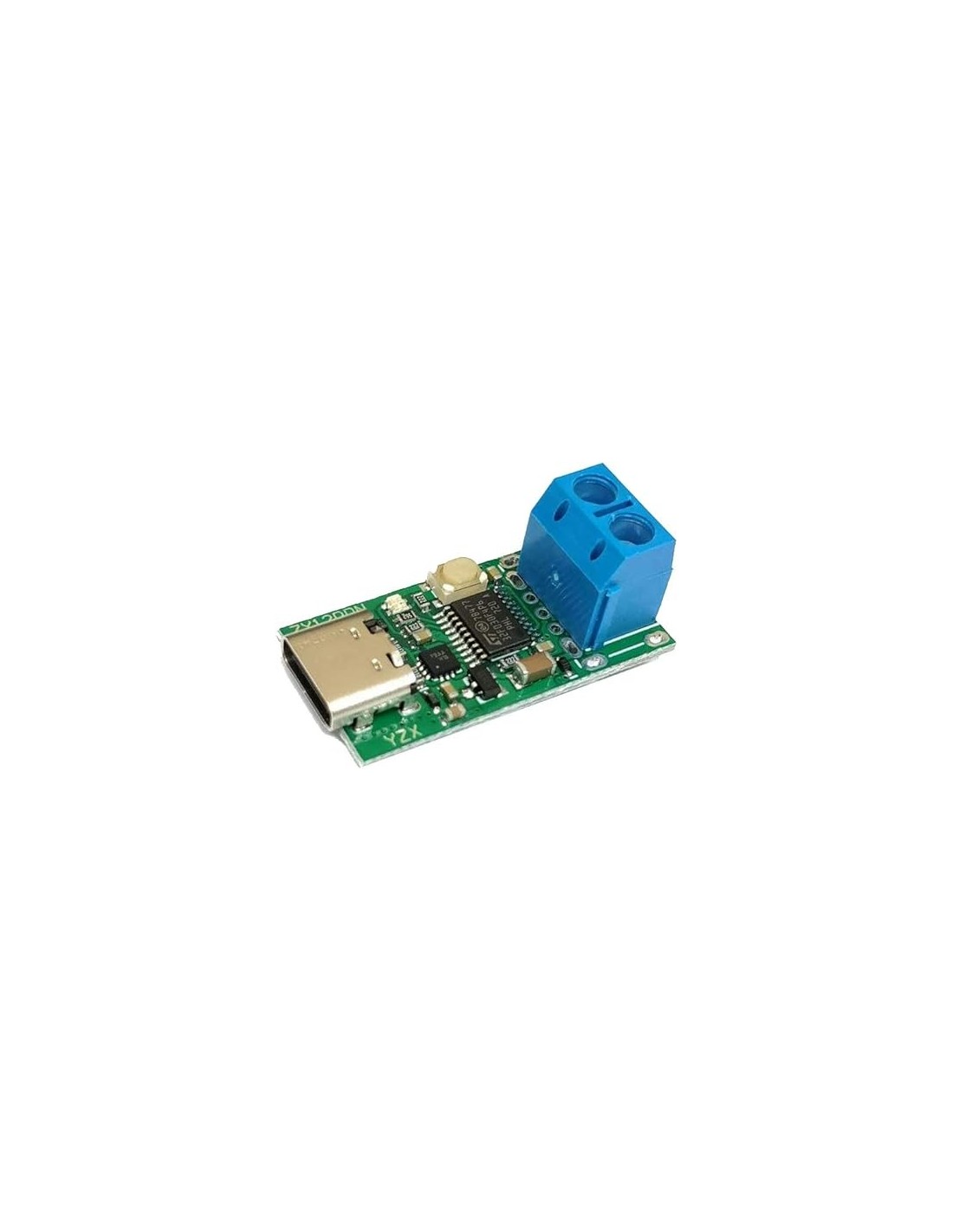

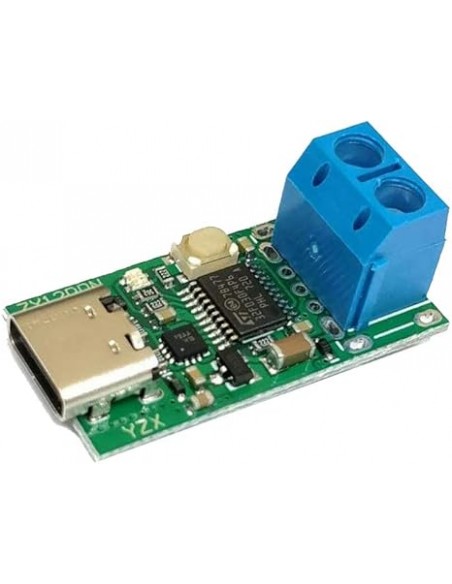

ZY12PDN YZXStudio is a trigger module - tester for fast USB chargers supporting Power Delivery PD2.0 PD3.0 technology. The standard voltage value at the output of the USB charger is 5.0V. To test, use higher voltages at the output of such a charger, it is necessary to connect a device such as a smartphone, power bank, tablet supporting PD technology to charge. If we want to test such a charger, without "appropriate load" the voltage measurement will always be 5.0V. Using the offered electronic voltage trigger module, we can check and measure higher output voltages. You can also try to use the PD2.0 / PD3.0 fast charger and the trigger as a universal plug-in power supply for other electronic devices: a laptop power supply, a soldering iron power supply, etc.

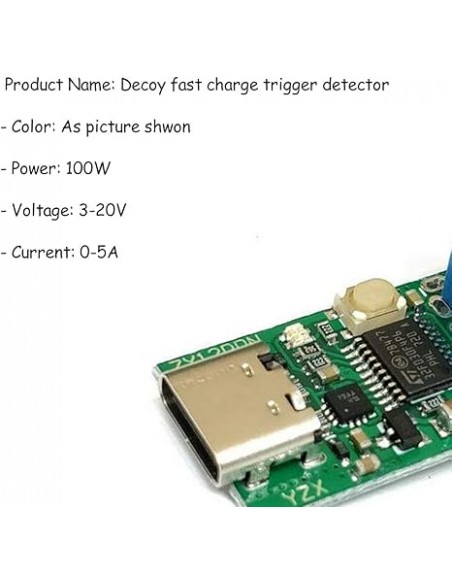

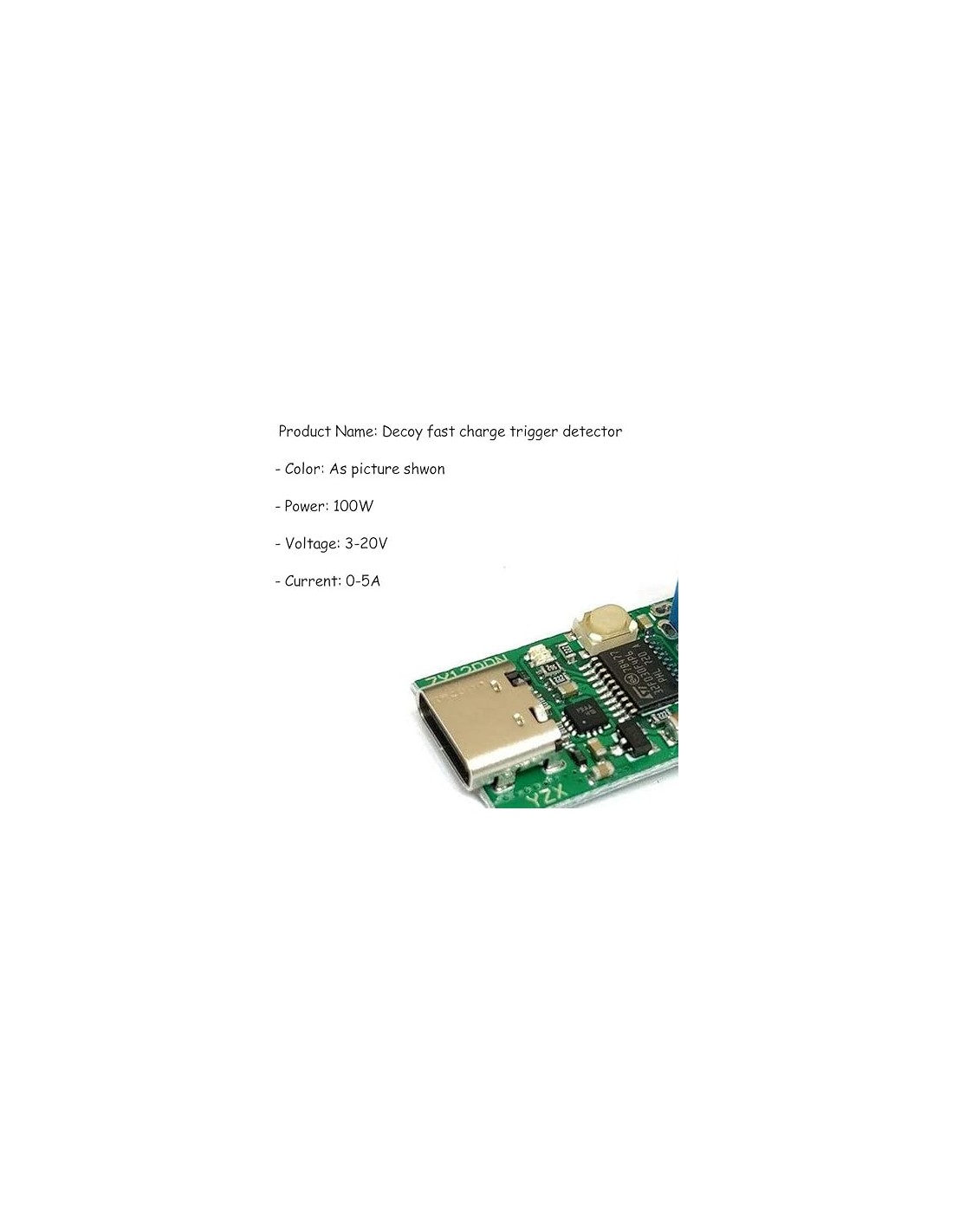

technical data:
- voltage tester trigger module for USB fast chargers
► model ZY12PDN YZXStudio - supports all USB PD2.0 PD3.0 Fast Charging chargers
- Output voltage range: 5V to 20V
- output current range: 0 to 5A
- maximum power: up to 100W
- input connector: USB type C socket
- output connector:

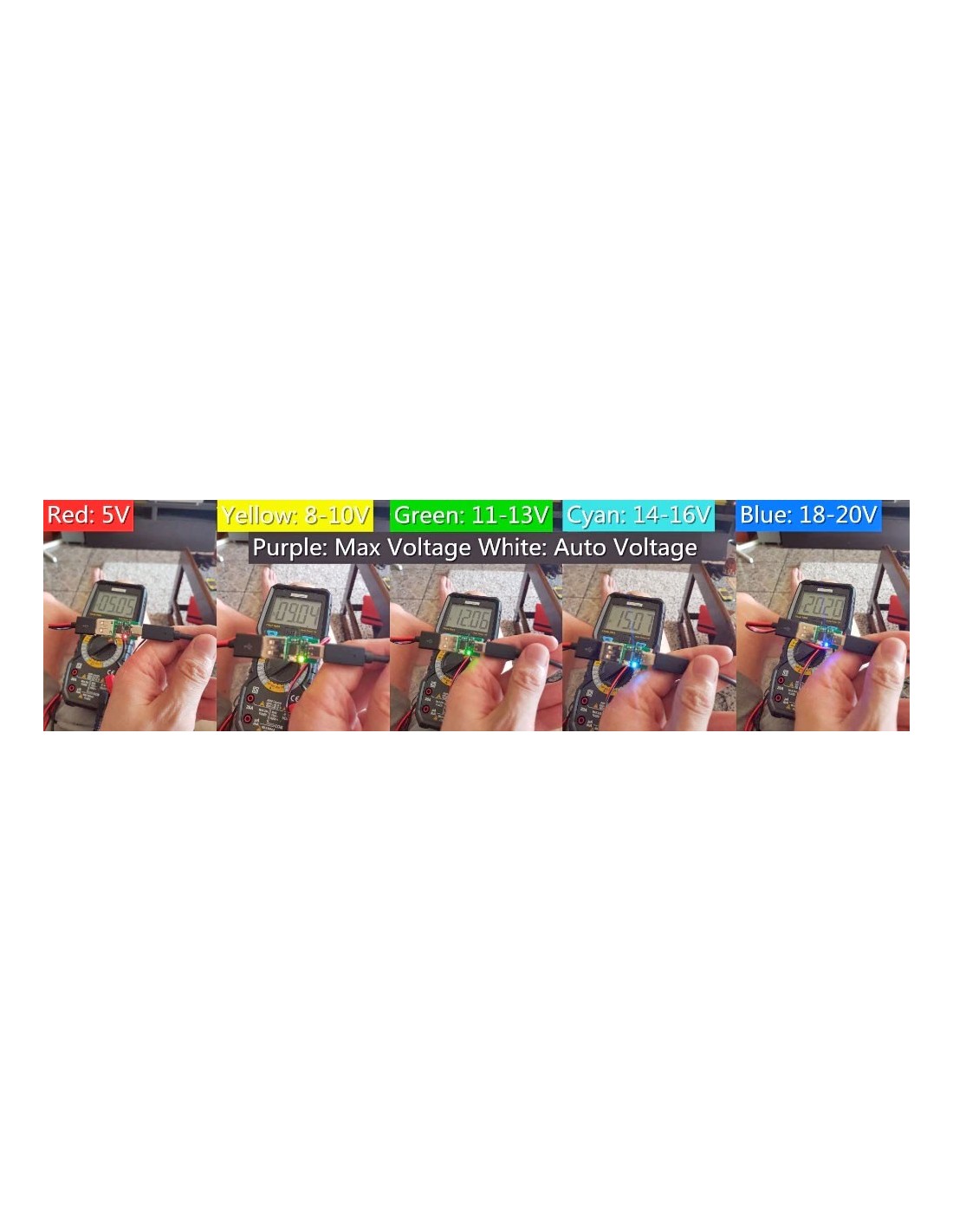

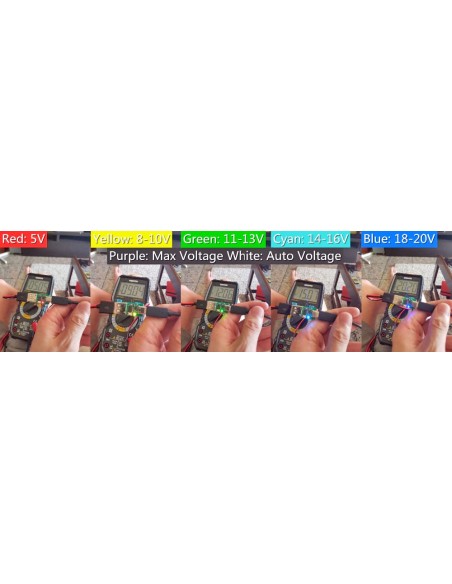

solder pads for soldering wires or screw connector ARK2 5.08m - LED indicator of the output voltage range:
► 5V - the diode lights up in red
► 9V - the diode lights up in yellow
► 12V - the diode lights up in green
► 15V - the diode lights up in cyan
► 20V - the diode lights up in blue
► purple: maximum voltage
► white: automatic voltage - Japan ALPS control button
- overvoltage and reverse connection prevention - TVS diode
- large capacity ceramic filter
- assembly of SMD electronic components
- USB adopts PAL 5A high current base with low interna
