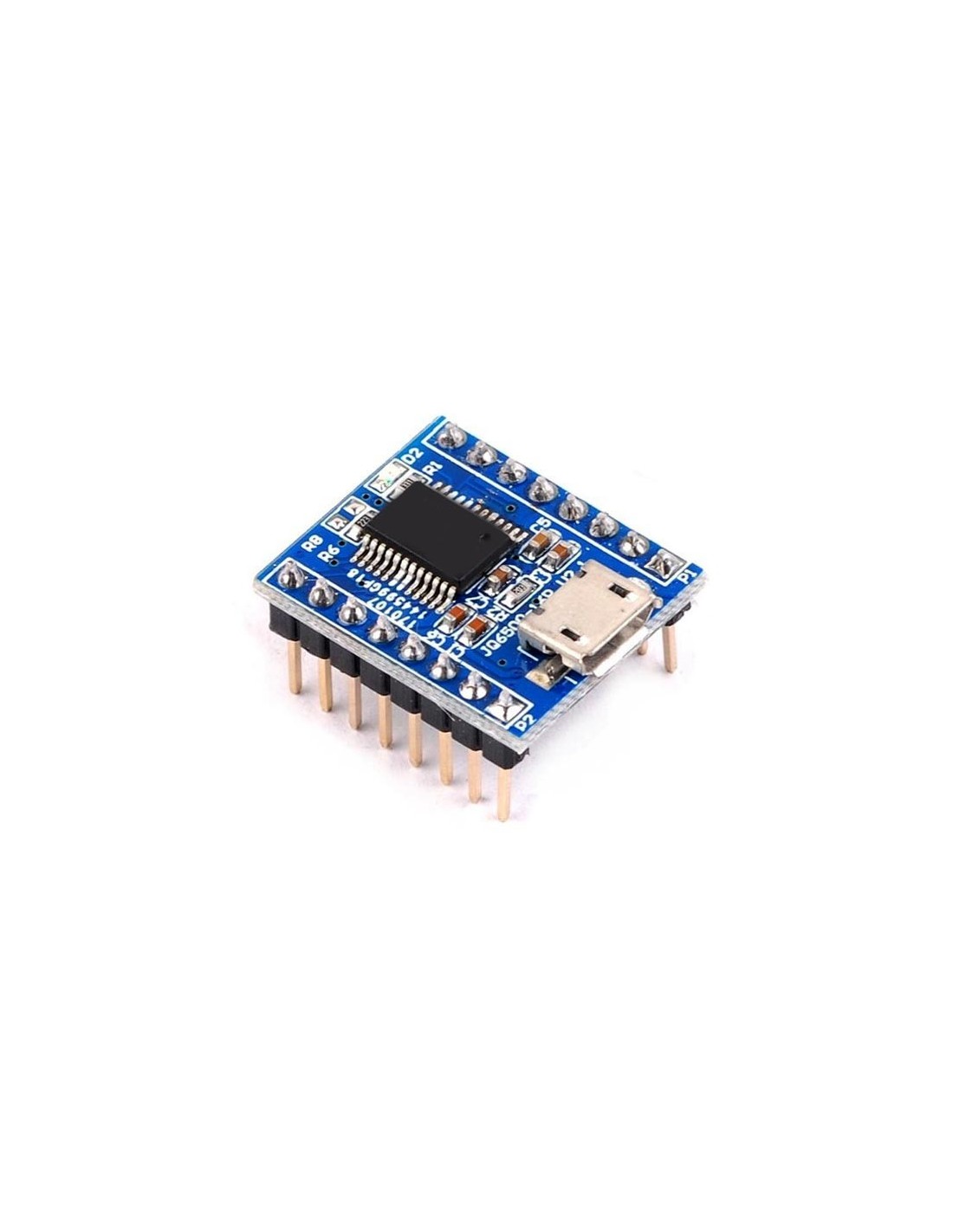

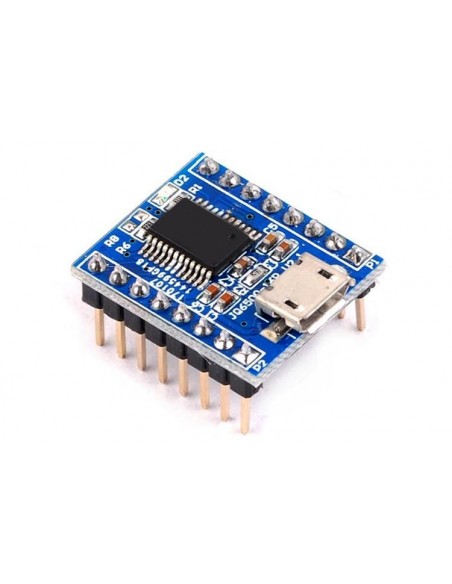

JQ6500 MP3 Player

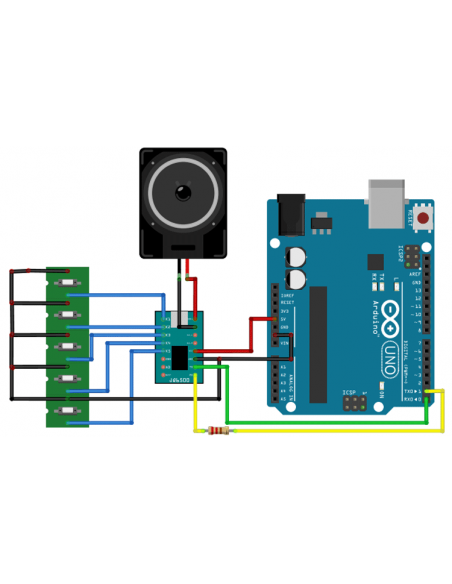

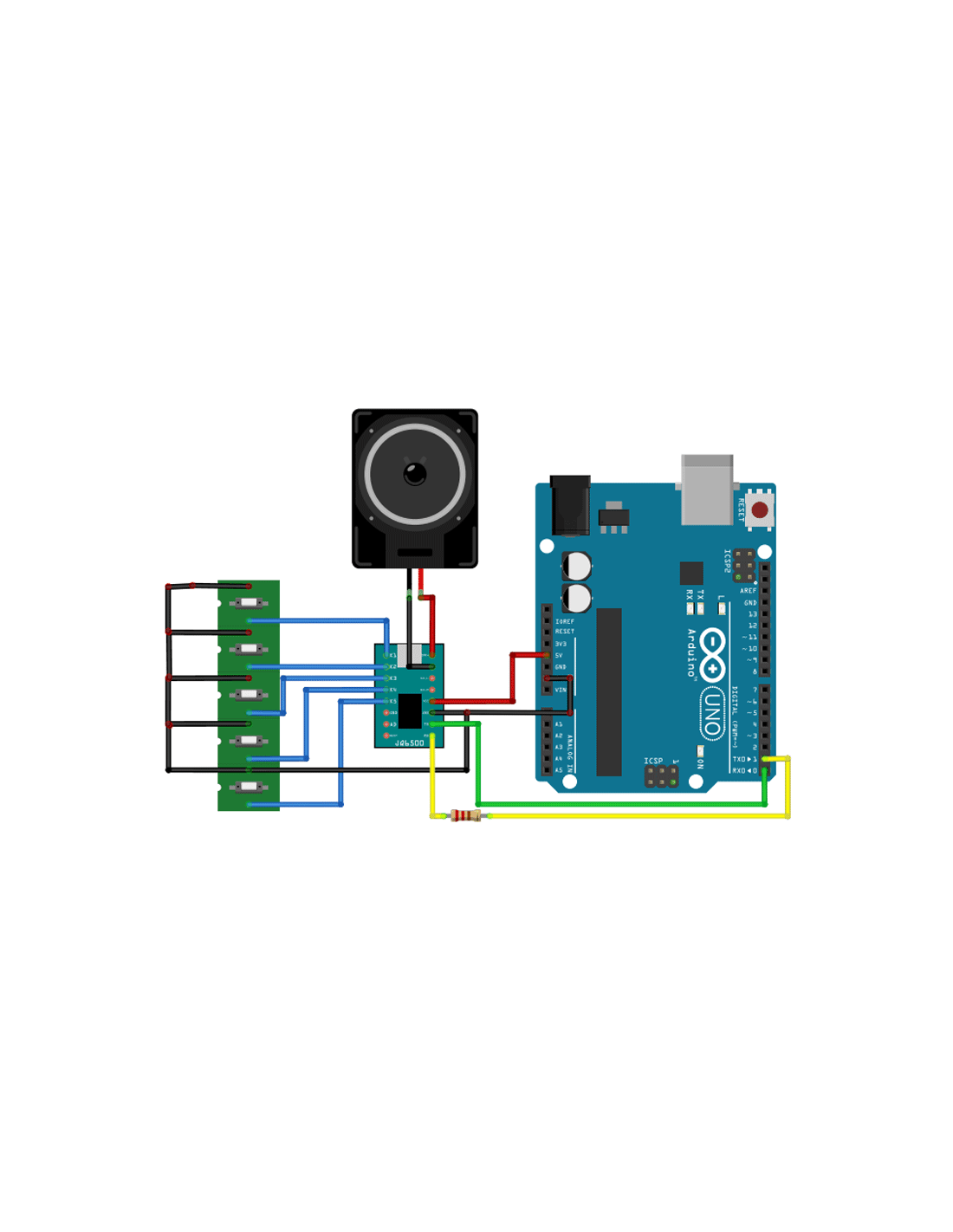

JQ6500 MP3 Voice sound module can play stereo MP3 files or standard mono audio files. The module has two different modes to operate in; serial communication mode (connecting to a microcontroller) or AD button control mode (module can be controlled with switches).

Features and Specifications of JQ6500 MP3 Player Module

This section mentions some of the features and specifications of the JQ6500 MP3 player

1. Operating voltage: 3.5-5V DC
2. Current rating: 20mA
3. Speaker power: 8ohm/3W
4. Supported sampling rate (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
5. 24-bit DAC output
6. Supports FAT16, FAT32 file system, TF card(maximum capacity 32G), USB 32G, NOR FLASH(64M bytes)
7. 30 level volume adjust
8. 10 EQ adjustable
9. Two modes: Serial mode and AD button control mode
