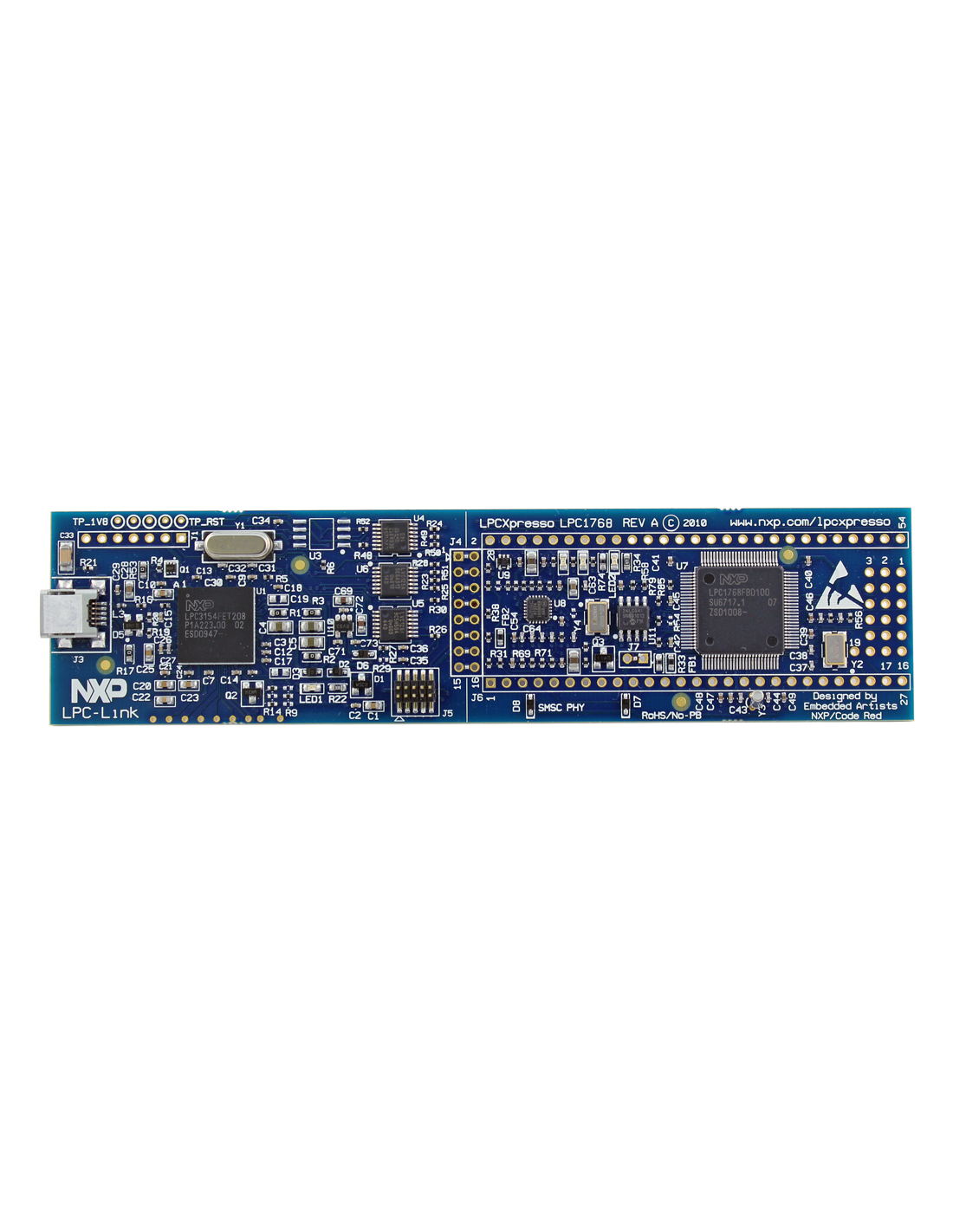

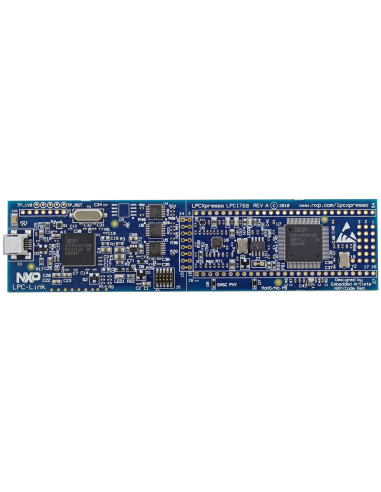

LPC1769 LPCXpresso Board
Processor	NXP's Cortex-M3 LPC1769 microcontroller in LQFP100 package
Flash	512 KByte
Data Memory	64 KByte
Clock Crystals	12.000 MHz crystal for CPU
Dimensions	35 x 140 mm
Power	3.15V-3.3V external powering, or from USB via JTAG probe (LPC-LINK)
Connectors	All LPC1769 pins available on expansion connector (2x27 pin rows, 100 mil pitch, 900 mil between rows)

Other
Embedded JTAG (LPC-LINK) functionality via LPCXpresso toolchain
LPC-LINK can be connected to external target processor after modifications to the LPCXpresso board
LED on PIO0_7
