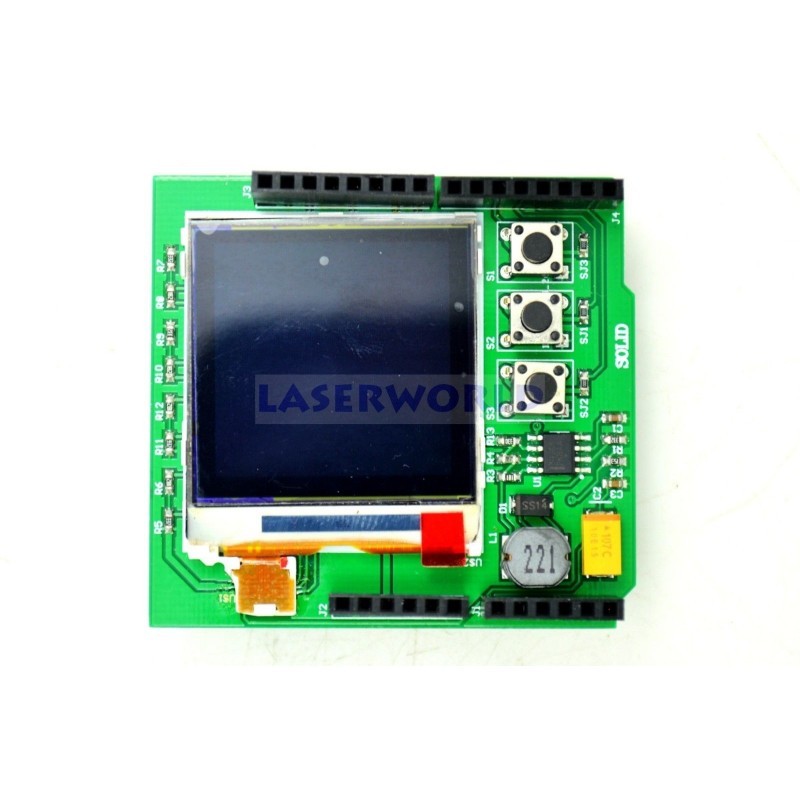

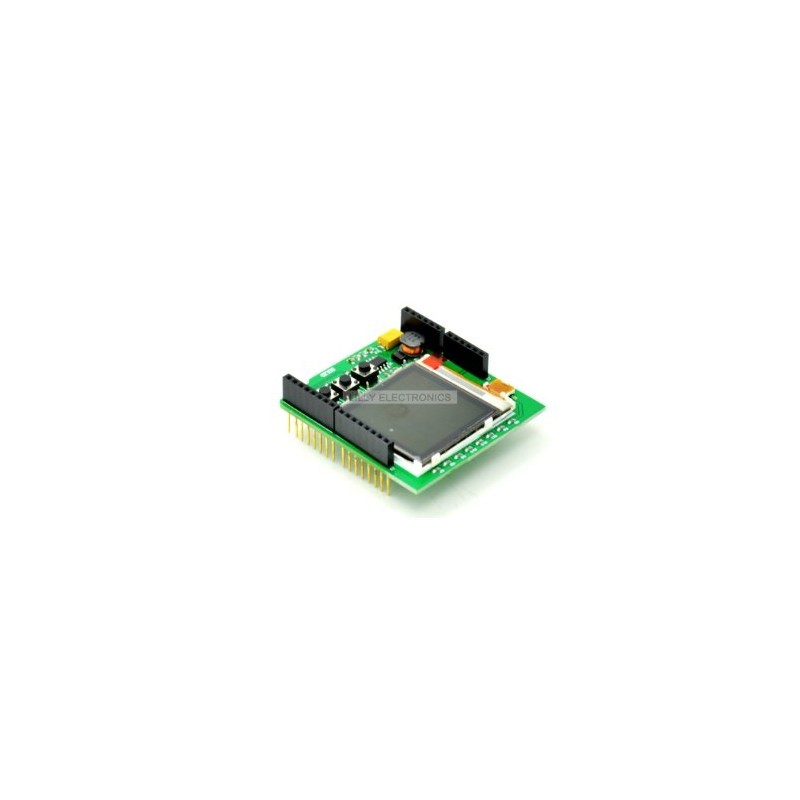

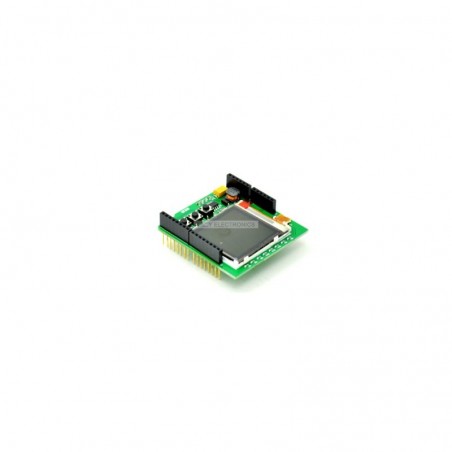

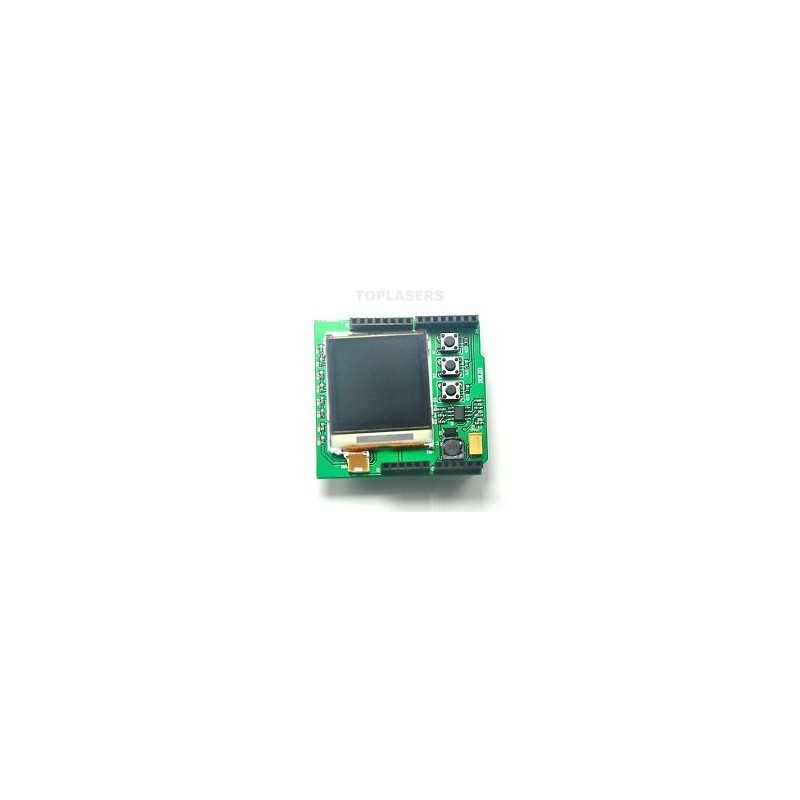

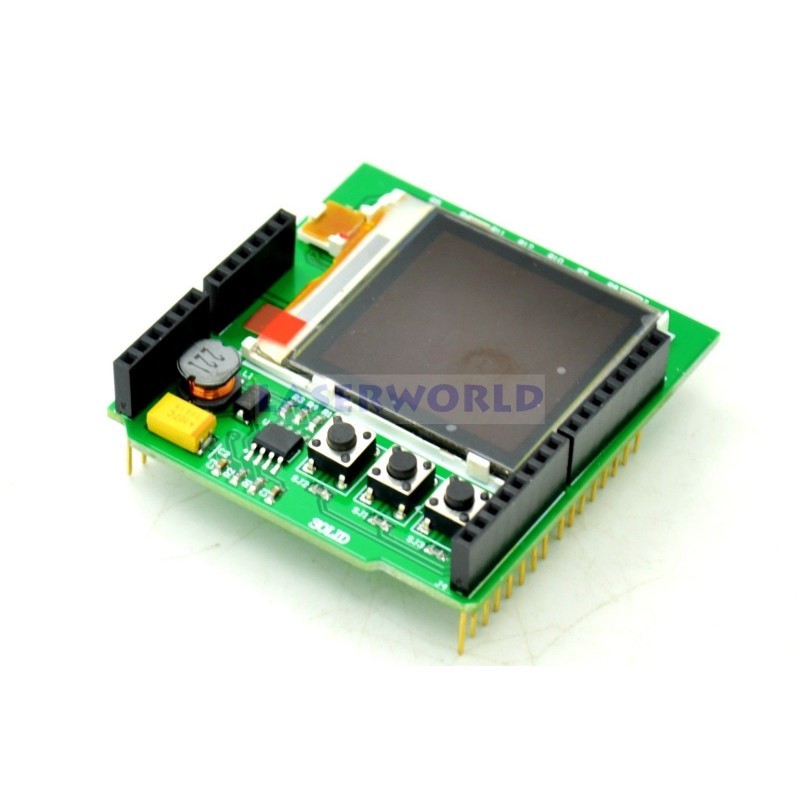

NOKIA COLOR LCD SHIELD FOR ARDUINO

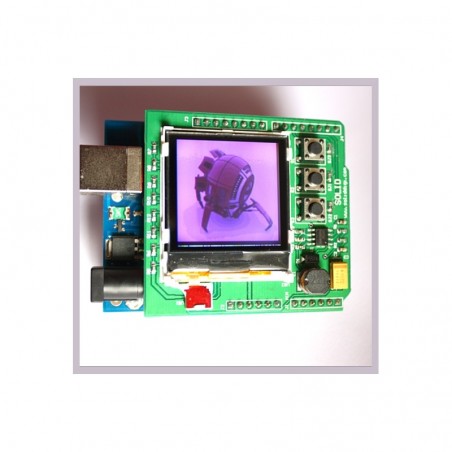

Now you can run an interactive color application on the Arduino, taking the COOLNESS to a new level....

• Example code

• Schematics & pin outs

This 132x132 mini color LCD is a perfect match for the  portable application. Please be gentle with it and handle it with care.

This inexpensive LCD comes with a powerful white LED backlight and a relatively simple serial interface.

Frame Dimensions: 1.35x1.58"
Active Display Dimensions: 1.2"x1.2"

Features:

• LCD Logic - 3.3V @ 2-3mA
• LED Backlight - 7V @ 40-50mA (very bright)
• Full 4,096 Color Display
• Uses the Epson S1D15G10 or Philips PCF8833 Controller (we cannot guarantee which one you will receive, please see Jim Lynch's tutorial below as to why)

Documents:

• Arduino library
• Latest LPC2148 example code from SFE, works with both controllers
• Latest ATmega8 example code from SFE, works with Epson controller
• Interface tutorial by Jim Lynch
• Epson Controller Datasheet
• SFE Eagle Library has this part!
• The holy grail forum posting for this Nokia type LCD
• Example ATMega32 Code - Thanks Jimbo!
• Example SAM7-P64 ARM Code - Thanks again Jimbo!
• Example 3D Graphics project on a PIC
• Example ATMega644/128/32/16 code - Care of Cathy
• Example PIC 16F87x code for CCS Compiler - Thanks Marcus
• Example PIC 18F4550 USB - Thanks Francesco
• Example 4096 Color Control - Beautiful! Thanks Loren Blaney
• Example Linux Driver - Thanks Zsolt
• Example Image Converter - Thanks Jamie Samayoa
• Bitmap Converter - Thanks Sebastian

Pin Out (use the numbering visible on the display connector):

1. VCC-Digital (3.3V)
2. RESET
3. SDATA
4. SCK
5. CS
6. VCC-Display (3.3V)
7. N/C
8. GND
9. LED GND
10. LED V+ (6-7V)
