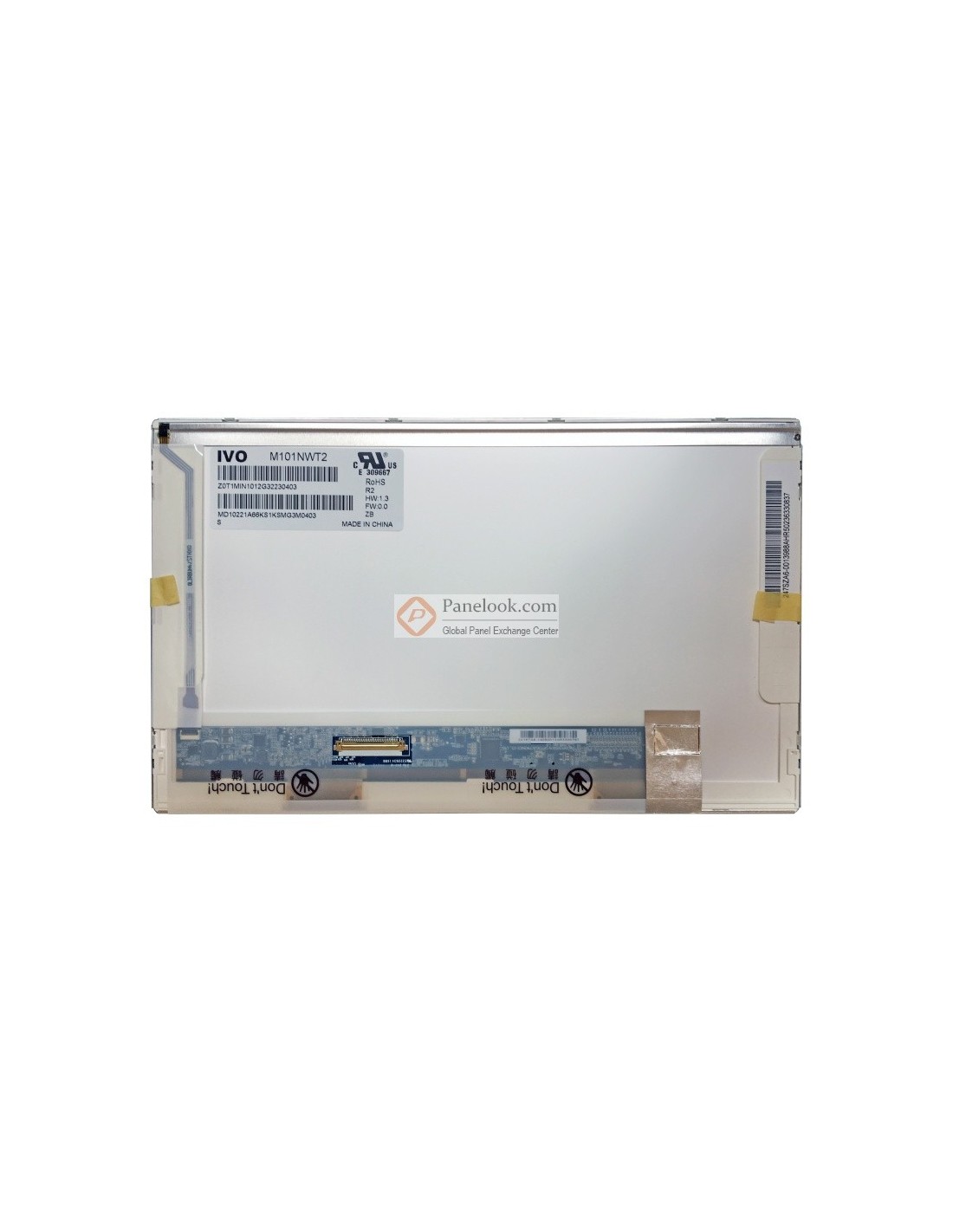

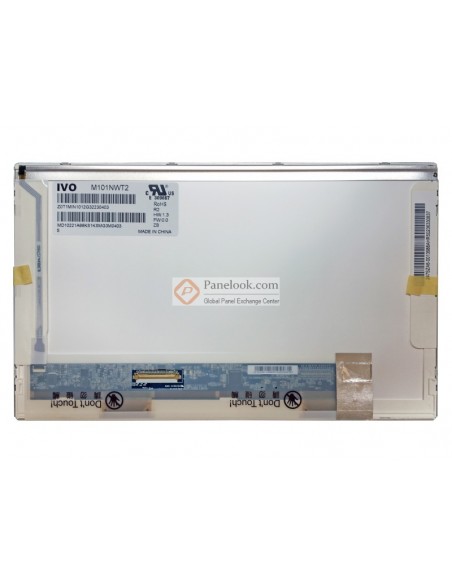

- Brand
- IVO
- Model P/N
- M101NWT2 R2
- Diagonal Size
- 10.1"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1024(RGB)×600, WSVGA 117PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 222.72(W)×125.28(H) mm
- Bezel Opening
- 226.42(W)×128.48(H) mm
| Outline Dim. |
|---|
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Form Style |
| Frame Rate |
| 235(W)×143(H)×5.2(D) mm |
| 200 cd/m² (Typ.) |
| 6 o'clock |
45/45/15/35 (Typ.)(CR≥10)  |
| 262K 45% NTSC |
| Wedge (PCBA Bent, T≥5.2mm) |
| 60Hz |
| Treatment |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Light Source |
| Designed For |
| Touch Panel |
| Antiglare, Hard coating |
| 500:1 (Typ.) (TM) |
| 3/5 (Typ.)(Tr/Td) |
| TN, Normally White, Transmissive |
| WLED , 10K hours , With LED Driver |
 |
| Without |

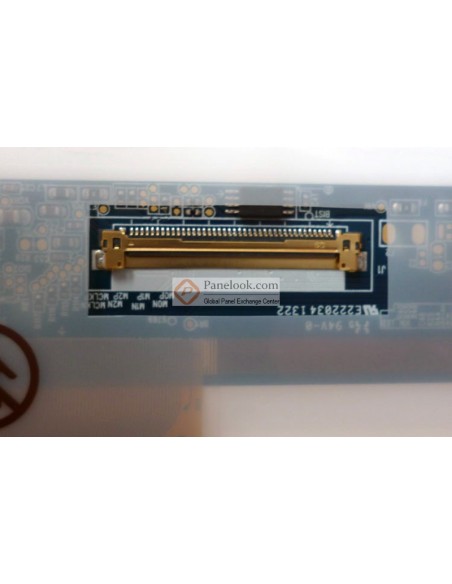

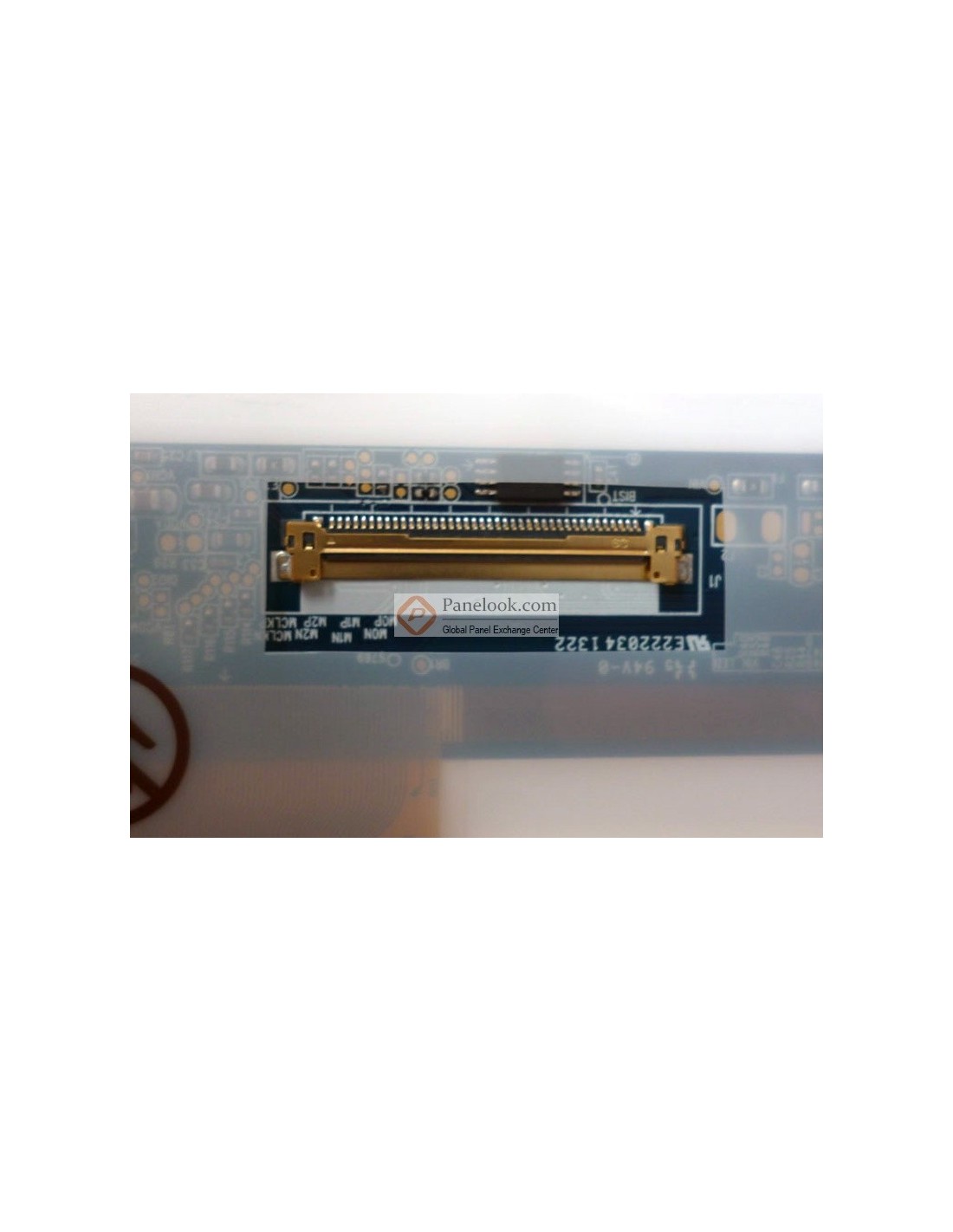

| Interface Type | LVDS (1 ch, 6-bit) 40 pins Connector |
|---|---|
| Power Supply | 3.3V (Typ.) |
