PCM1808 Single-Ended, Analog-Input 24-Bit, 96-kHz Stereo ADC Analogic to i2s

Out-of-Stock
$0.00

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

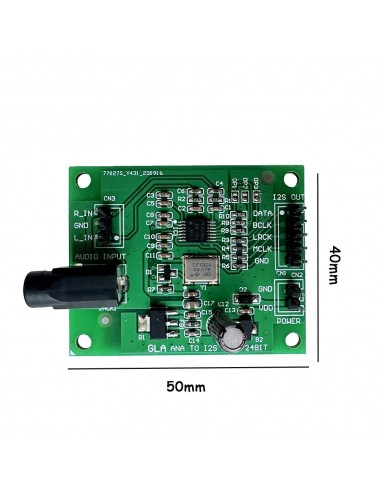

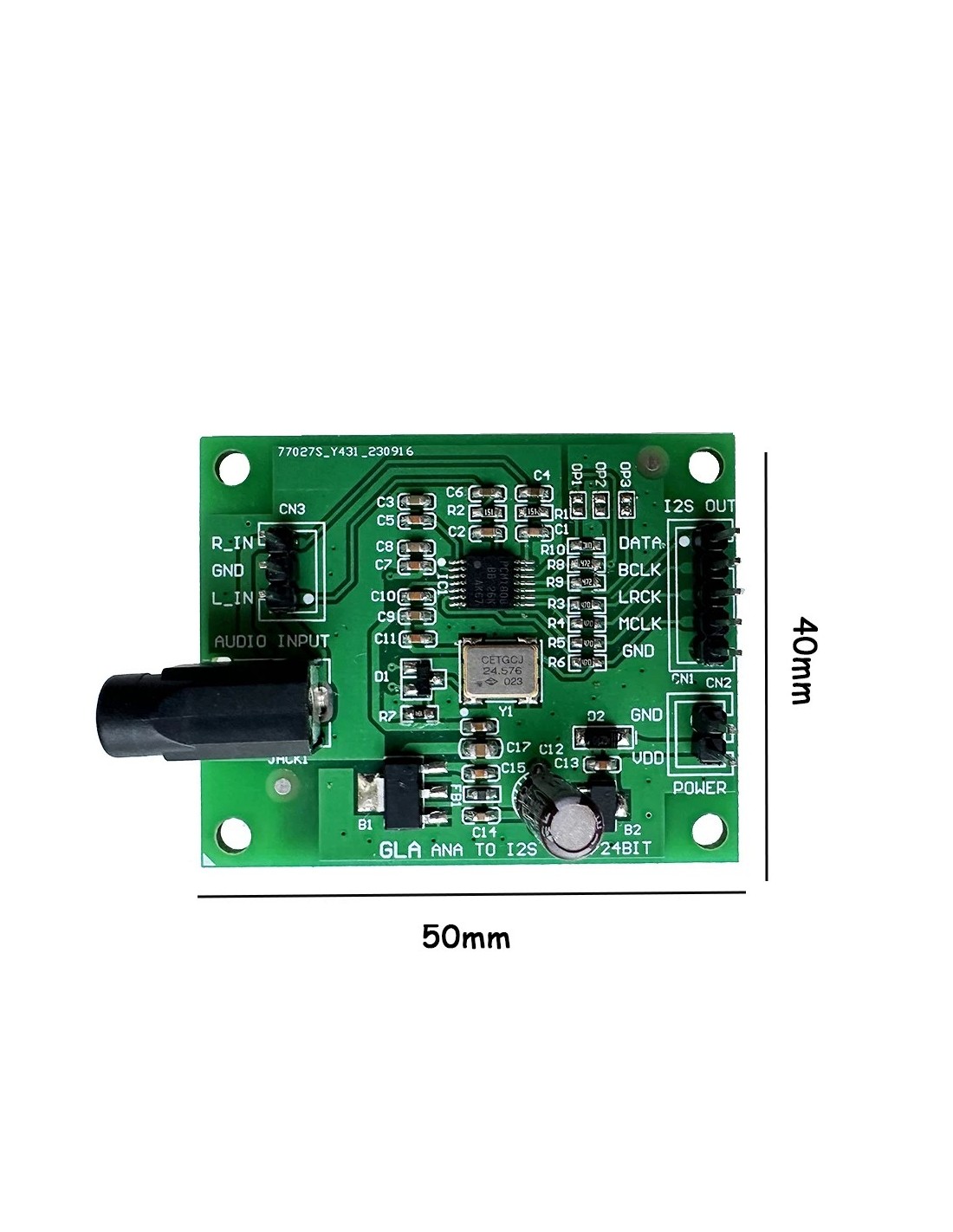

This module can convert high quality analog audio signal to I2S signal output, such as DSP equipment, recording equipment, decoder equipment

1. Using PCM1808 for conversion,THD+N:-93dB, dynamic range 99dB, signal-to-noise ratio 99dB,
2. Support 96K/24 bit,48K/24 bit output,(default 96K/24 bit, user configurable)
3. Output format supports I2S-24 bits,(left justified)LJ-24 bits,(default I2S-24 bits, user configurable)
4. Output master/slave mode is optional (default master mode, user configurable)
5. Use 3.5 socket input
6. Power supply :DC5V~12V wide range of power supply
7.PCB size :40mm*50mm, excluding the outlet part
8.Weight:10g
