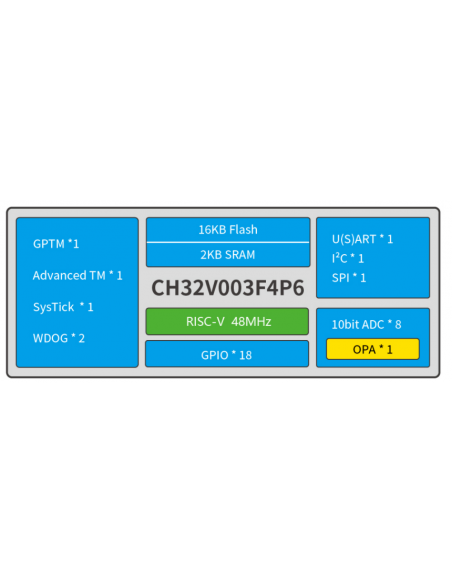

CH32V003 series is based on Qingke RISC-V2A core design of industrial-grade general-purpose microcontroller, support system main frequency 48MHz, with wide voltage, 1-wire SDI, low power consumption, ultra-small package , etc. CH32V003 series built-in a DMA controller group, a 10-bit ADC group, an OPA group, multiple timers and standard communication interfaces USART, IC, SPI, etc.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

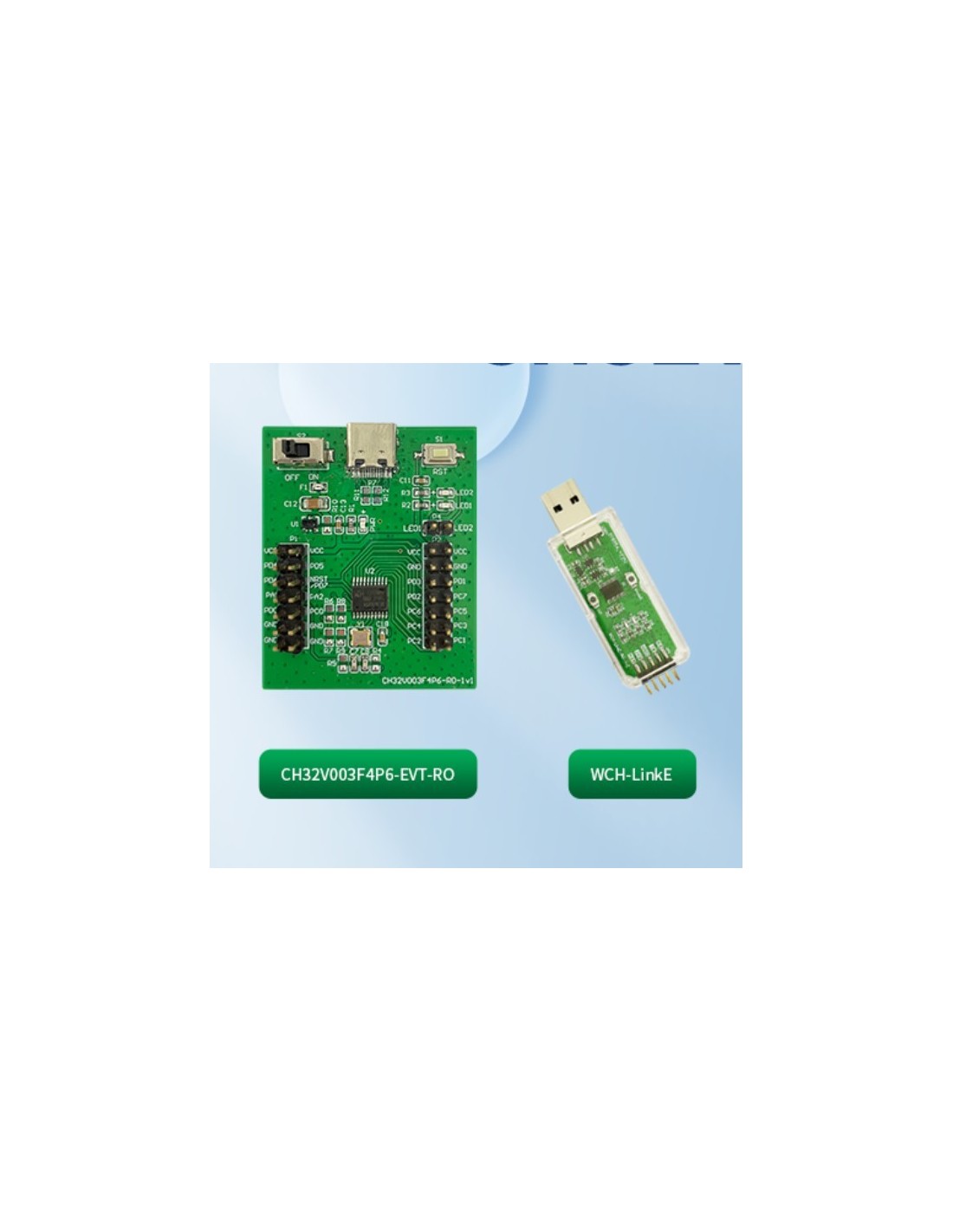

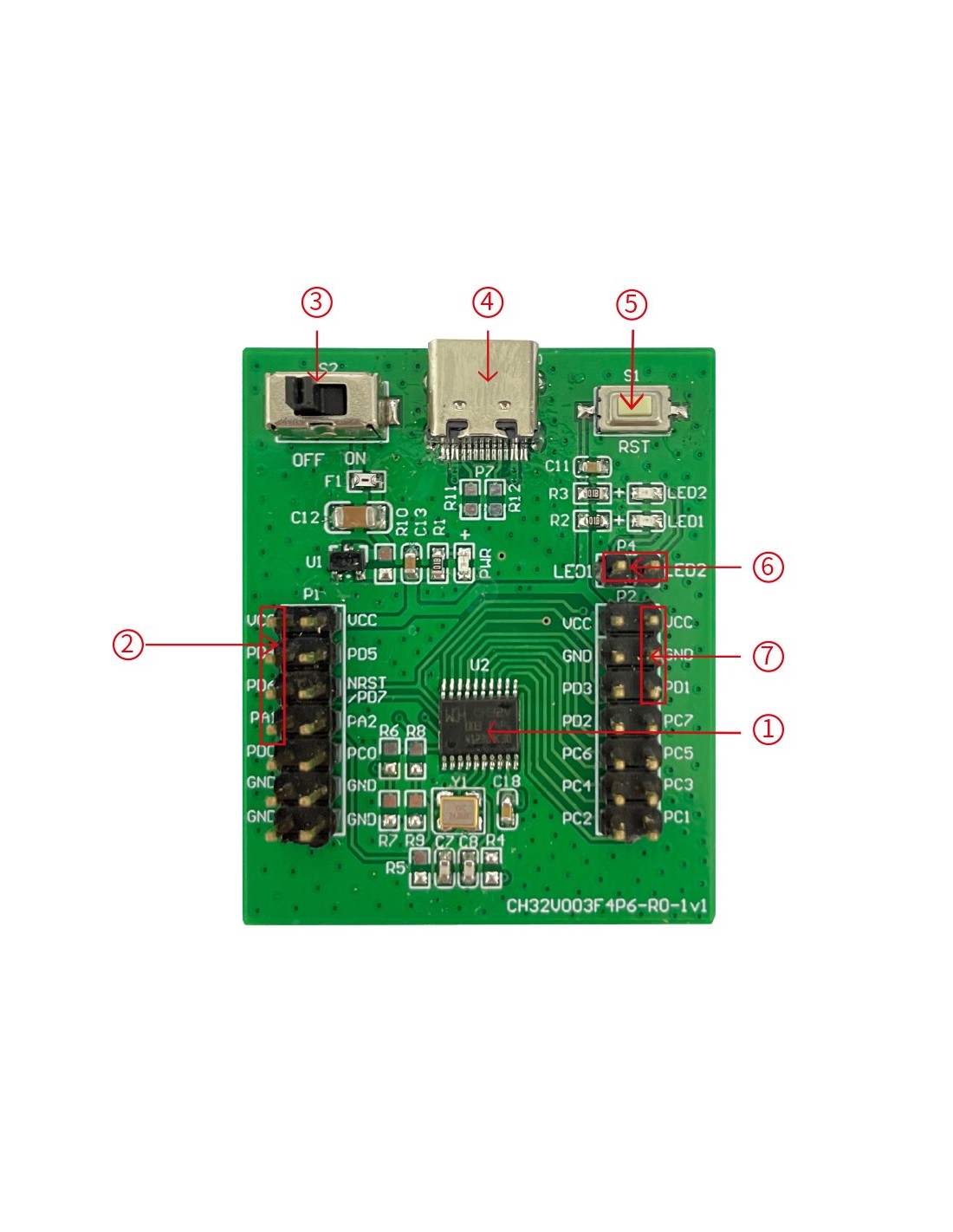

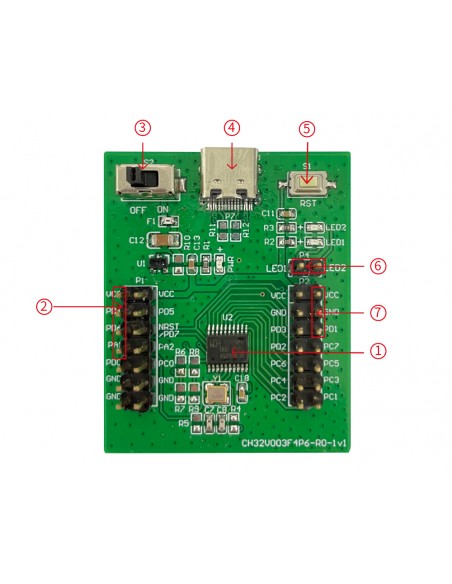

【 CH32V003F4P6-BLACK 】 【

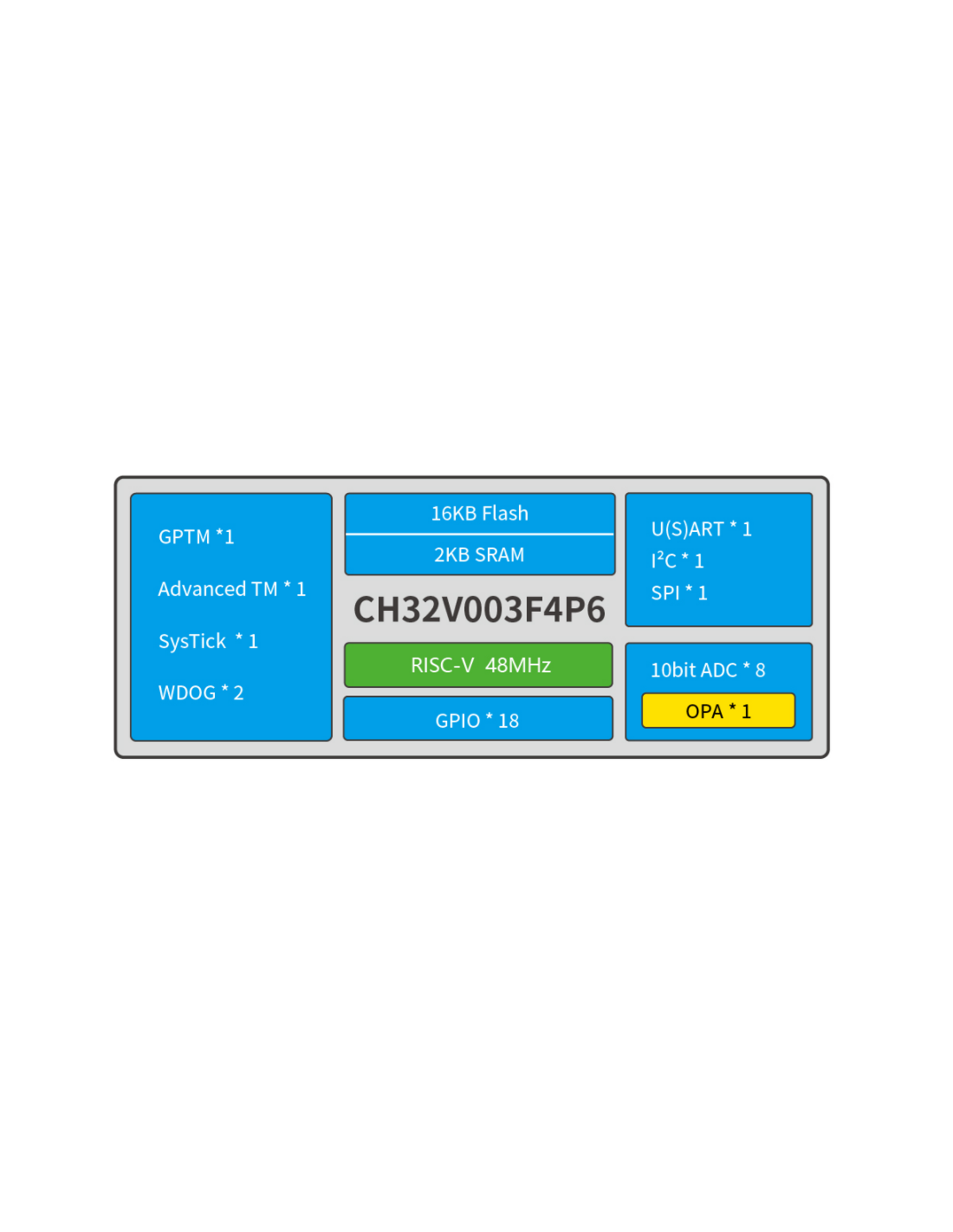

  • Qingke 32-bit RISC-V2A processor with 2-level interrupt nesting support

  • Main system frequency up to 48MHz

  • 2kb sram, 16kb flash

  • Supply voltage: 3.3/5v

  • Multiple low power modes: sleep, standby

  • Power up/down reset, programmable voltage detector

  • 1 group of 1-channel general purpose DMA controller

  • 1 oops group

  • 1 group of 10 bits adc

  • 1 16-bit Advanced Control Timer and 1 16-bit General Purpose Timer

  • 2 watchdog timers and 1 systick 32-bit timer

  • 1 USART interface, 1 IC interface group, 1 SPI interface group

  • 18 I/O ports, mapping an external interrupt

  • Original 64-bit chip ID

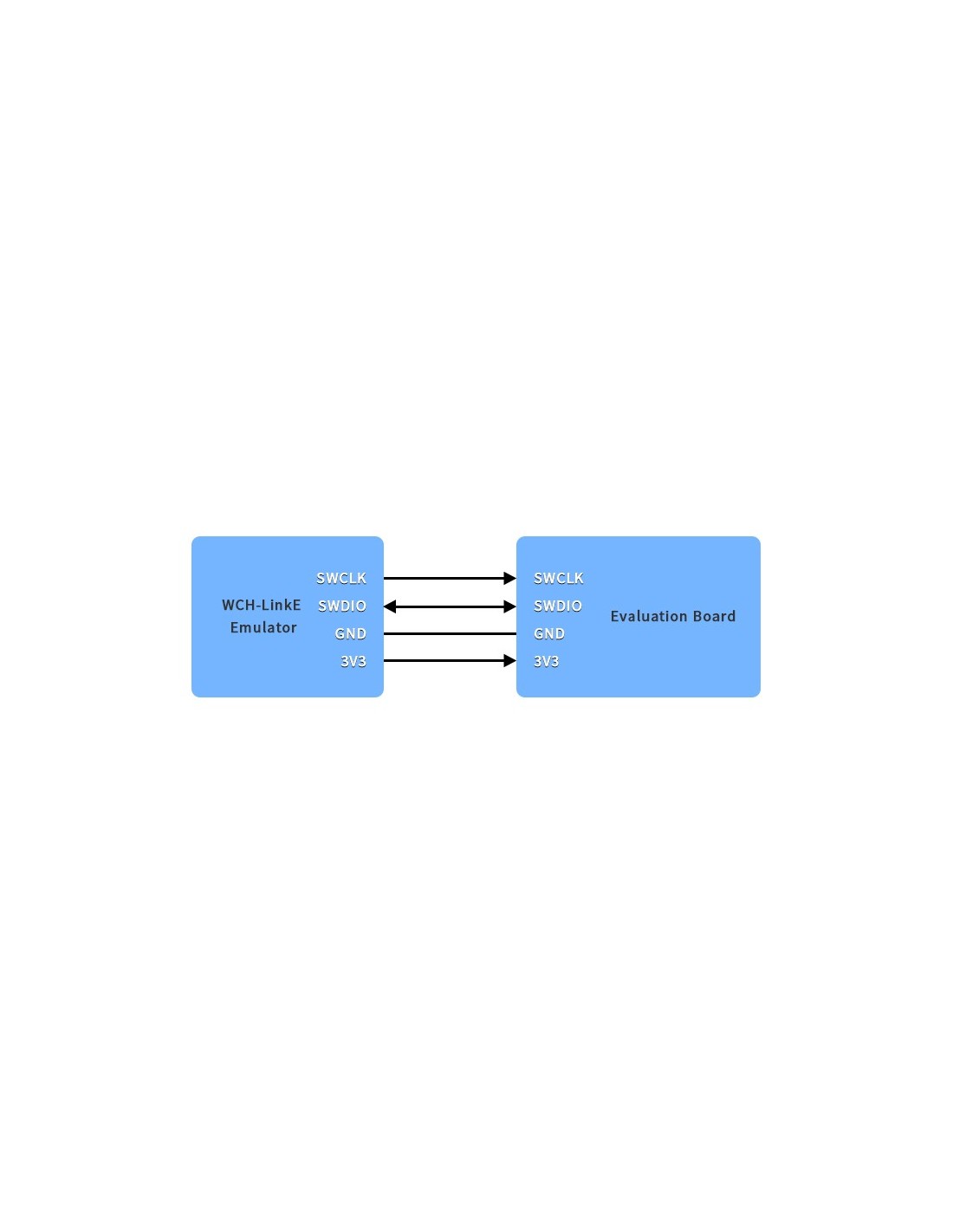

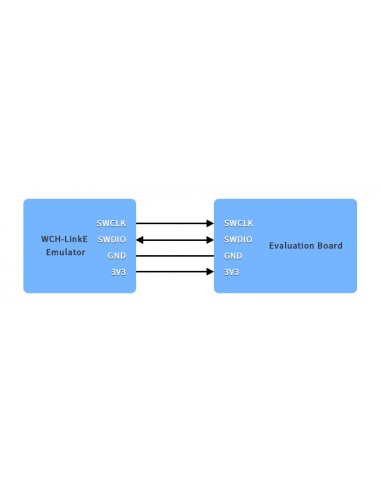

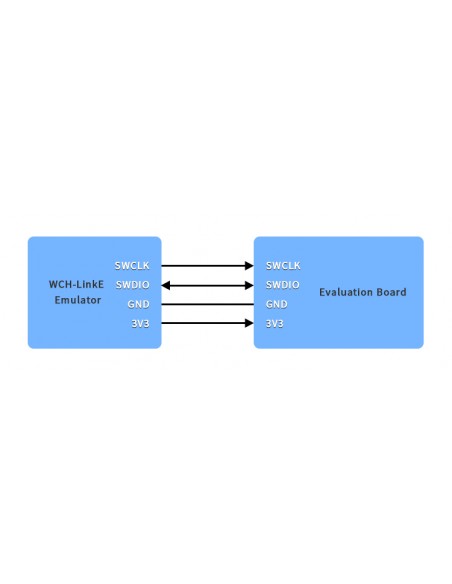

  • 1-wire serial debug interface (SDI)
