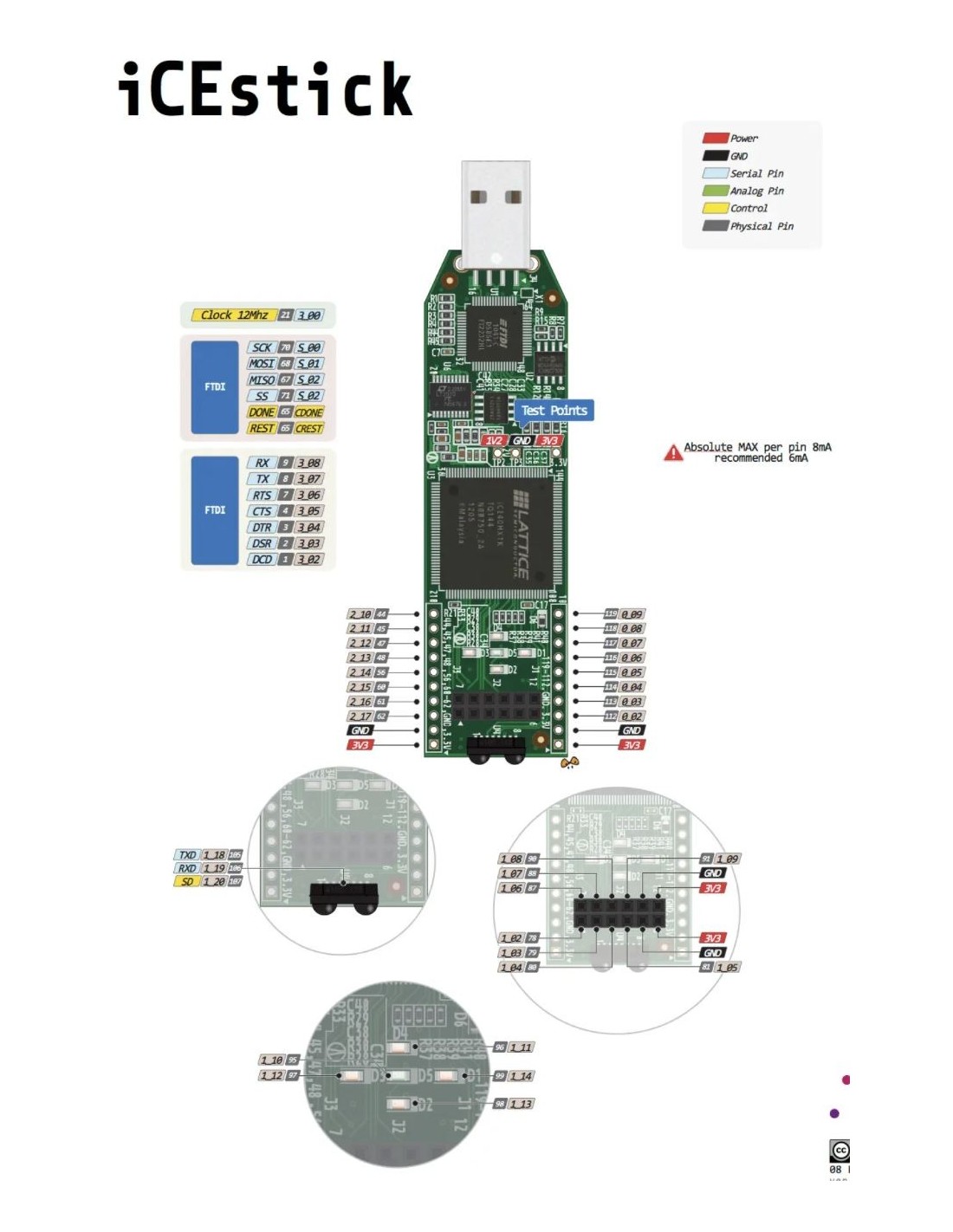

iCEstick iCE40HX-1k Lattice

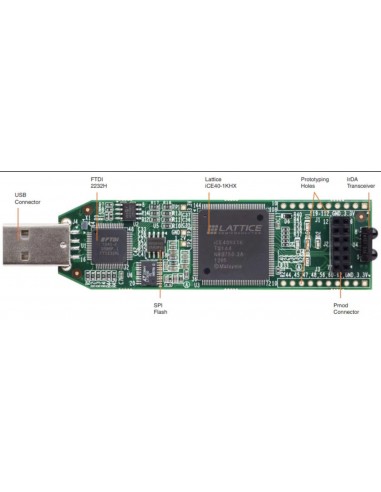

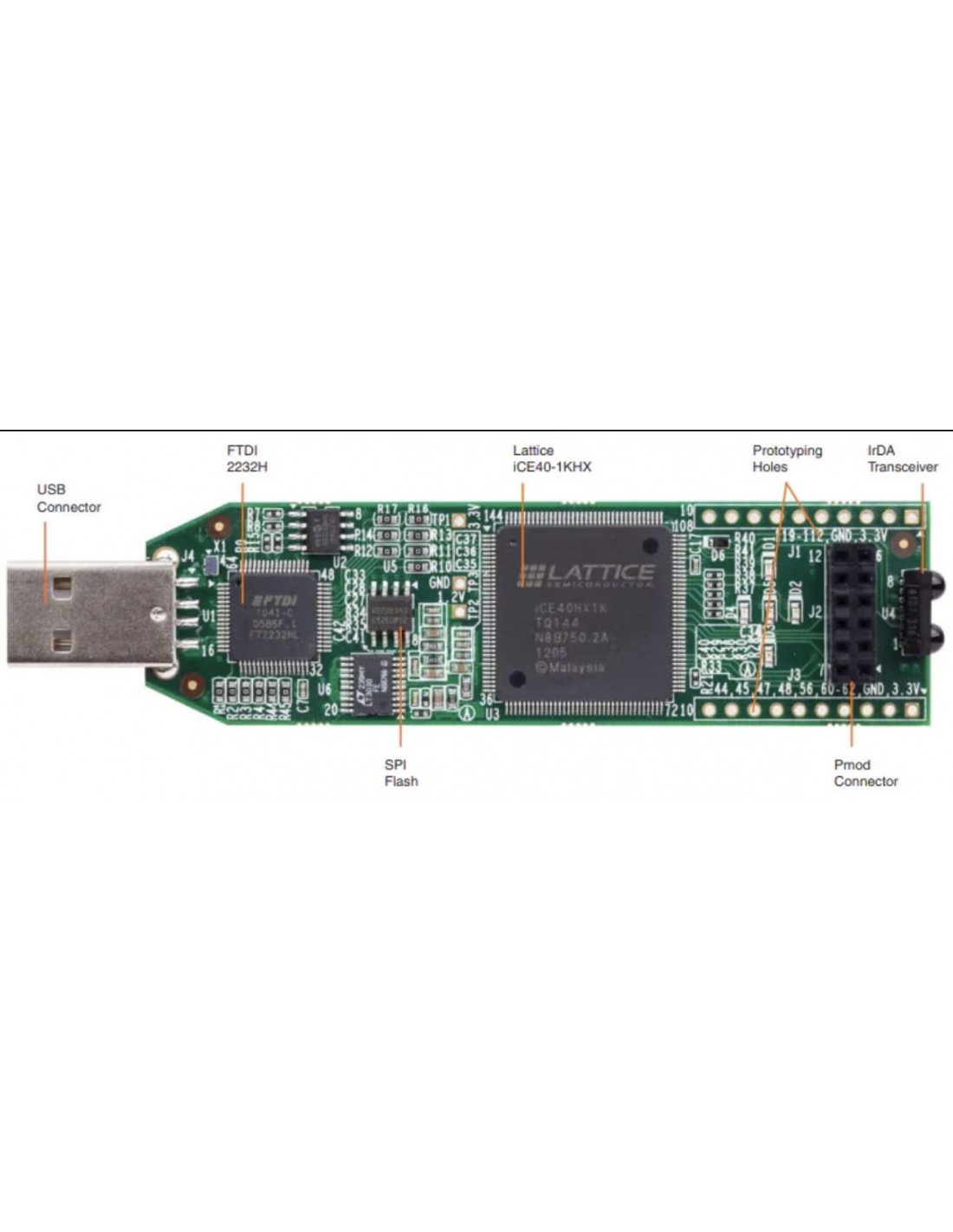

• USB thumb drive form factor
• iCE40HX-1k on board
• 2 x 6 position Digilent Pmod™ connector for other peripheral connections
• FTDI 2232H USB device allows iCE device programming and UART interface to a PC
• Vishay TFDU4101 IrDA transceiver
• Five user LEDs
• Discera 12 Mhz MEMS oscillator
• Micron 32 Mbit N25Q32 SPI flash
• USB connector provides the power supply
• 16 LVCMOS/LVTTL (3.3 V) digital I/O connections on 0.1” through-hole connections

• iCEstick contains a Digilent Pmod™ connector to attach various peripheral modules. The accelerometer reference design using Pmod™-ACL is an example. Purchased separately, this HDL design showcases how the iCE40 device interfaces to an acceleromter sensor, enabling the user to integrate additional sensors for their particular product.

• Designers can use the included reference designs (IRDA UART TX and IRDA UART RX) to simplify the prototyping of a wide variety of applications involving wireless transmission of data or control signals utilizing the onboard IrDA transceiver. Examples include wireless data transmission between two mobile devices such as smartphones, tablets, gaming devices, etc. Wireless control applications such as high-end remote controls, TVs, LED lighting control and others can also be implemented.
