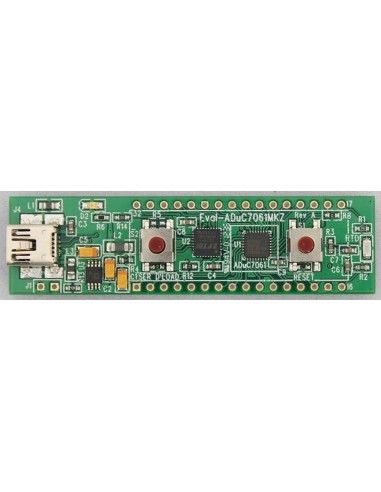

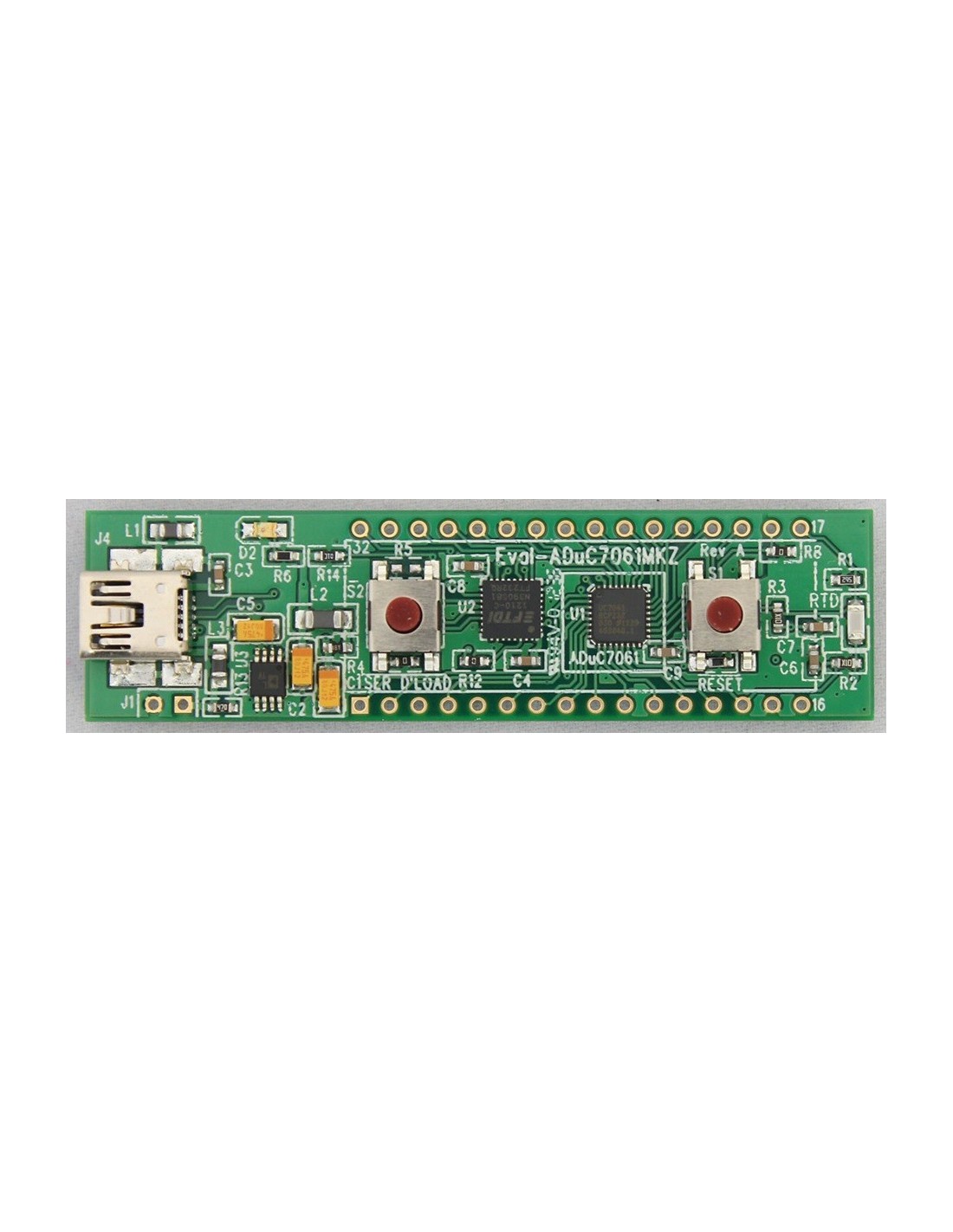

The EVAL-ADUC7061MKZ is an evaluation board for low power, Precision analogue microcontroller device ADuC7061 development system. The ADuC7061 are fully integrated, 8kSPS, 24bit data acquisition systems incorporating high performance multichannel sigma delta (Σ-Δ) analogue to digital converters (ADCs), 16bit/ 32bit ARM7TDMI mcu, and flash/EE memory on a single chip. The ADCs consist of a primary ADC with two differential pairs or four single ended channels and an auxiliary ADC with up to seven channels. The ADCs operate in single ended or differential input mode. A single-channel buffered voltage output DAC is available on chip. The DAC output range is programmable to one of four voltage ranges.
- It has analogue input/output, Dual (24bit) ADCs with single ended and differential inputs
- Its programmable ADC output rate off 4Hz to 8kHz
- It has programmable digital filters
- Its programmable sensor excitation current sources 200µA to 2mA current source range
- It supports single 14bit voltage output DAC
- It has ARM7TDMI core with 16/32bit RISC architecture
- JTAG port supports code download and debug
- 32kB flash/EE memory, including 2kB kernel 4kB SRAM
- SPI interface (5Mbps), UART serial i/o and I2C
