12A DC-DC 5-40V TO 1.2-36V STEP-DOWN
12A DC-DC 5-40V TO 1.2-36V STEP-DOWN
12A DC-DC 5-40V TO 1.2-36V STEP-DOWN
12A DC-DC 5-40V TO 1.2-36V STEP-DOWN
12A DC-DC 5-40V TO 1.2-36V STEP-DOWN

12A DC-DC 5-40V TO 1.2-36V STEP-DOWN

Out-of-Stock
$0.00

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

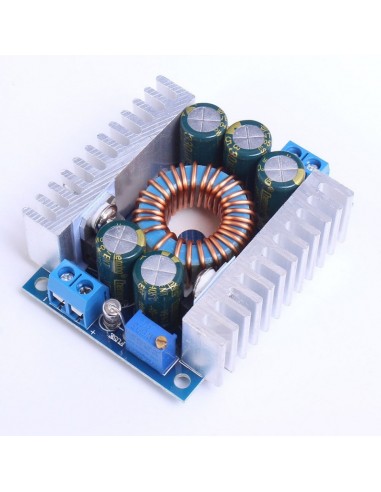

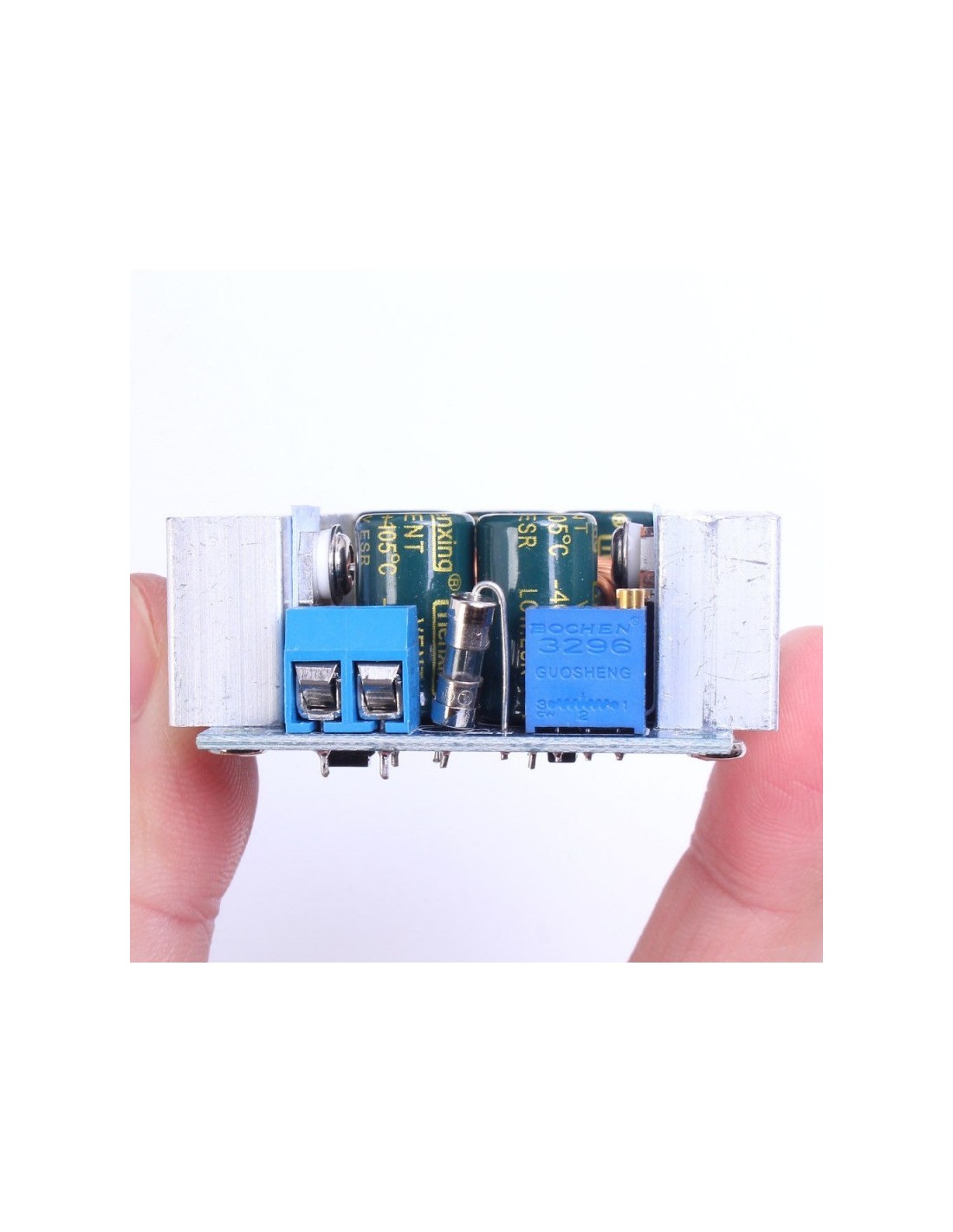

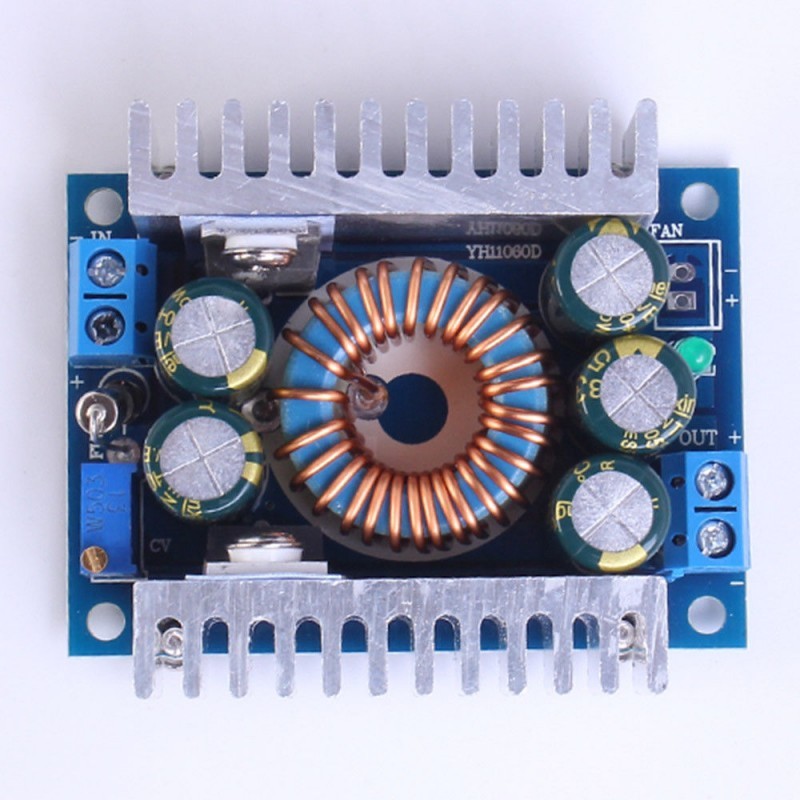

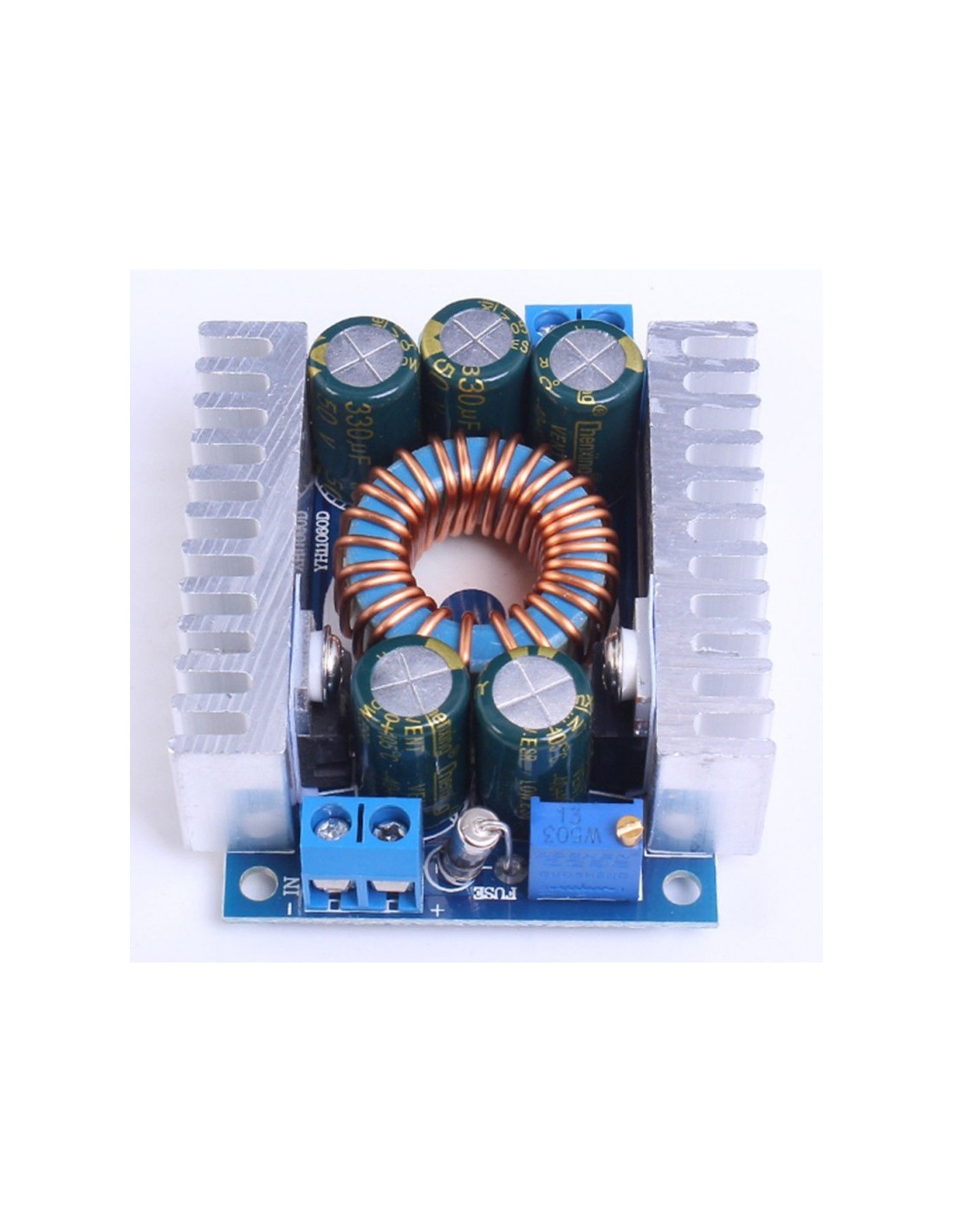

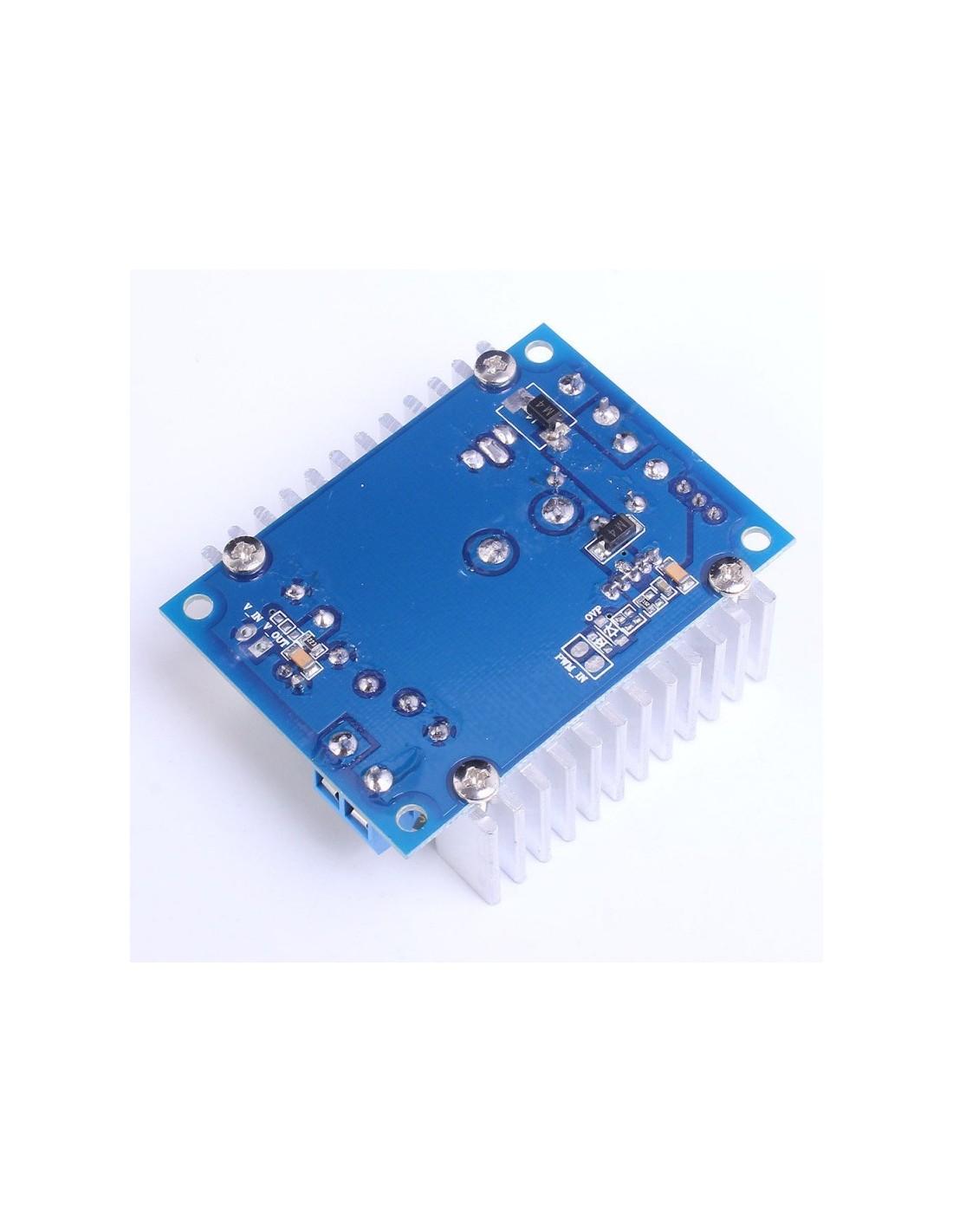

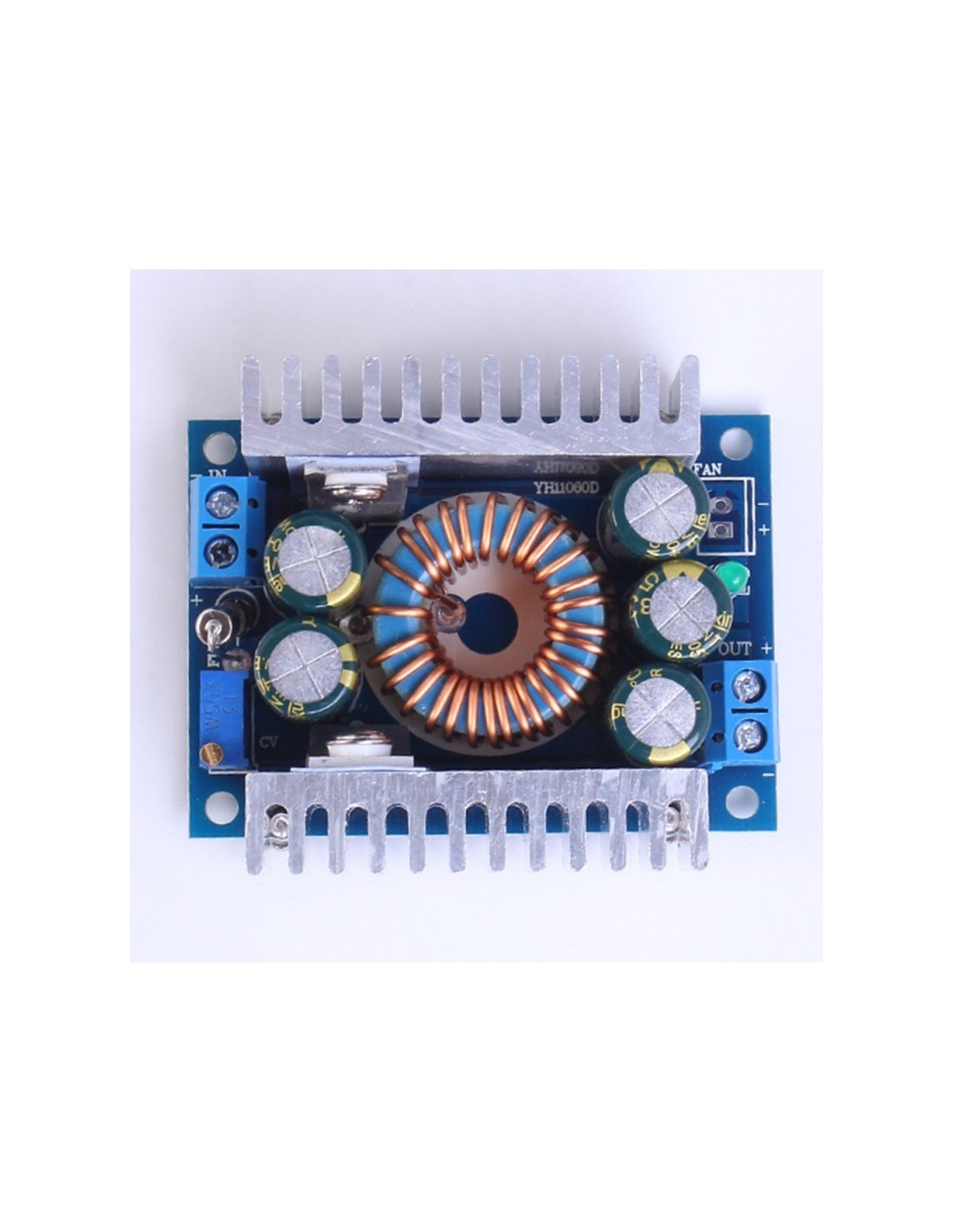

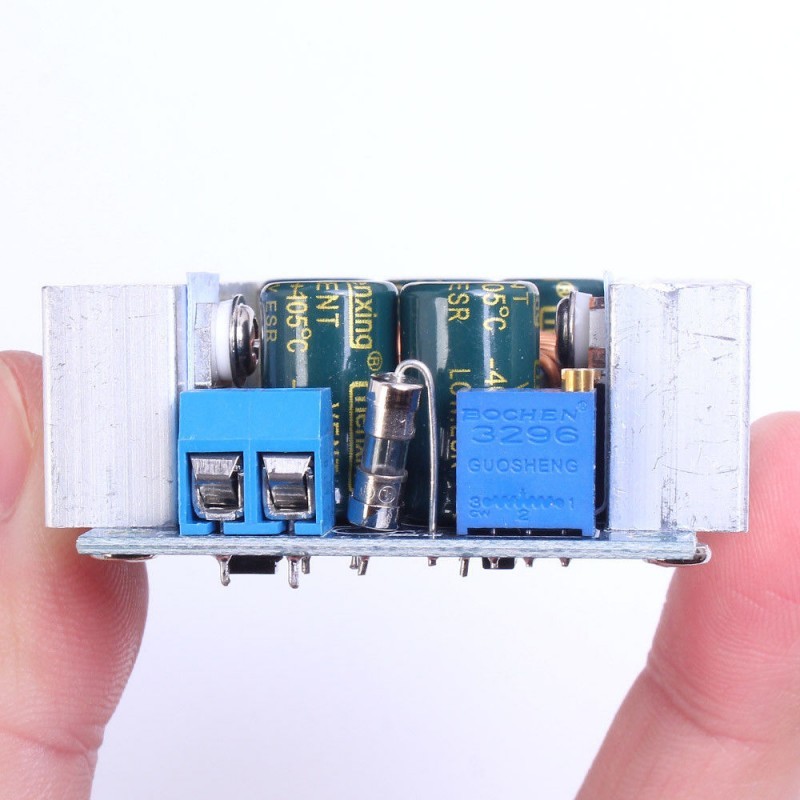

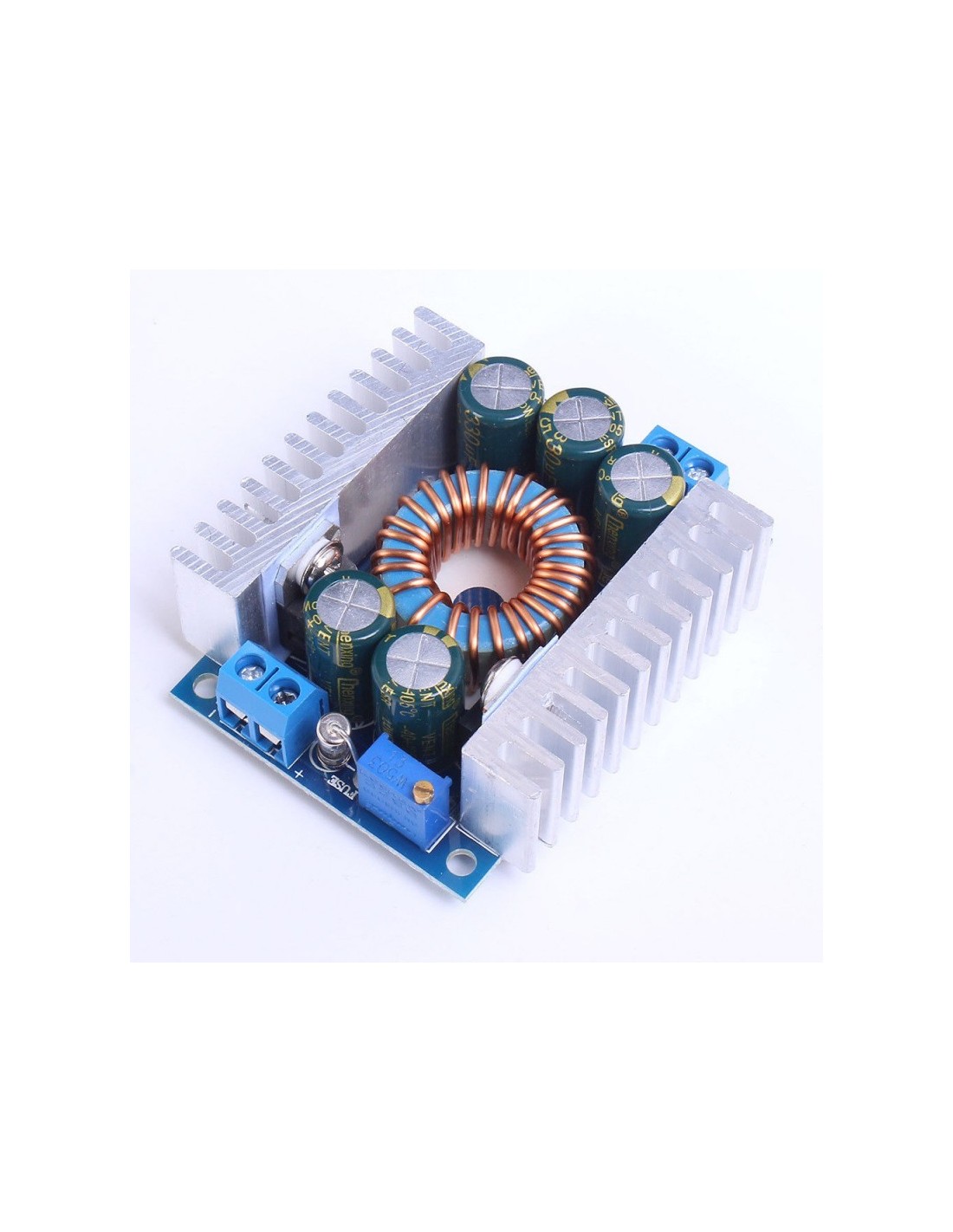

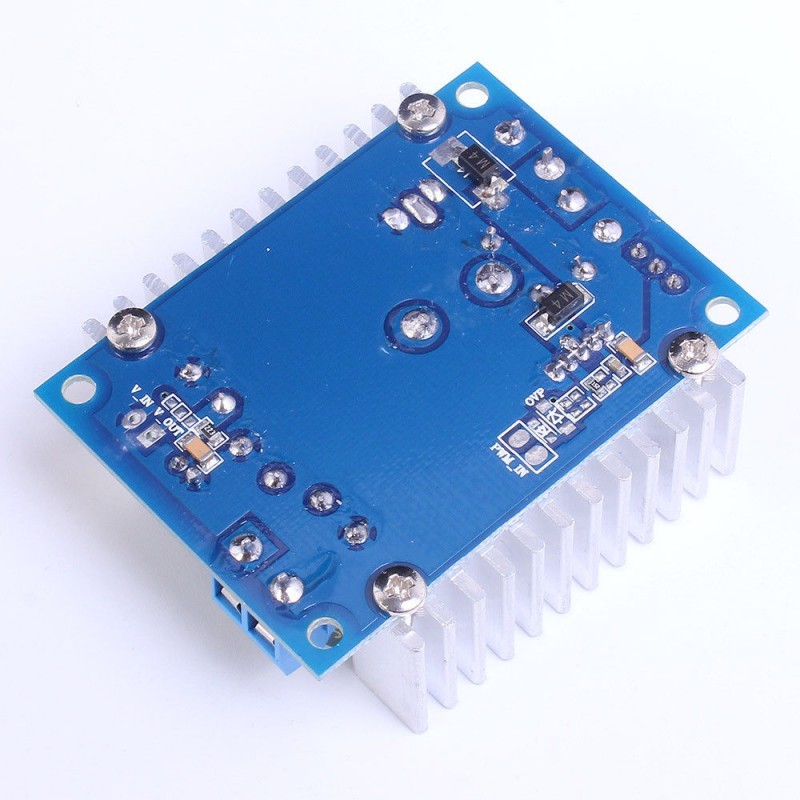

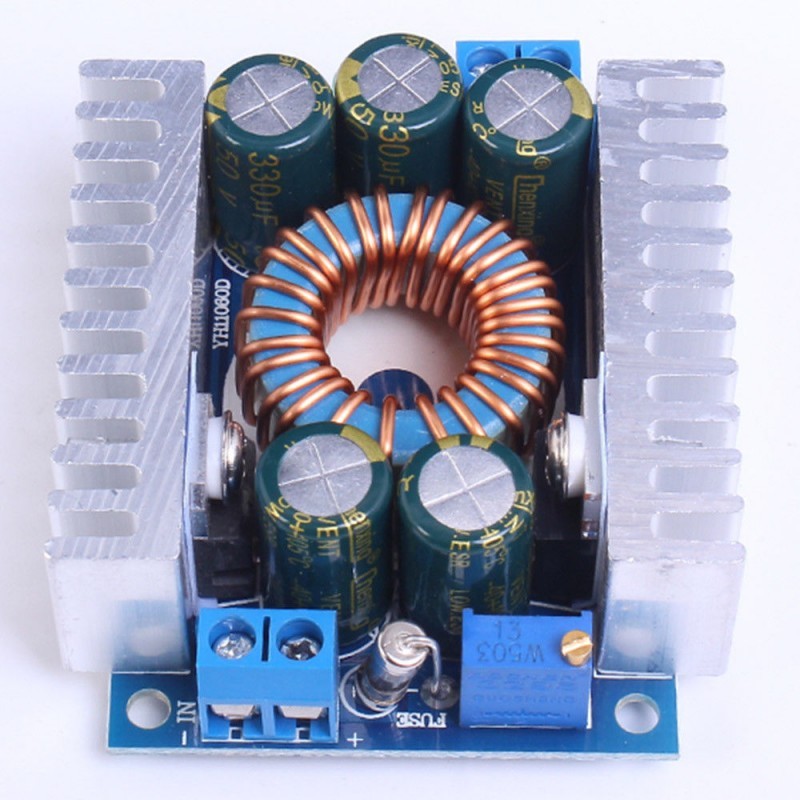

1.Name:12A step-down board
2.Character:non-isolated buck module
3.Input Voltage:5-40V
4.Output Voltage:1.2-36V continuous adjustable
5.Output Current:12A (max) 100W;rated current 8A
6.Operating Temperature:-40~85 celsius
7.Operating Frequency:180KHz
8.Conversion Efficiency:95% (max)
9.Short Circuit Protection:yes (limit current 12A)
10.Overtemperature Protection:yes (if over temperature,it will automatically shutdown output)
11.Input Reverse Connection Protection:no (if necessary,please serial connect with diode on input port)
12.Installation Way:4pcs 3mm screws
13.Connection Way:connection terminal free soldering (V-IN is input,V-OUT is output)
14.Size:60*51*22mm
15.Application Fields:buck voltage for storage battery,power converter,DIY adjustable voltage-stabilized power etc
