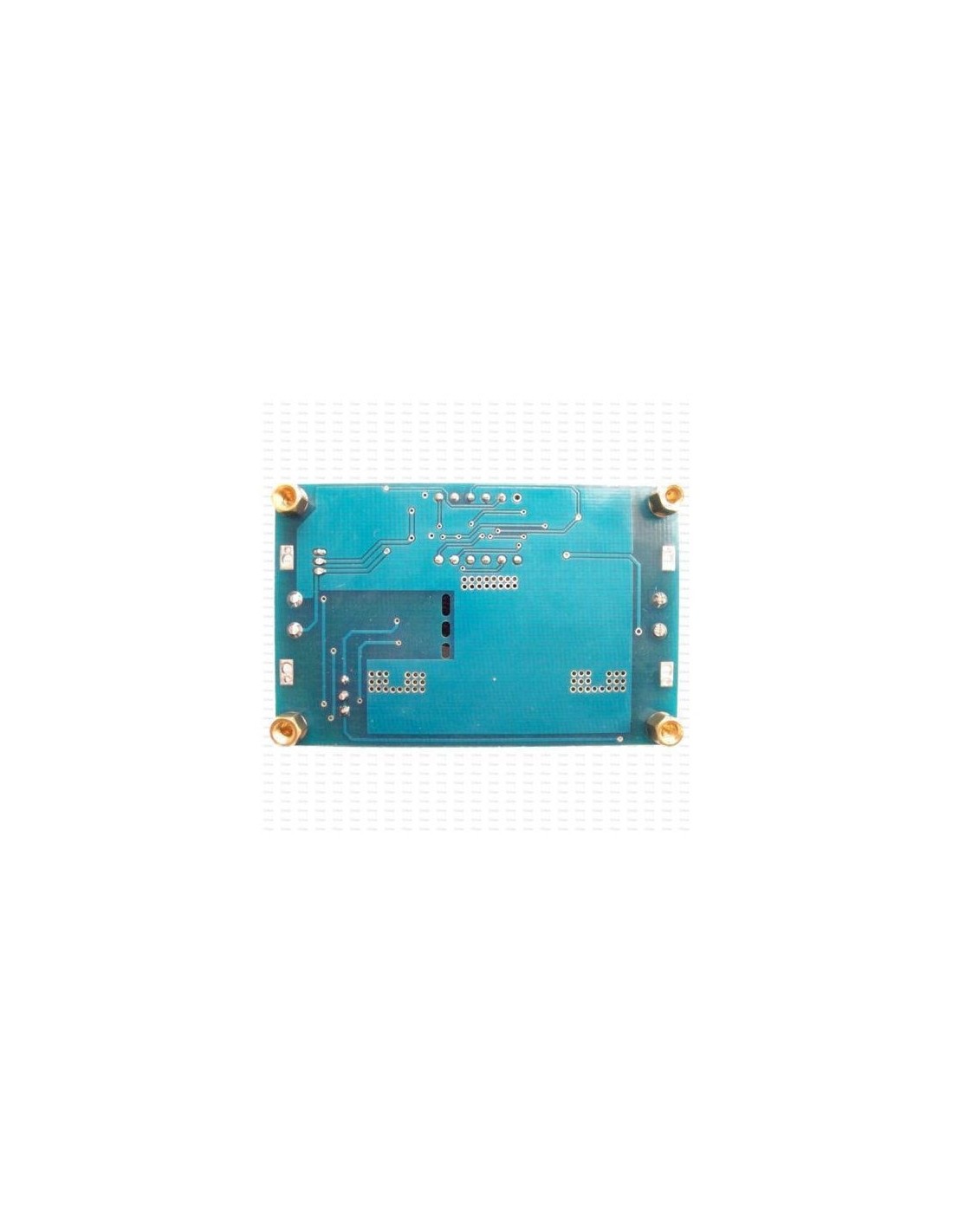

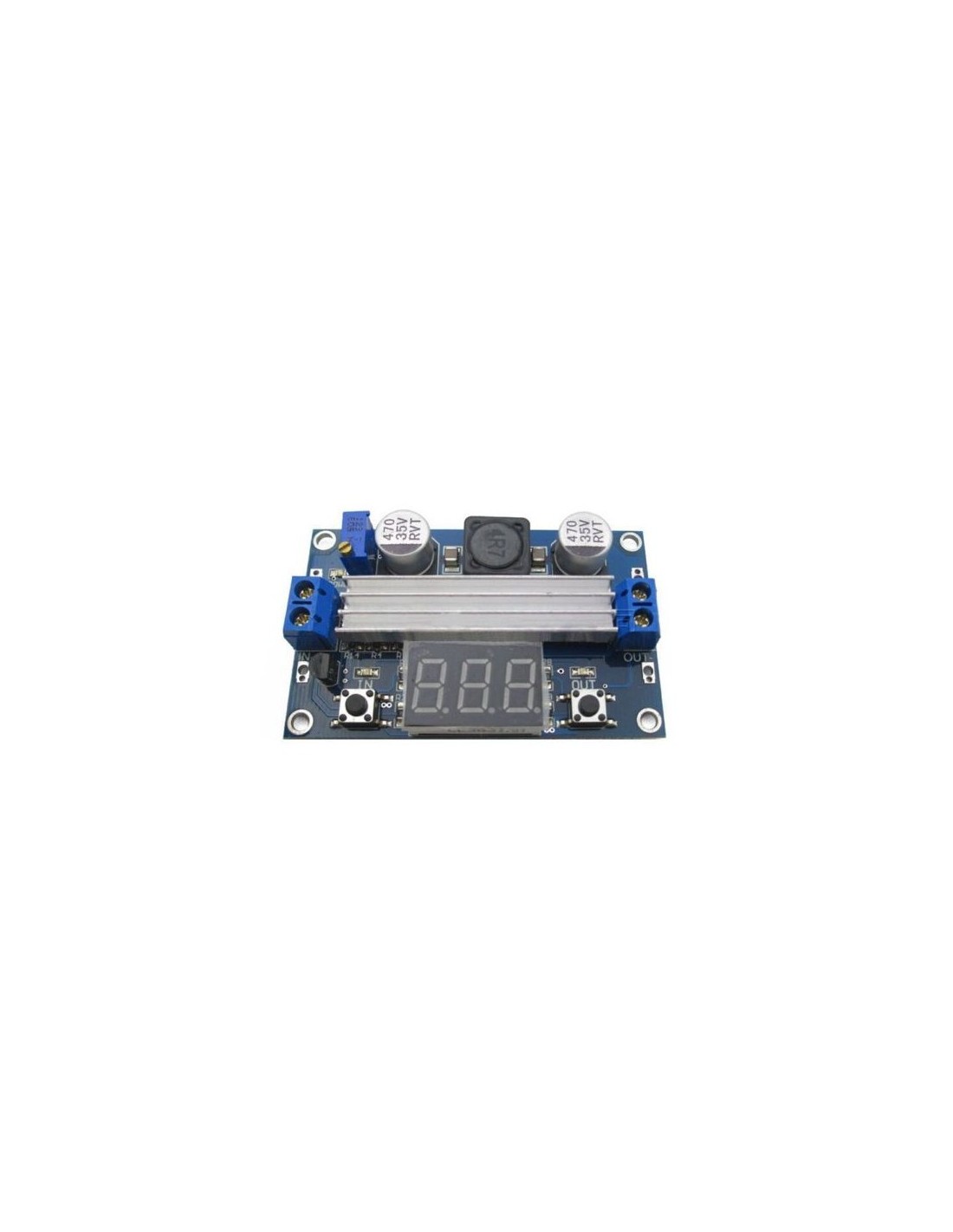

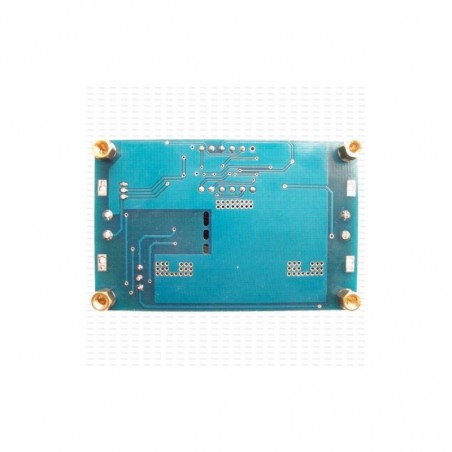

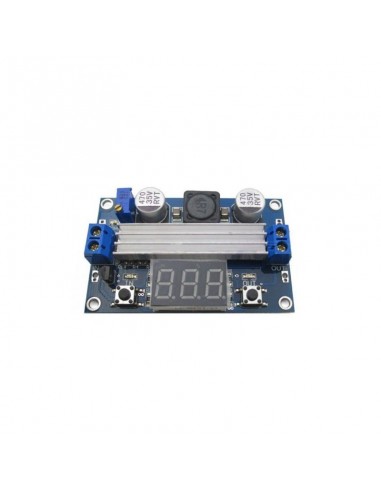

Automatic boost module provide a stable power supply.Applicable to unstable voltage source or voltage conversion.
- Features:
1>. Small size.
2>. Simple wiring.
3>. Targeted.
4>. Custom installation.
5>. High power 100W.
6>. Switch display output and input voltage.
7>. Adjustable output voltage.
8>. Real-time display voltage.
9>. Comes with excellent heat sink
10>. Fixed mounting hole.
11>. High quality terminal block
- Parameters :
|
No. |
Parameter |
Value |
|
1 |
Input voltage |
DC3 ~ 35V(Display will be abnormal if input less than 4V) |
|
2 |
Input current |
9A(Max.) |
|
3 |
Output voltage |
DC3.5-35V(It is a boost module,So output voltage is higher than input voltage) |
|
4 |
Output current |
6A (Max.) |
|
5 |
Output power |
75W |
|
6 |
Conversion efficiency |
96.7% (Max.) |
|
7 |
Output ripple |
24mV(TYP) |
|
8 |
Measuring range of onboard voltmeter |
4~40V, |
|
9 |
Error |
+/ -0.1V. |
|
10 |
Short circuit protection |
Yes (limit current 14A). |
|
11 |
Input reverse protection |
No (One diode can be connected in series by yourself if need protection) |
|
12 |
Size |
67*43*12MM |

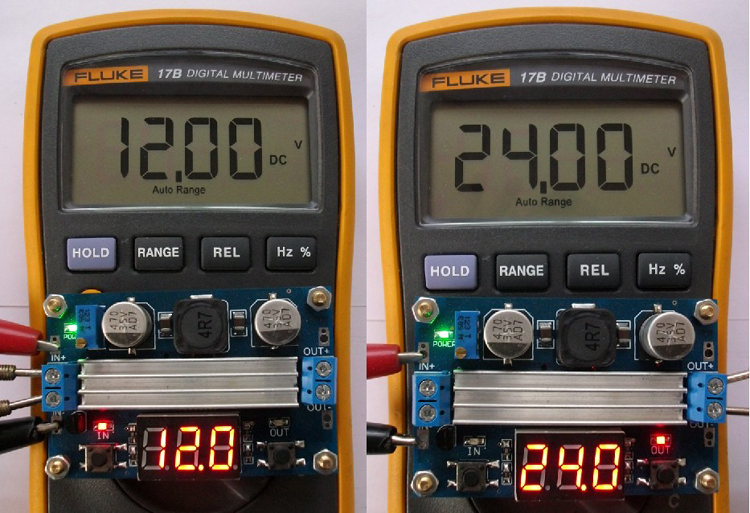

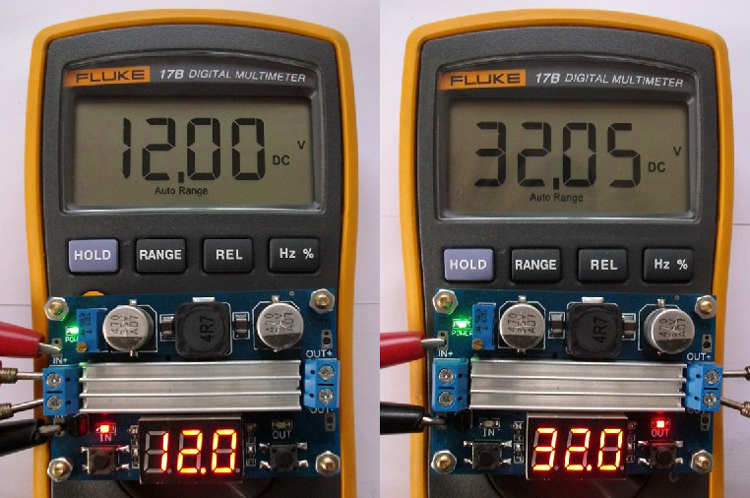

- Use manual:
- . Connect load at OUT+ and OUT- at first.Please note the positive and negative.
- . Connect power supply at IN+ and IN-.Please note the positive and negative.
- . Press the button to switch the display input or output voltage value.
- Warm tip:
When the high power load is connected, because the shock current of the start-up is very limited, it is recommended to start up and then connect the load.
- Application:
1>. Ordinary power supply
2>. Battery charger
3>. LED drive power
4>. Instrument voltage display
5>. Test meter
6>. Circuit test
- Frequency asked questions:
1>. Can it output 35V at 6A?
Q : No,it can not.The output max is 100W.Only 75W for stable operation.
2>. Can it meet : input 12V and output 5V?
Q : No,it can not.It is step up module. The output must higher input
