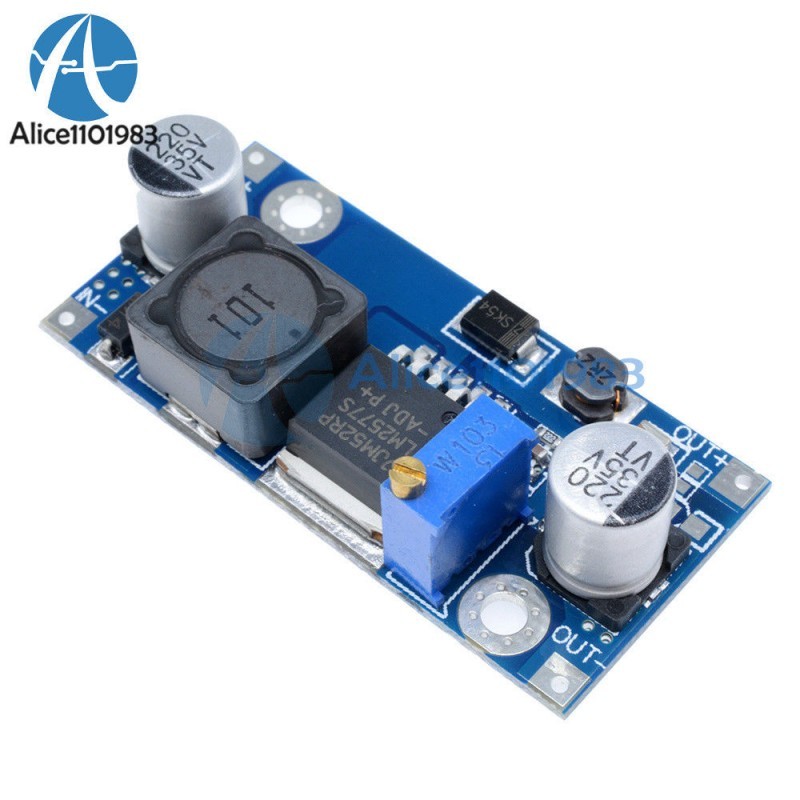

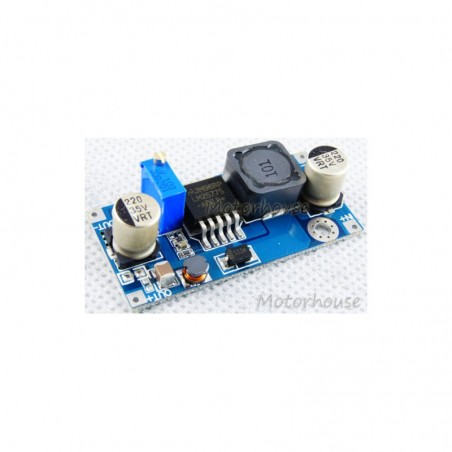

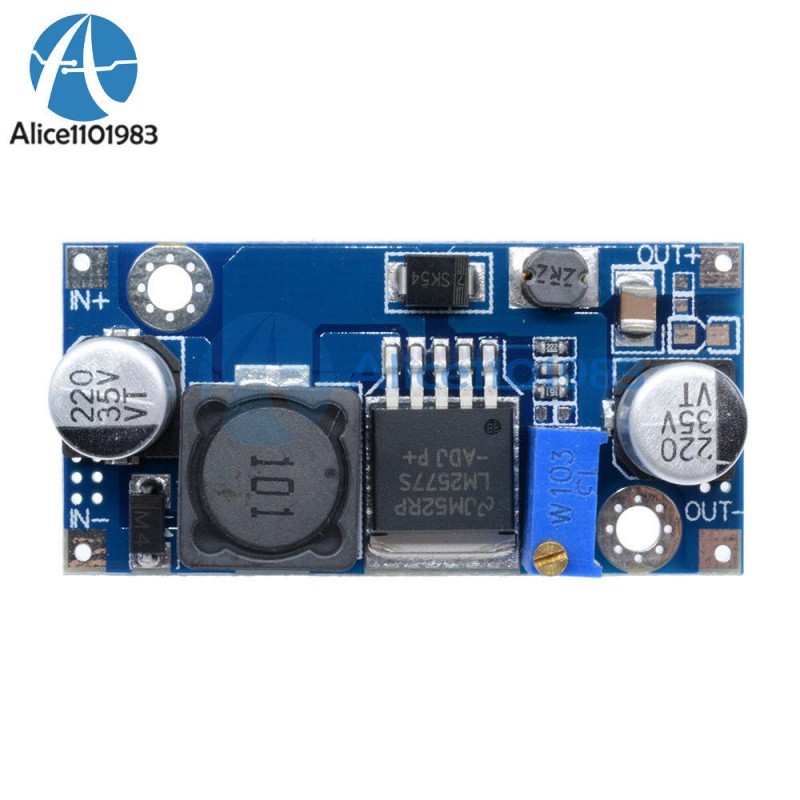

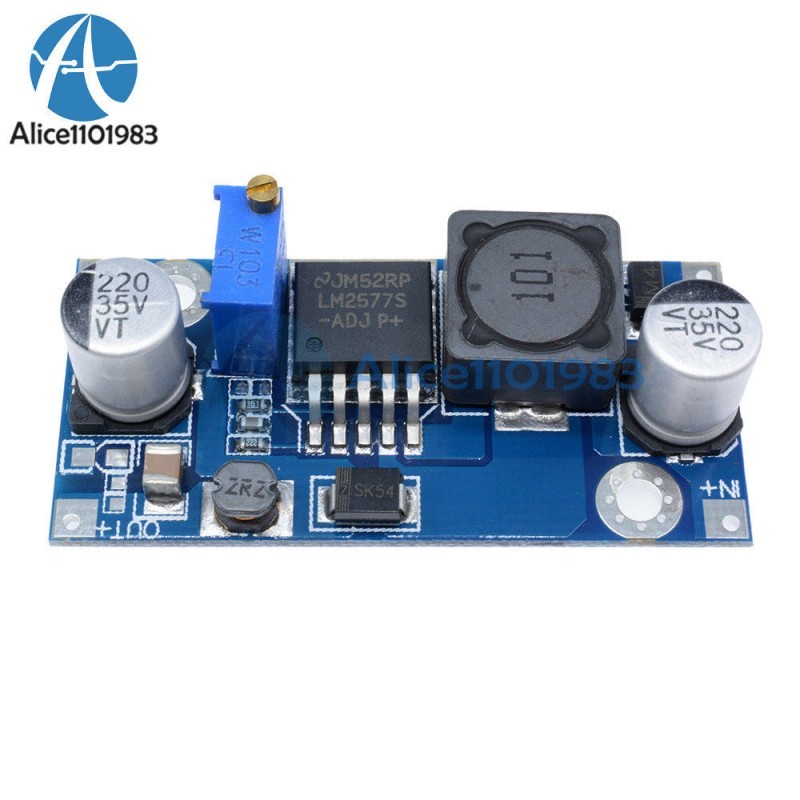

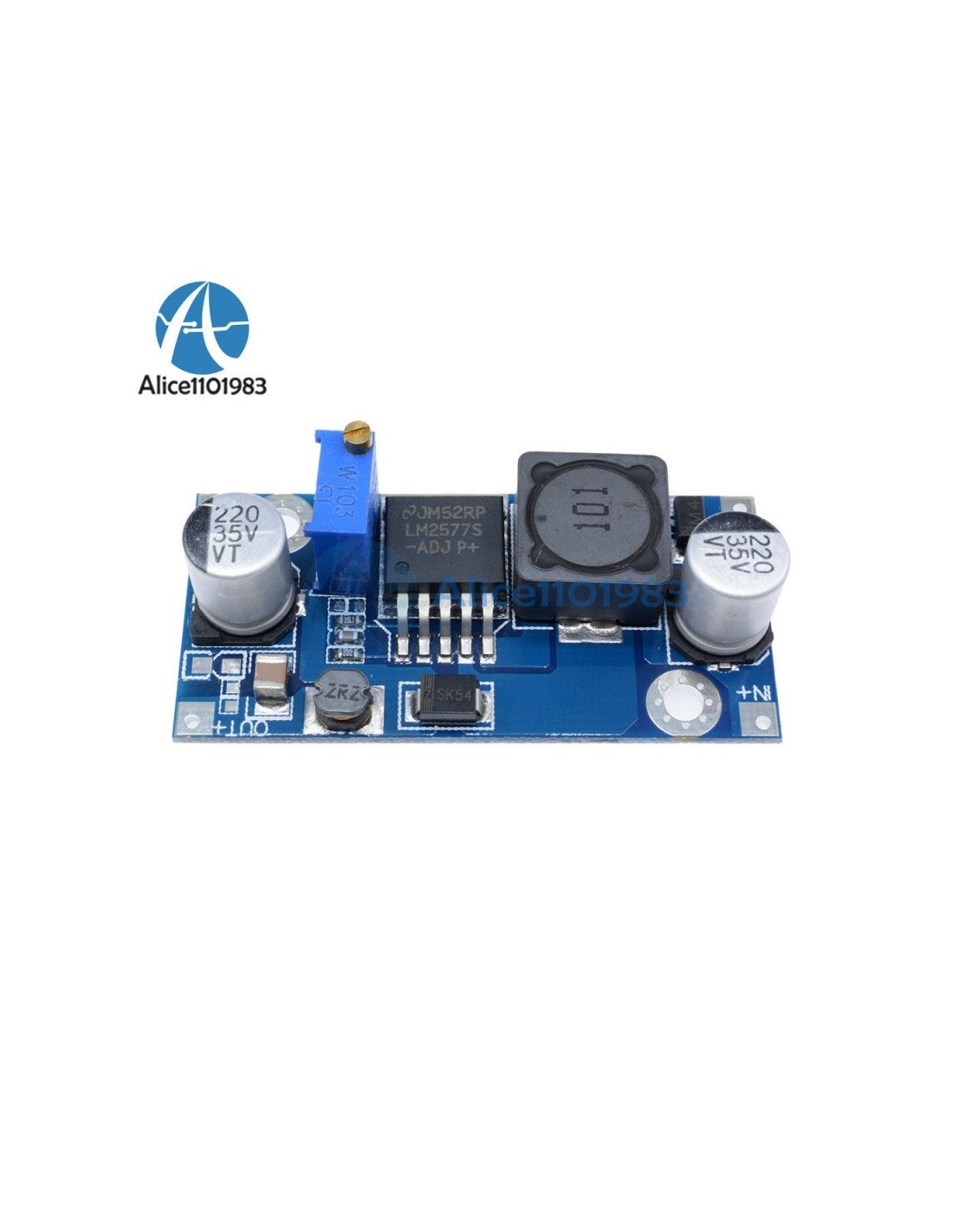

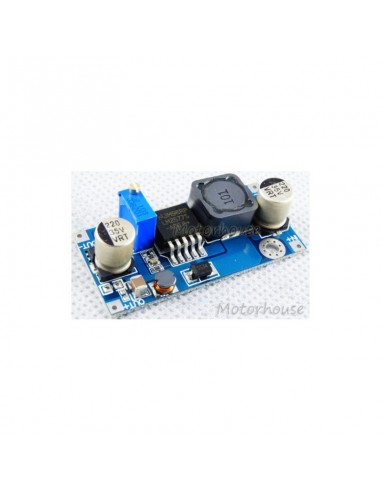

. Wide Input voltage: 3.5V-35V
2. Output Voltage: 4-35V (Adjustable)
3. Output current: rated current 3A MAX ( Heat-sink Needed)
4. If you need its output power greater than 15W, please add with heat-sink
5. Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
6. Switching Frequency: 50KHz
7. Rectifier: Non-Synchronous Rectification
8. Short circuit protection: current limiting, since the recovery
9. Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
10. Full load temperature rise: 40 ℃
11. Load regulation: ± 0.5%
12. Voltage regulation: ± 0.5%

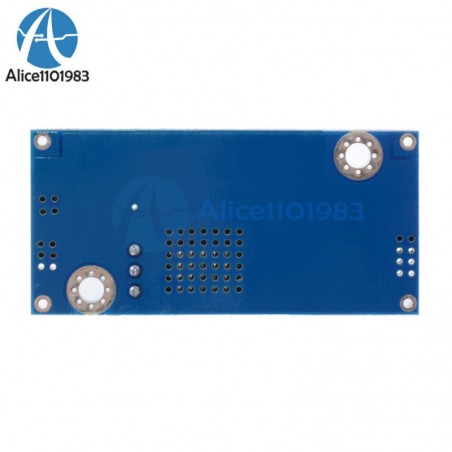

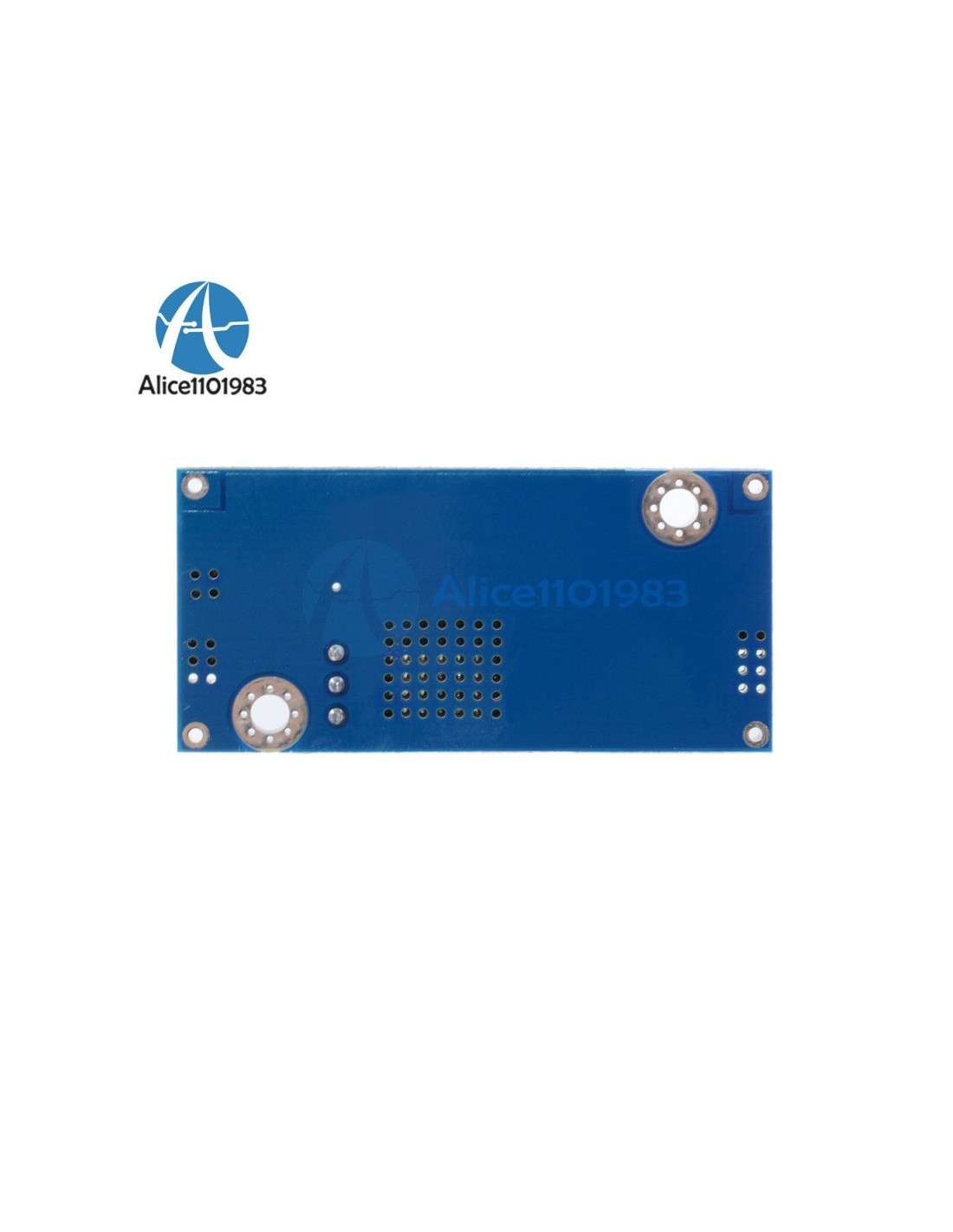

13. Size：48*23 mm
