UNOPROLOGIC USB-CPLD
DEVELOPMENT
SYSTEM

The UnoProLogic is an easy to use
CPLD development system. It includes
a four Channel ADC and built in
programmer

The UnoProLogic makes programmable logic easy with an all
inclusive development platform. It includes an Altera 5M570 CPLD,
JTAG programmer, and a four channel ADC with 300KS/second sample rate.
You can create your HDL code, program it into the CPLD and interact with the hardware
via a Windows PC.

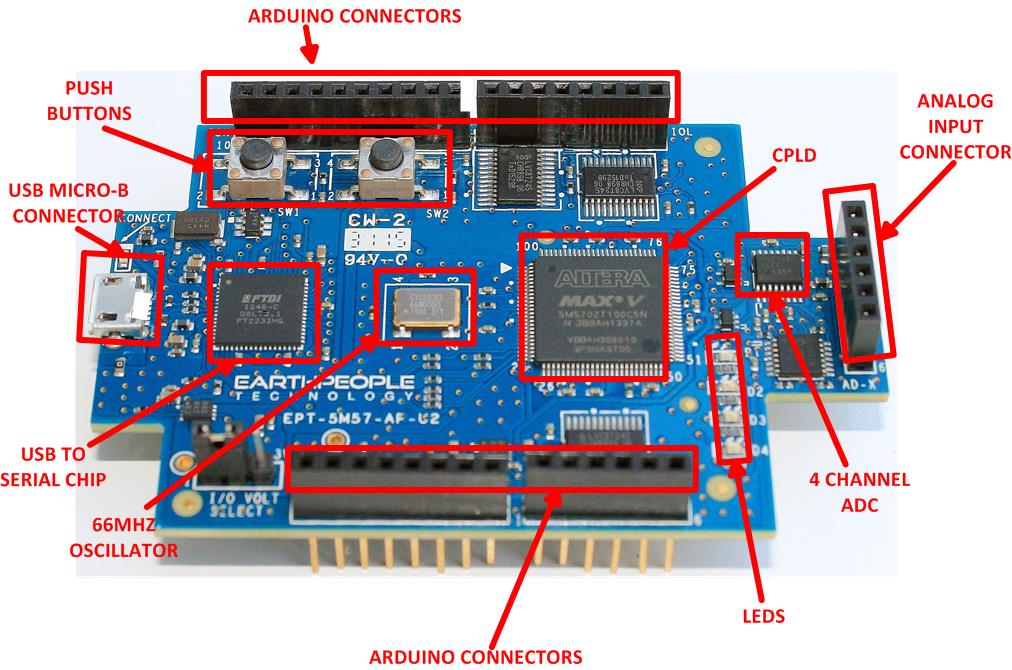

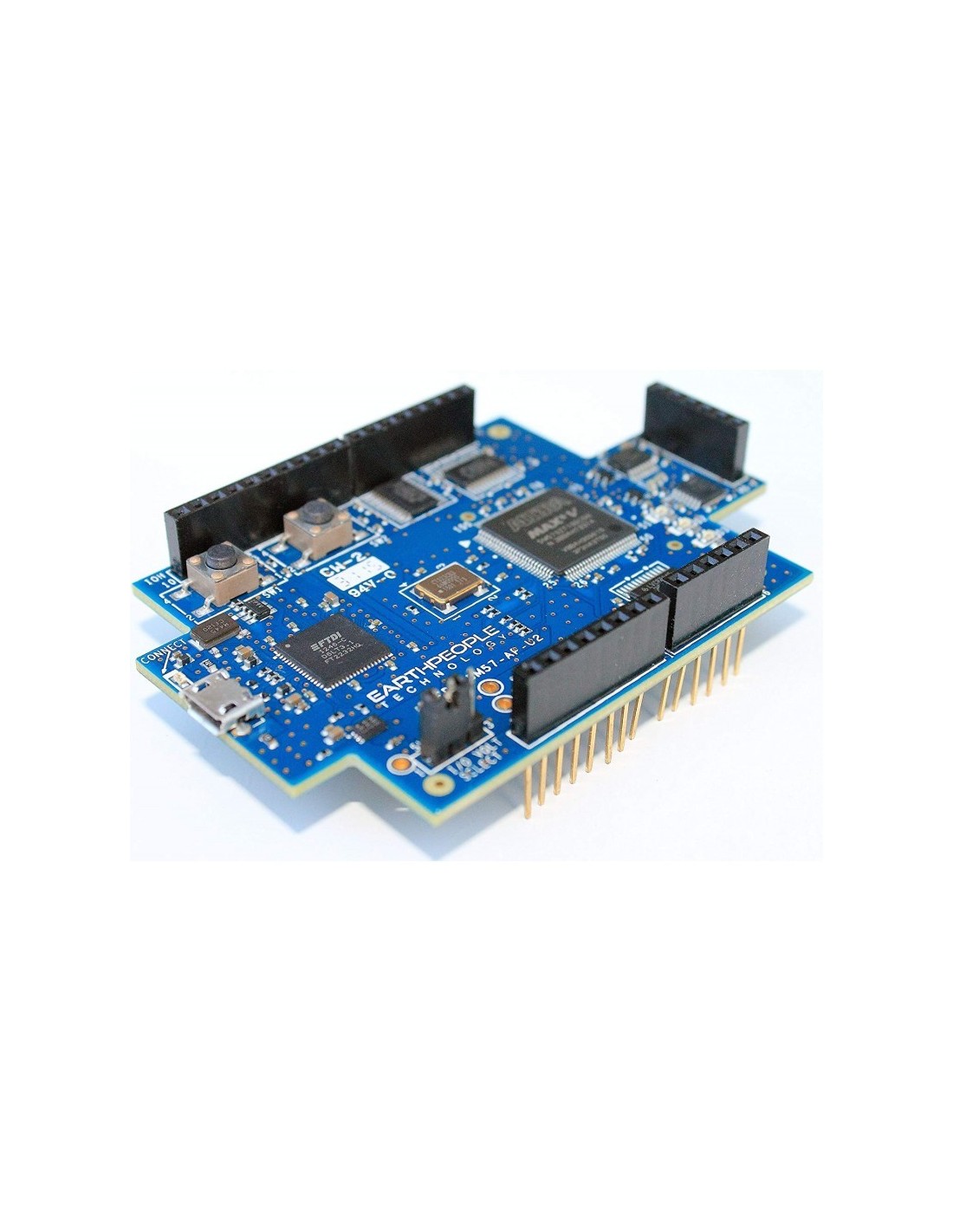

UnoProLogic2 Hardware Overview

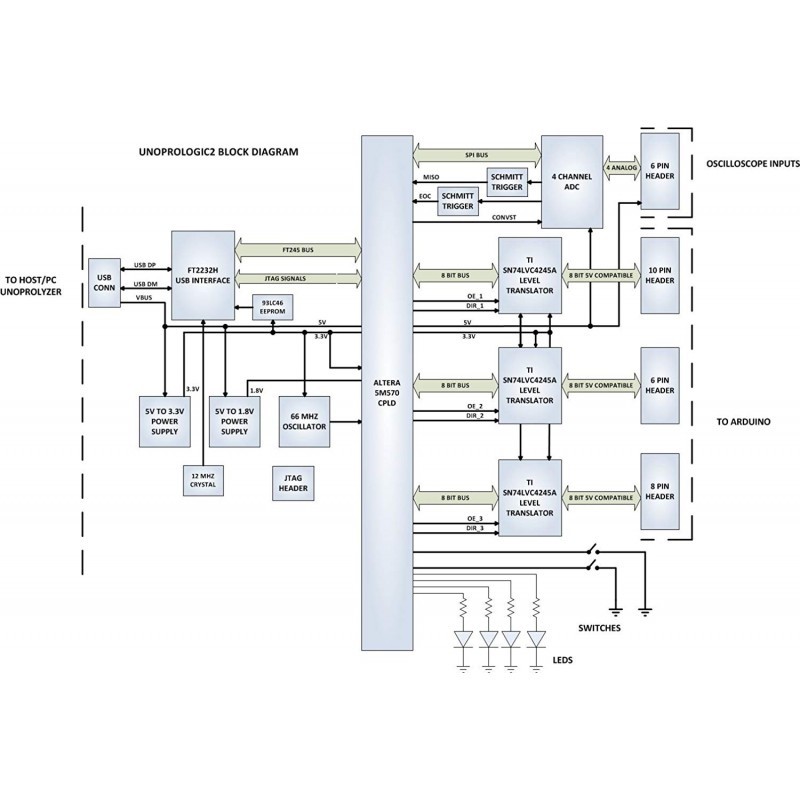

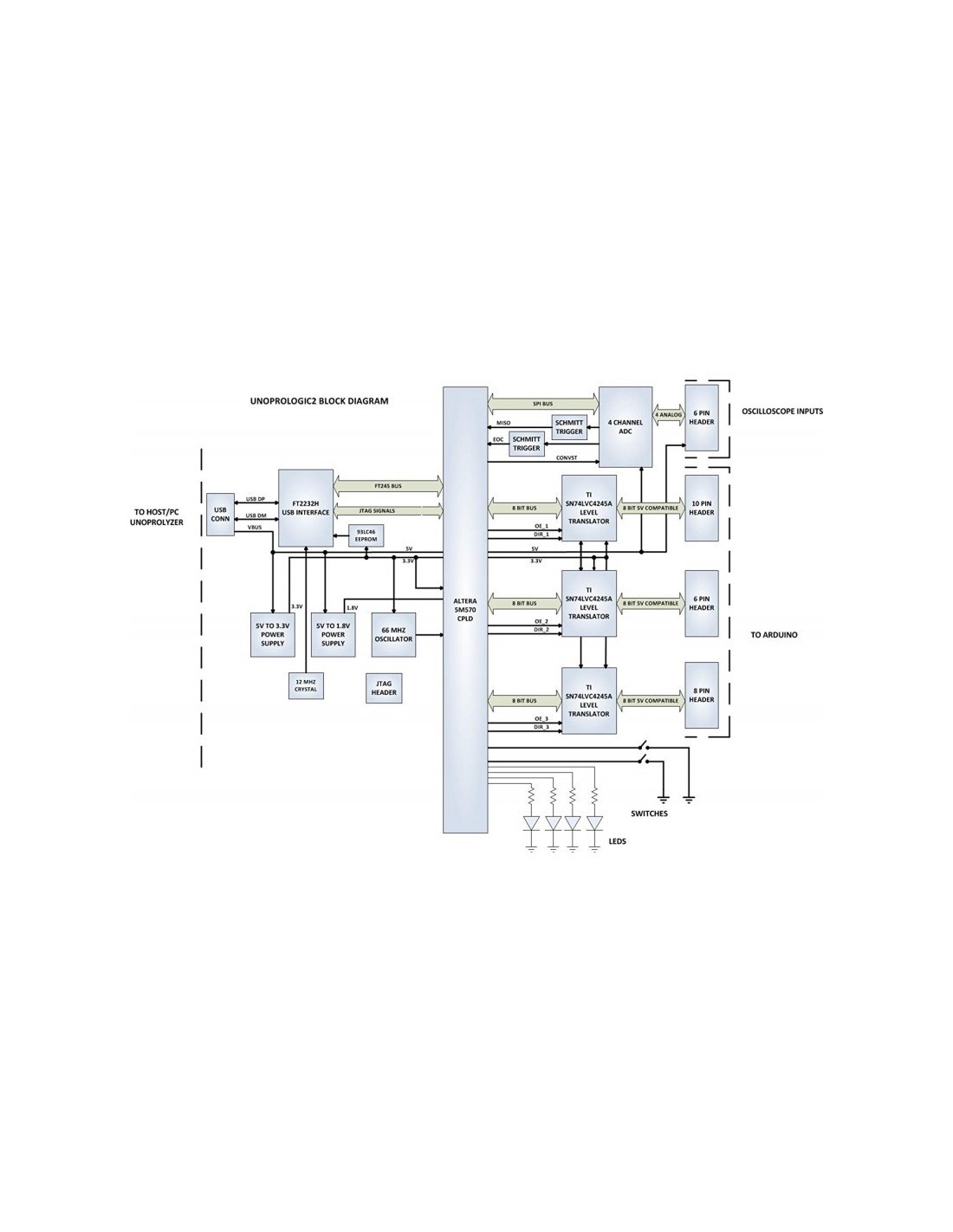

EPT-5M57-AP-U2 Block Diagram

Hardware Features:

Four Channel ADC with 300KS/second
Altera 5M570 CPLD with 440 MacroCells
66 MHz Oscillator
FTDI FT2232H High Speed USB data transfer
24 User I/O's with 3.3/5 Volts Selection
Four Green LED's
Two PCB switches

The UnoProLogic DVD provides detailed step by step instructions
to quickly guide the user to create a project. The entire Quartus II software
is included on the DVD. This let's you bypass the lengthly download process involved
in getting the 4.6 GB file. Once the Quartus software is on your desktop, we will show you how
to create a project, write you first LED blinky code, compile and program the CPLD.

Beginners CPLD Development User Manual, includes step by step guide to
building your first programmable logic project
Programming of CPLD from Quartus II Software

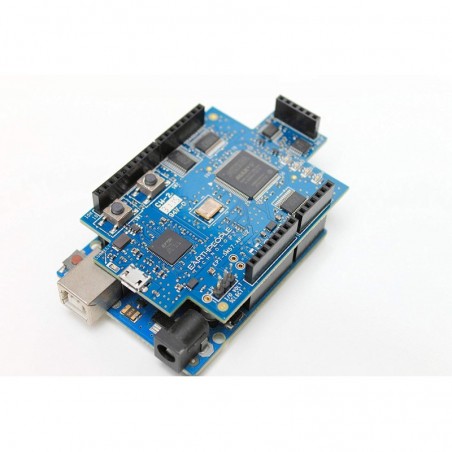

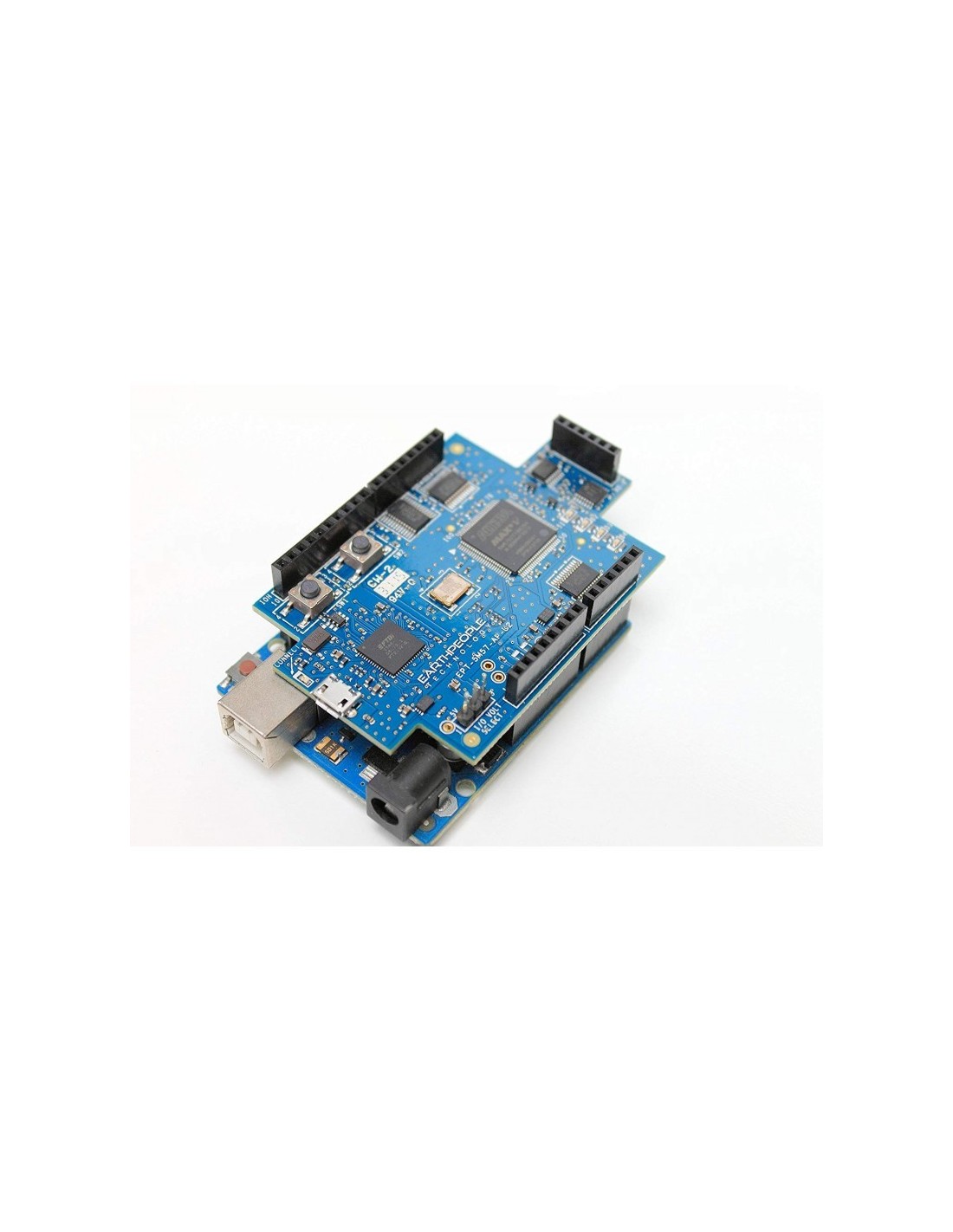

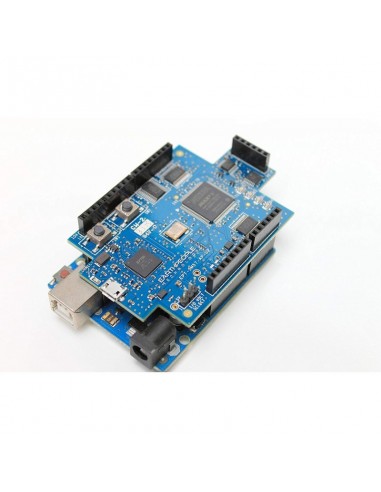

High Speed Data Transfer for Your Arduino or any microcontroller
High Speed Clock Available
No USB Driver Programming
