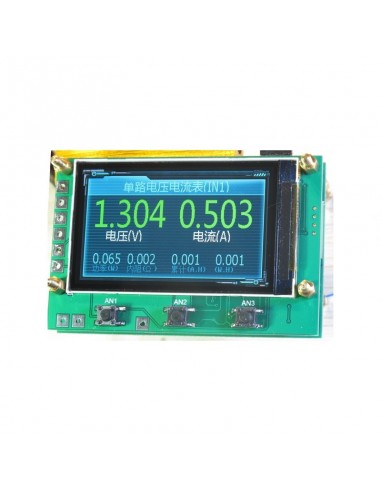

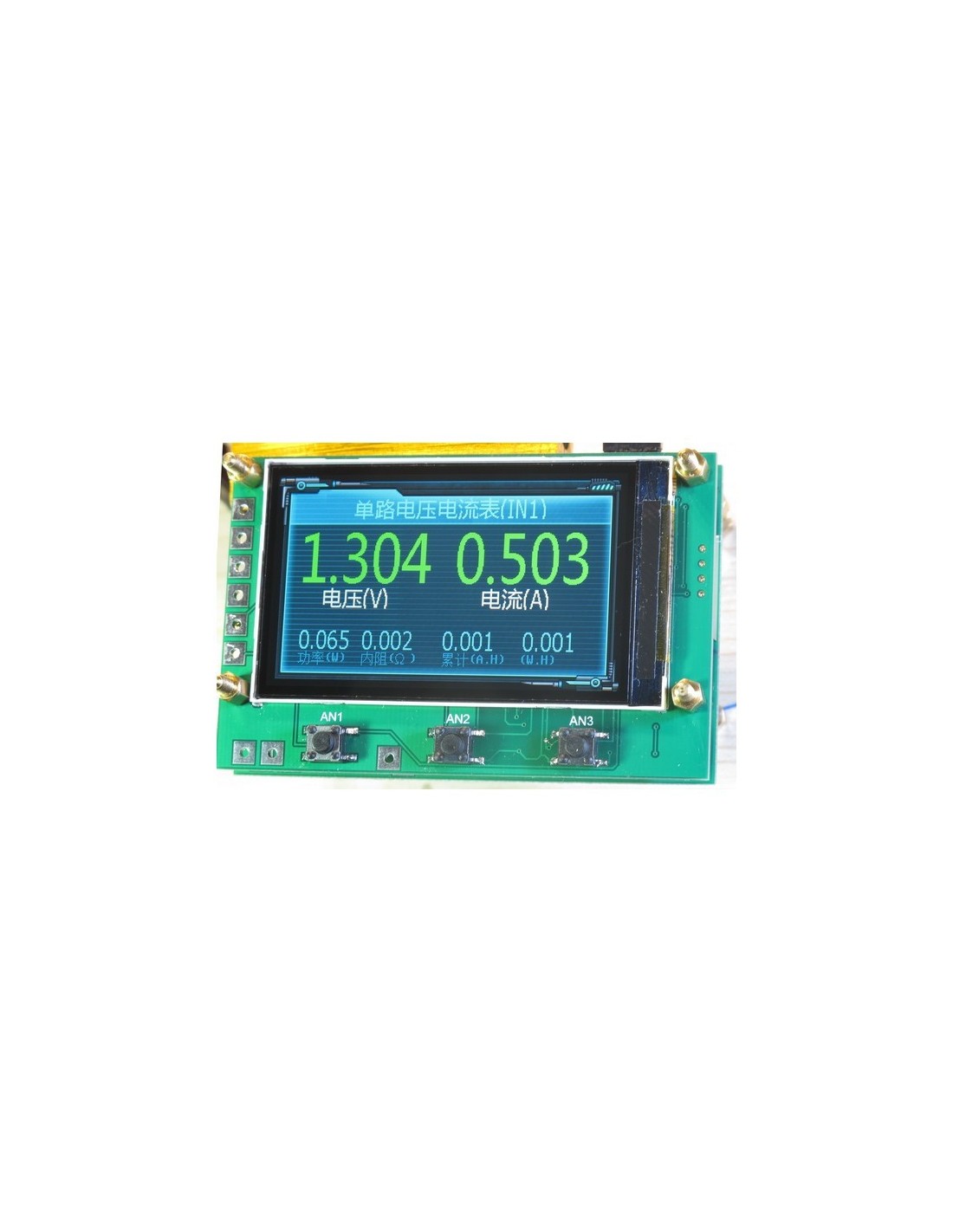

T50WPLUS TFT DUAL COLOR DISPLAY PROJECT HEADER

Dual voltage current meter head, based on Usart-GPU technology, can be customized to display their own interface, easy to apply to the project or product, fully meet the product display interface

The main parameters and functions

• 0 ~ 36V voltage, 0 ~ 5A current, common ground, 5V input (expandable 7 ~ 28V input)
• Support all serial port function, you can customize a variety of fonts and pictures
• 12-bit AD sampling accuracy
• Large characters display, curve display, characters + curve display, free to switch
• After the split diverter to change the two resistors, the maximum support 60V50A
• The button function can be defined by the GPU statement
