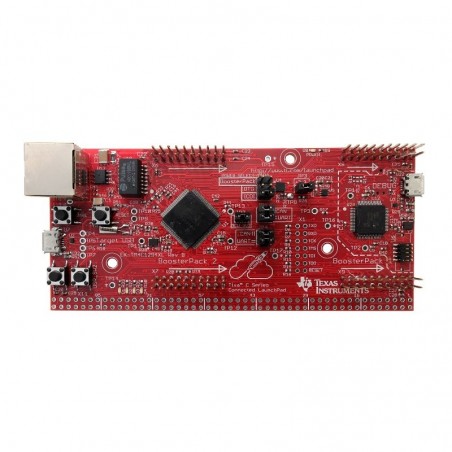

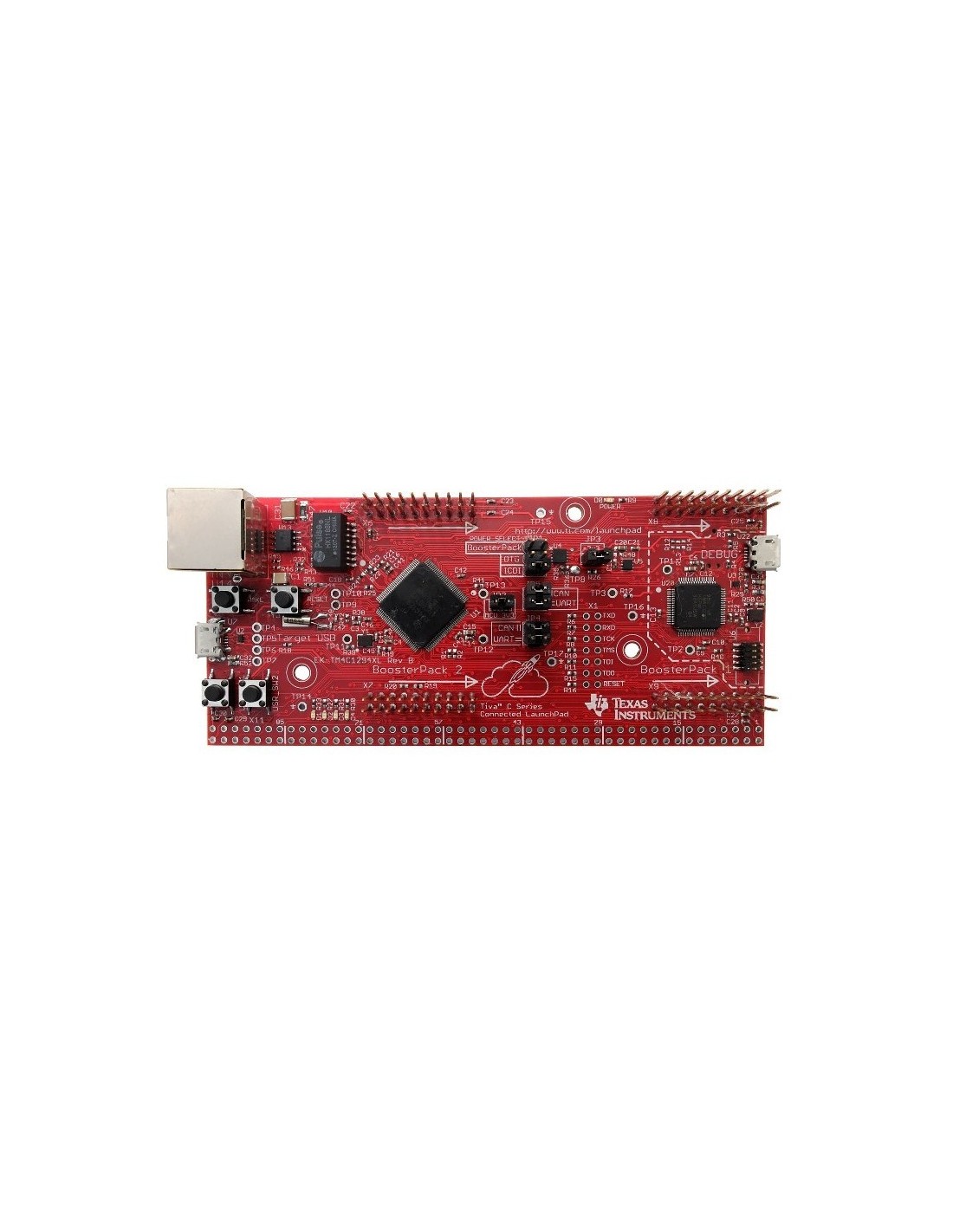

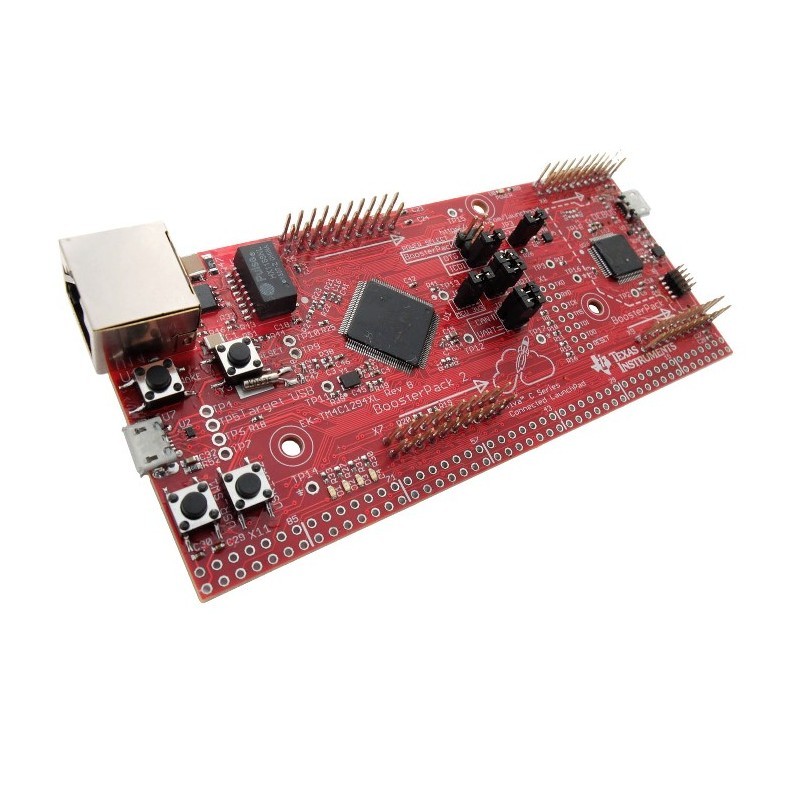

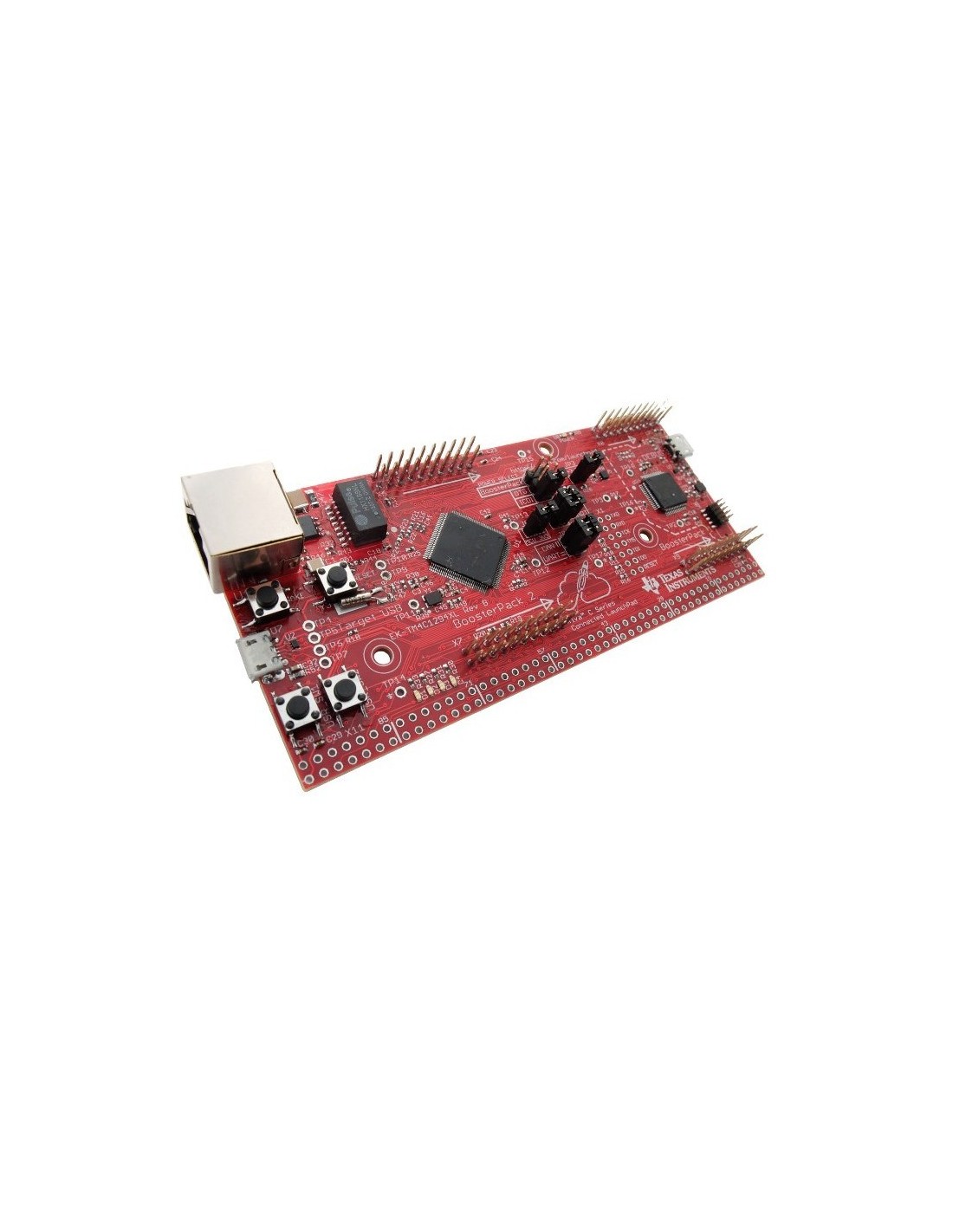

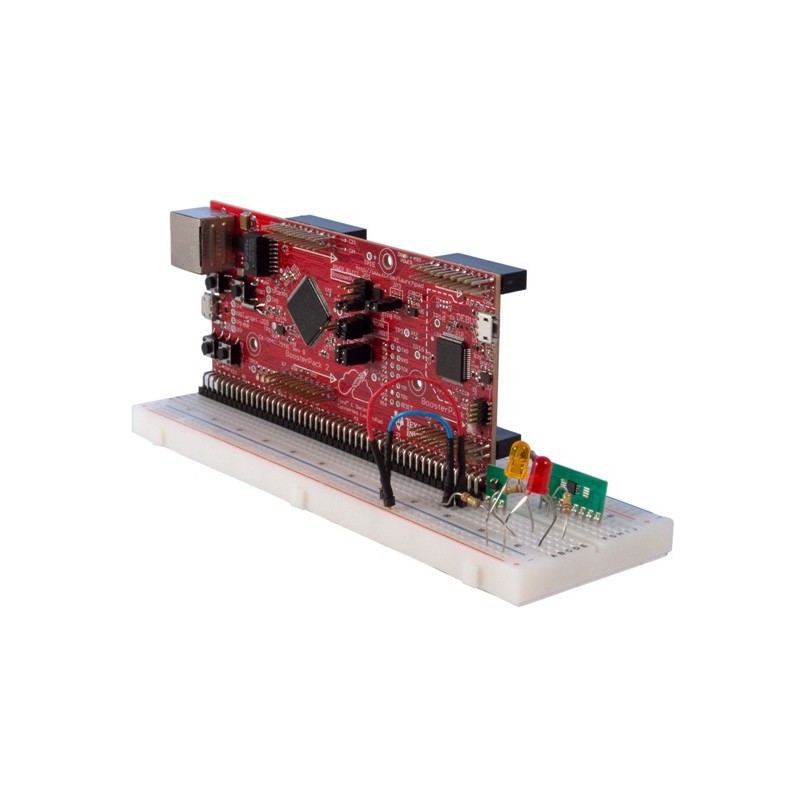

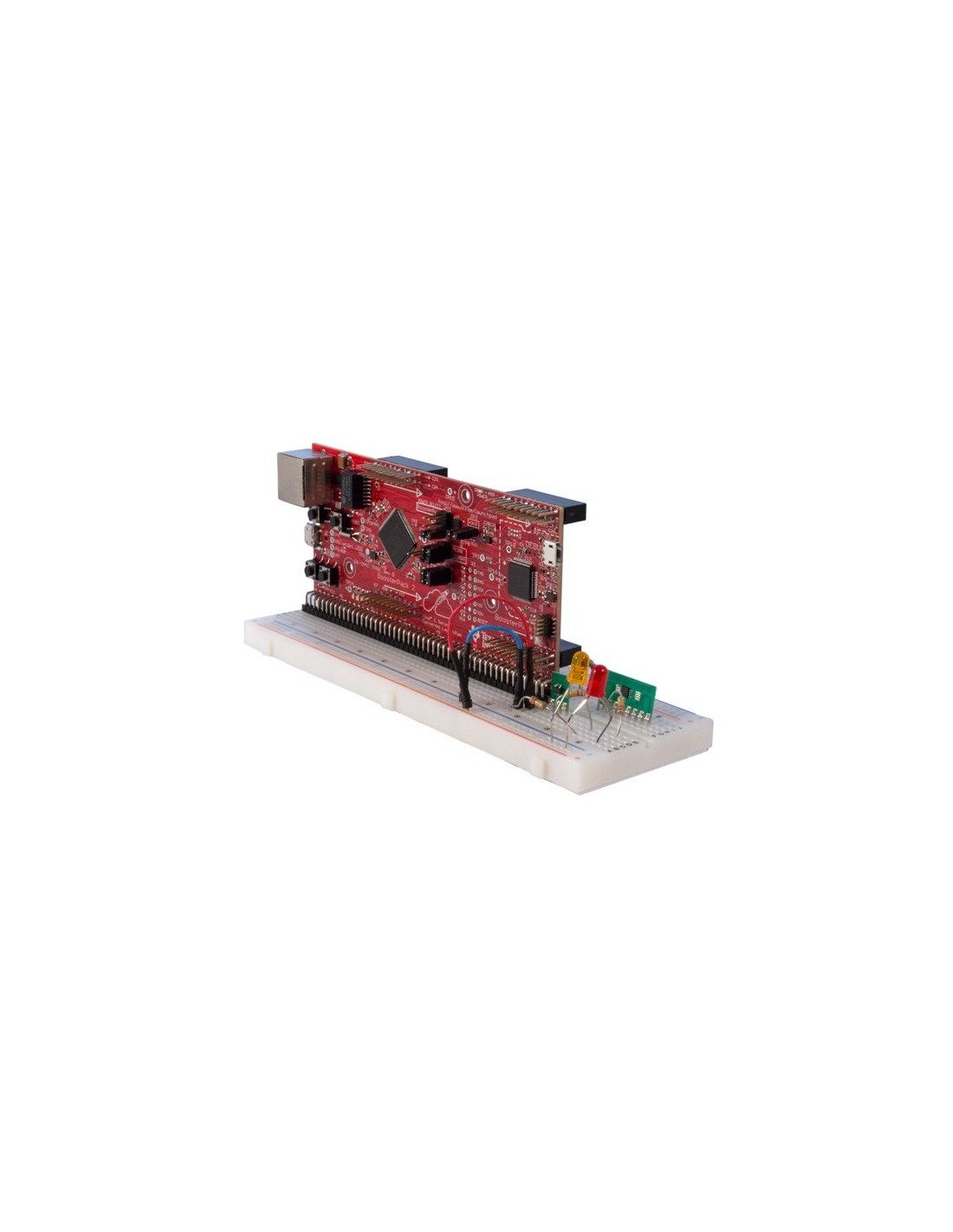

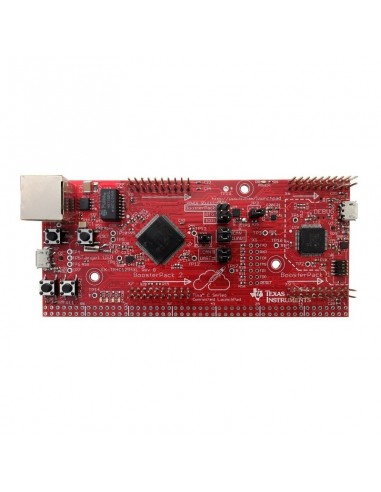

TM4C1294 TIVA C SERIES CONNECTED LAUNCHPAD ARM® CORTEX®-M4F
The TM4C1294 Connected LaunchPad Evaluation Kit is a low-cost development platform for ARM® Cortex-M4F-based microcontrollers. The Connected LaunchPad design highlights the TM4C1294NCPDT MCU with its on-chip 10/100 Ethernet MAC and PHY, USB 2.0, hibernation module, motion control pulse-width modulation and a multitude of simultaneous serial connectivity.
Key Document
- Meet the Tiva C Series TM4C1294 (PDF 1887 KB)
08 Jan 2014 3,362 views
- Tiva C Series TM4C1294 Connected LaunchPad Evaluation Kit (Rev. C) (PDF 847 KB)
07 Oct 2016 6,598 views
- Lift-off with the LaunchPad Development Ecosystem (Rev. B) (PDF 10478 KB)
25 Sep 2015 5,397 views
Description
The TM4C1294 Connected LaunchPad Evaluation Kit is a low-cost development platform for ARM® Cortex-M4F-based microcontrollers. The Connected LaunchPad design highlights the TM4C1294NCPDT MCU with its on-chip 10/100 Ethernet MAC and PHY, USB 2.0, hibernation module, motion control pulse-width modulation and a multitude of simultaneous serial connectivity.
Features
- High Performance TM4C1294NCPDT MCU:
- 120MHz 32-bit ARM Cortex-M4 CPU
- 1MB Flash, 256KB SRAM, 6KB EEPROM
- Integrated 10/100 Ethernet MAC+PHY, data protection hardware, 8x 32-bit timers
- Dual 12-bit 2MSPS ADCs, motion control PWMs
- USB H/D/O, and many additional serial communication interfaces
- Dual, stackable BoosterPack XL connection sites
- Cloud-based, Exosite QuickStart Application
- TivaWare 2.1
- On-board, in-circuit debug interface (ICDI)
- Multiple development tool chain support: CCS, Keil, IAR, Mentor & GCC
What's Included
- TM4C1294 Connected LaunchPad evaluation kit (EK-TM4C1294XL PCBA w/MCU)
- Retractable Ethernet cable
- USB debug cable
- Read Me First instructions
EK-TM4C1294XL TivaWare for C Series software is available for free downloads.
