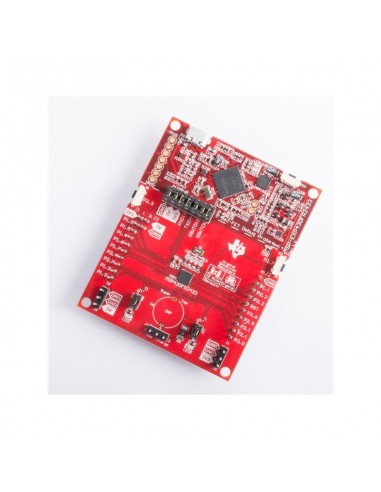

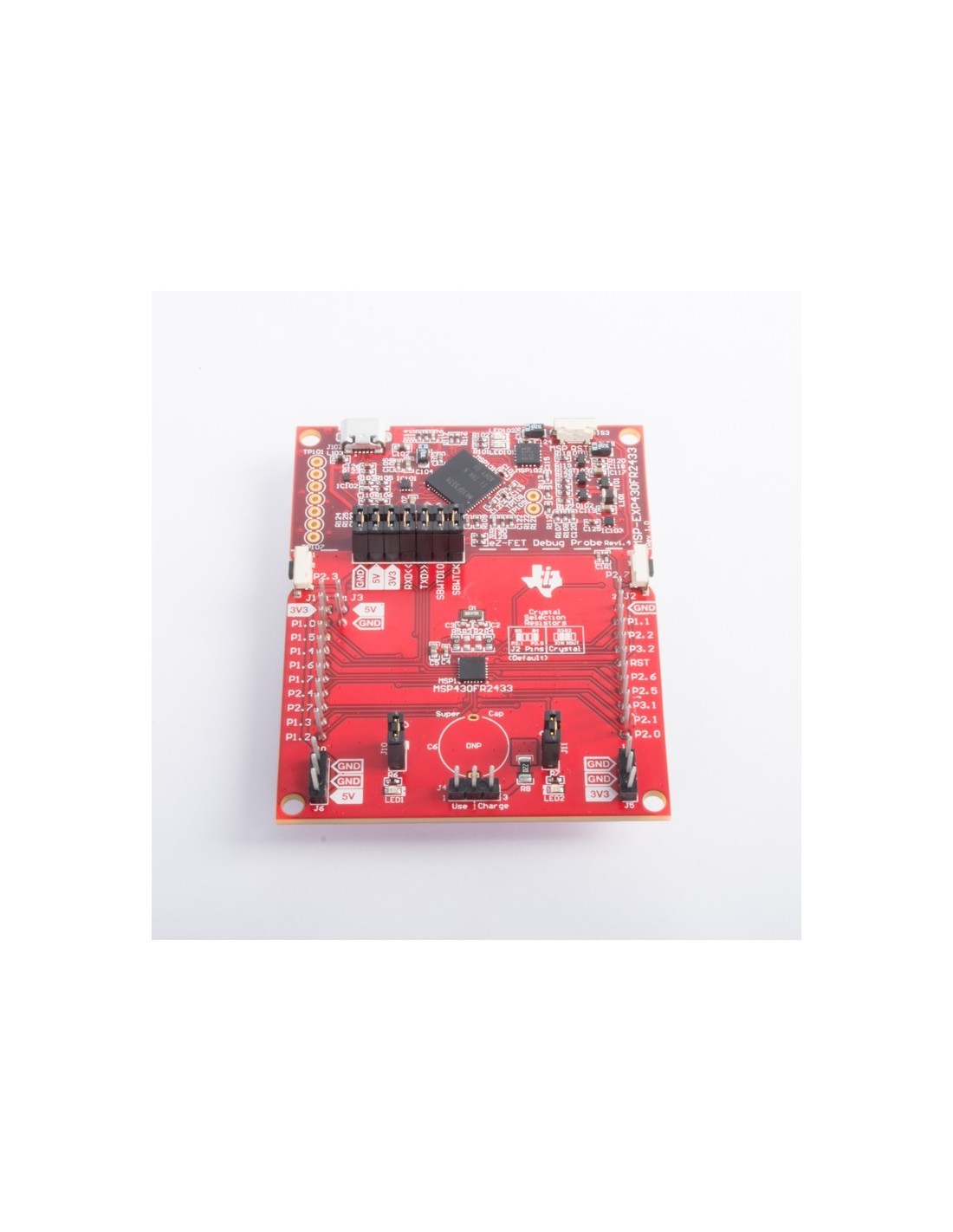

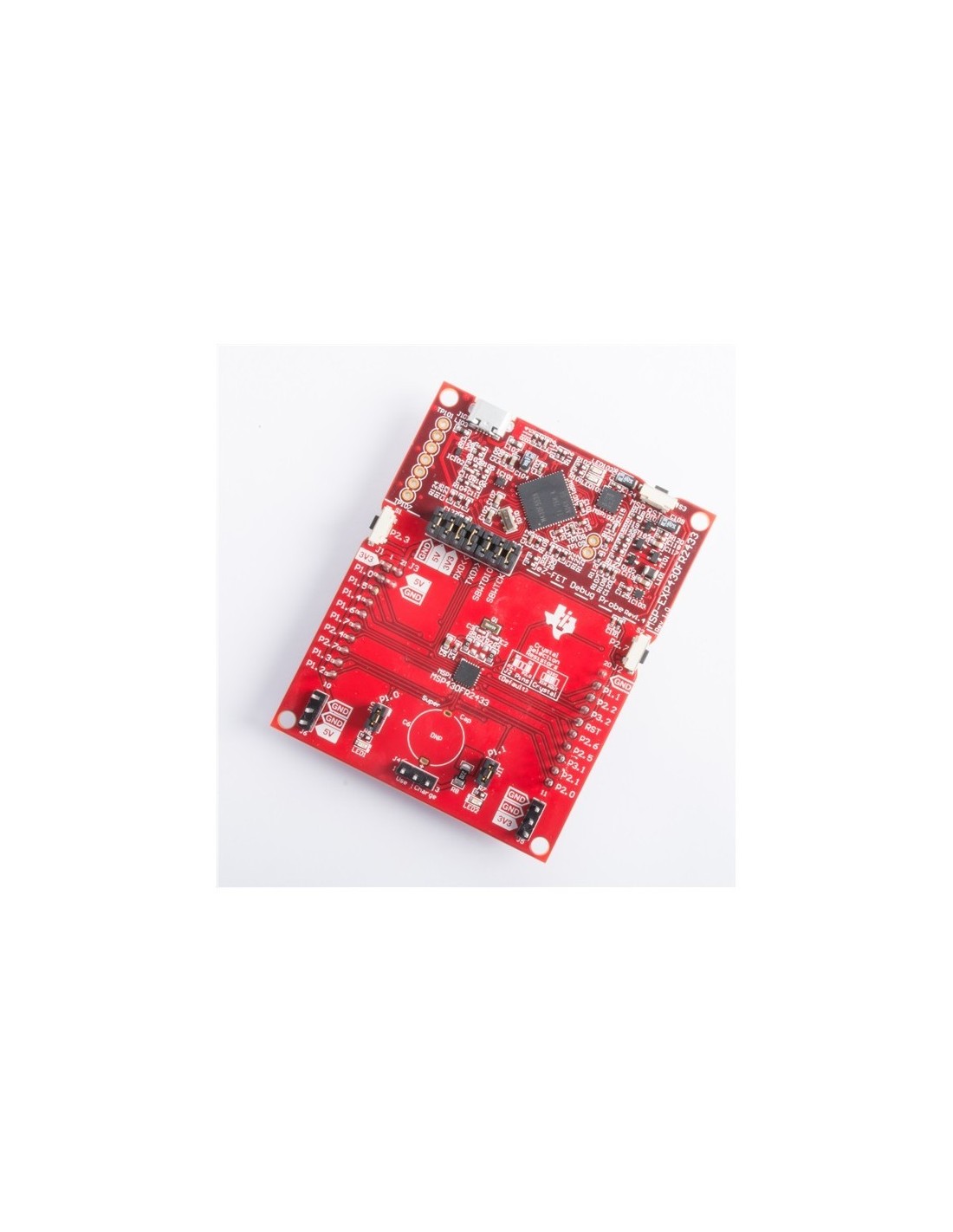

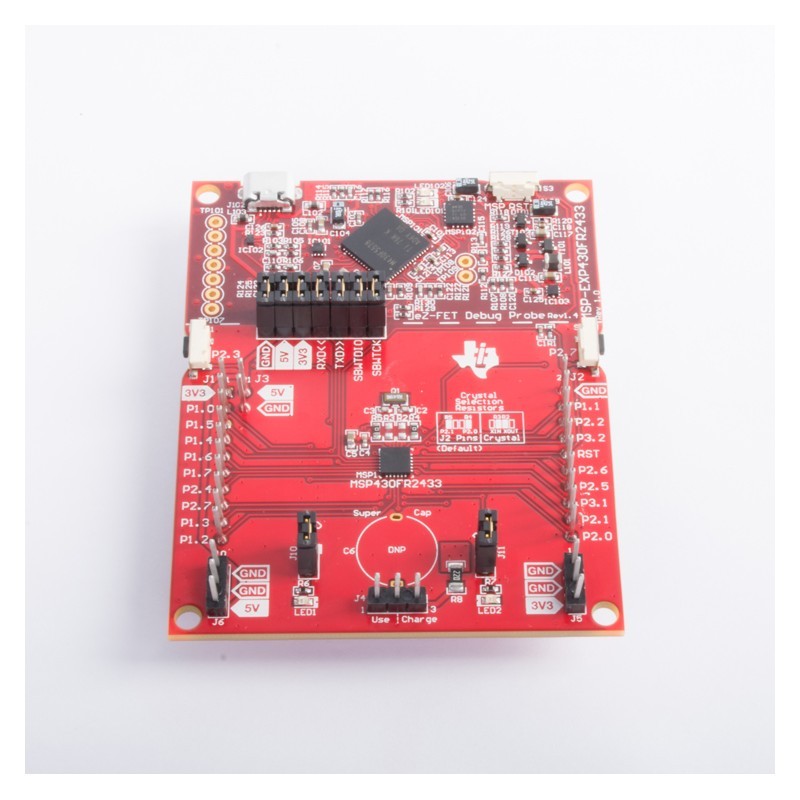

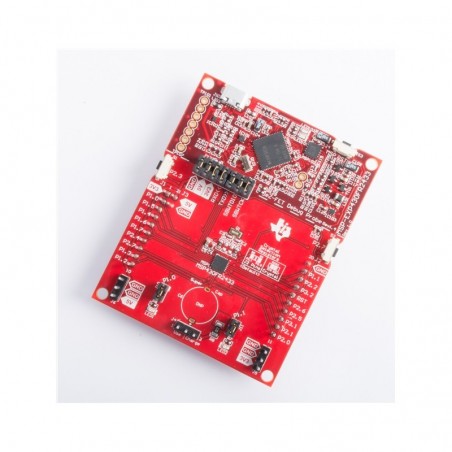

MSP430FR2433 LAUNCHPAD™ MSP-EXP430FR2433

The board includes 2 buttons and 2 LEDs for creating a simple user interface. It also supports using a supercapacitor (needs to be purchased and installed by the user) that acts like a rechargeable battery, enabling standalone applications without an external power supply.

The 16MHz MSP430FR2433 device features 15.5KB of embedded FRAM (Ferroelectric Random Access Memory), a non-volatile memory known for its ultra-low power, high endurance, and high speed write access. Combined with the 4 KB of on-chip SRAM, users have access to 15.5KB of memory to split between their program and data as required.  For example, a data logging application may require a large data memory with a relatively small program memory, so the memory may be allocated as required between program and data memory.

Features

• ULP FRAM technology based MSP430FR2433 16-bit MCU
• EnergyTrace++ Technology available for ultra-low-power debugging
• 20-pin LaunchPad kit standard leveraging the BoosterPack ecosystem
• On-board eZ-FET debug probe
• 2 buttons and 2 LEDs for user interaction

What's Included

• 1 x MSP-EXP430FR2433 LaunchPad Development Kit
• 1 x Micro USB Cable
• 1 x Quick Start Guide

Key Document

• View All Technical Documents (4)
