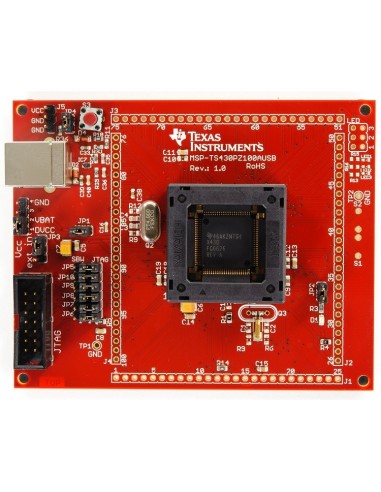

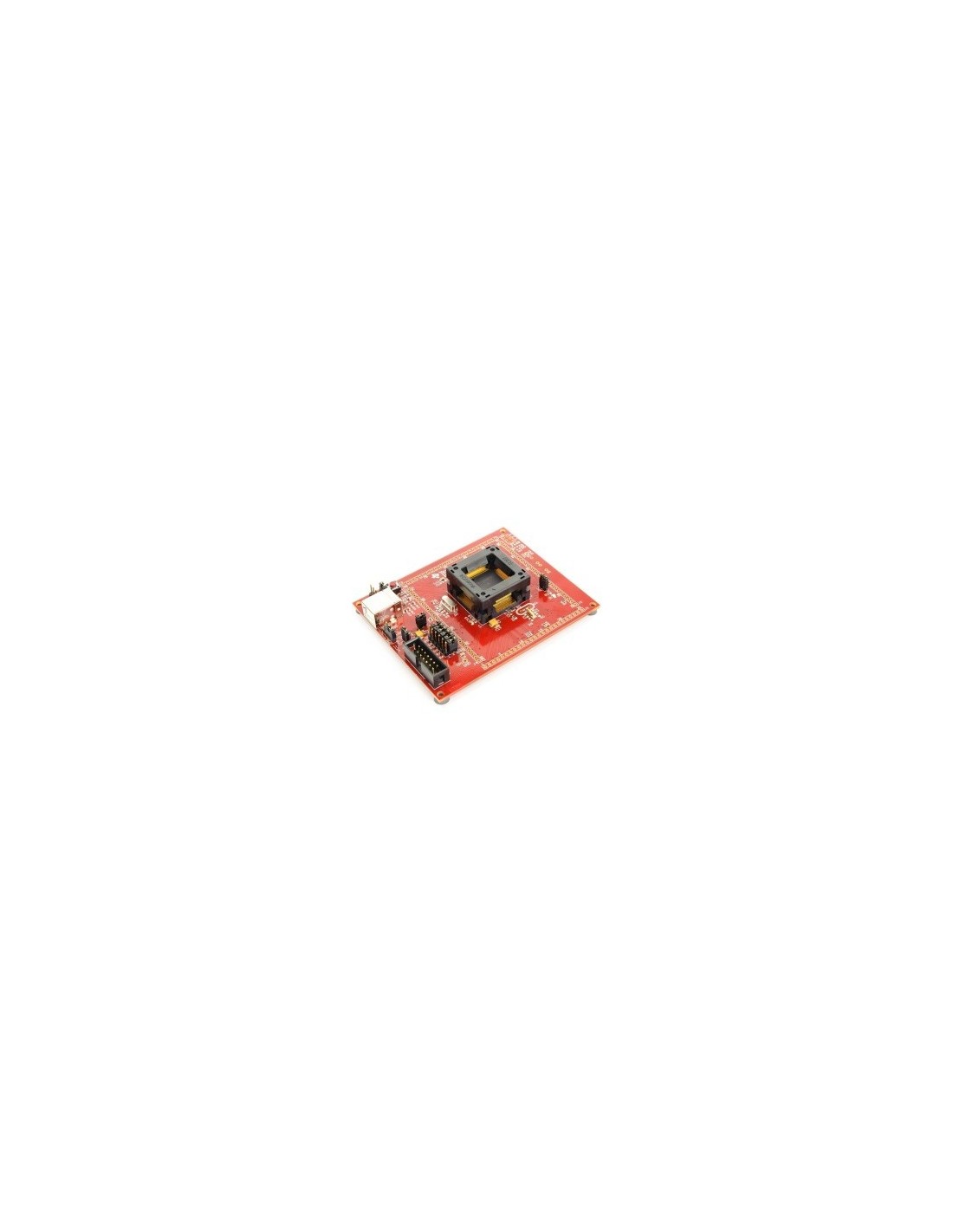

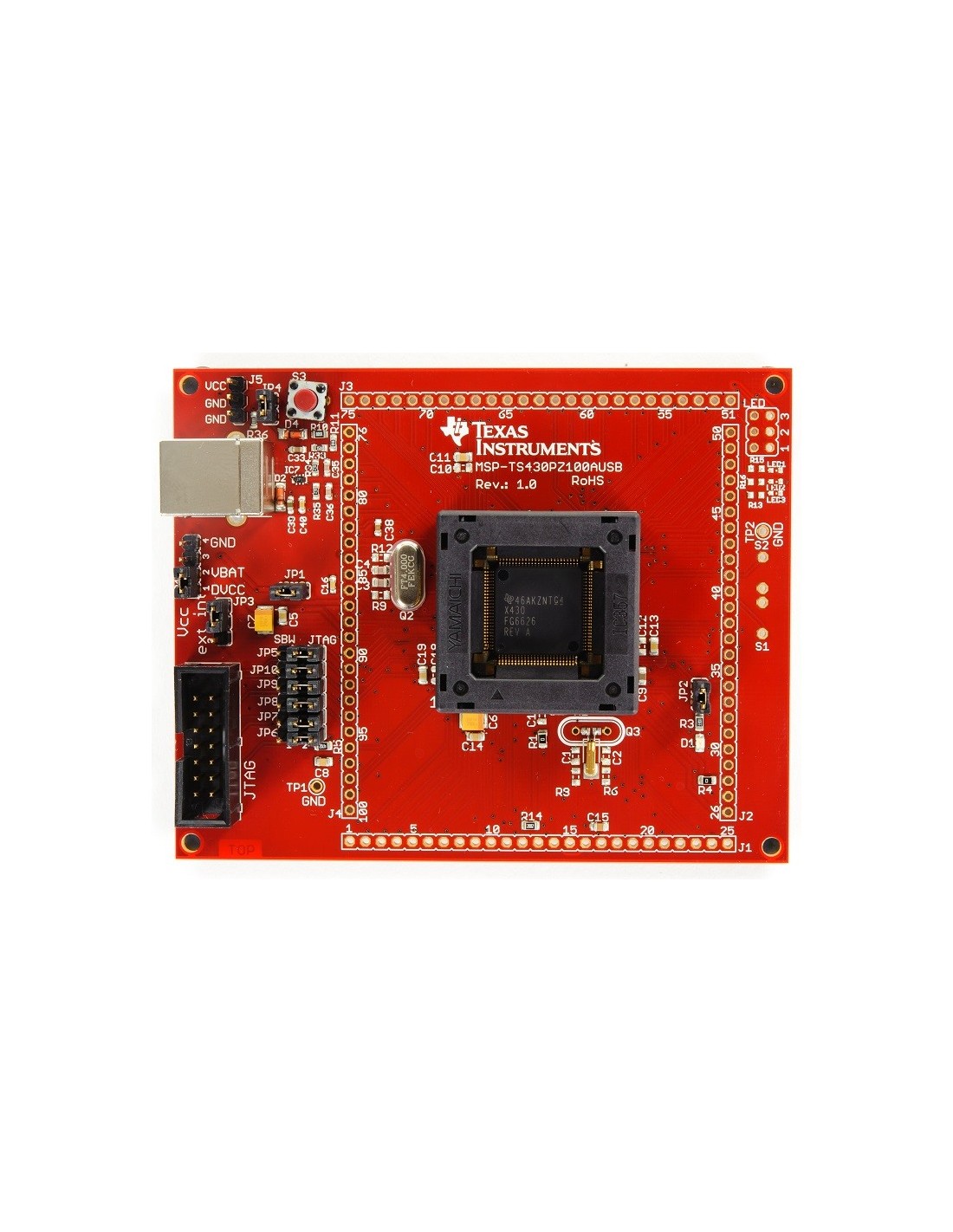

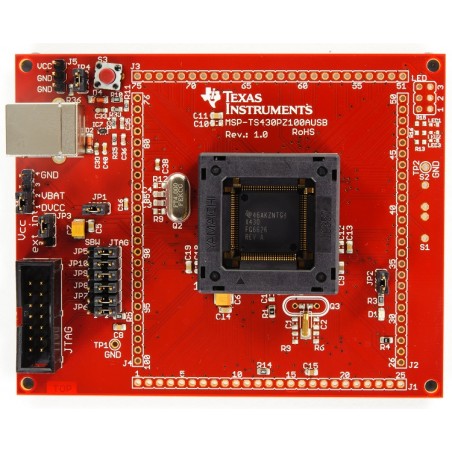

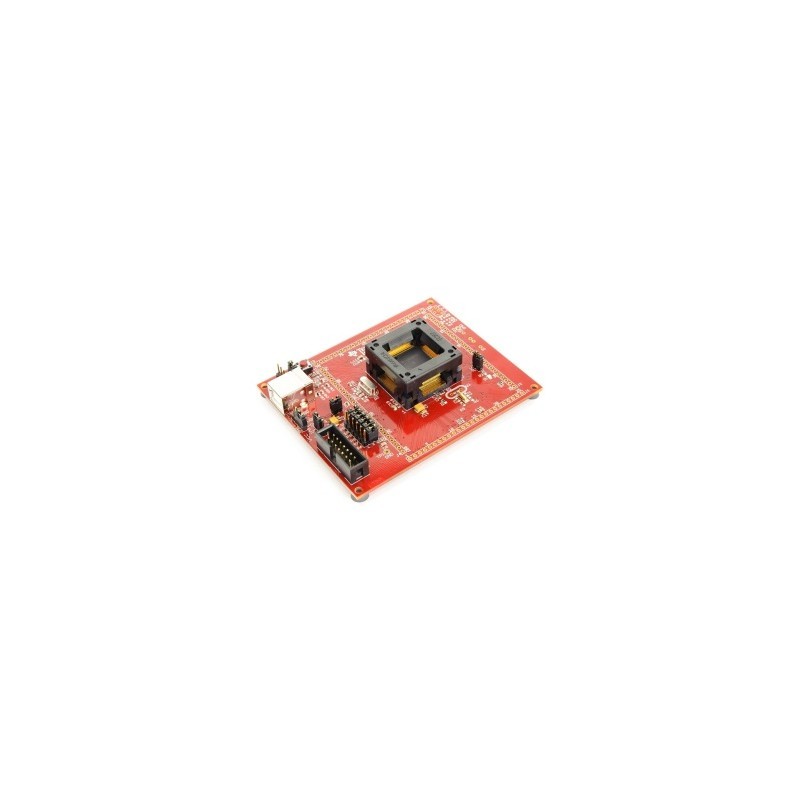

MSP-TS430PZ100AUSB - 100-PIN TARGET DEVELOPMENT BOARD FOR MSP430FG6X MCUS

The MSP-TS430PZ100AUSB is a standalone 100-pin ZIF socket target board used to program and debug the MSP430 MCU in-system through the JTAG interface or the Spy Bi-Wire (2-wire JTAG) protocol.

Device Support: The MSP-TS430PZ100AUSB development board supports MSP430FG6x2x MCUs in a 100-pin LQFP package (TI package code: PZ).

Features

• Development board (MSP-TS430PZ100AUSB) with a 100-pin ZIF socket fitting MSP430 derivatives in 100-pin QFP (PZ) packages includes an LED indicator, JTAG adapter, and header pin-outs for prototyping
• Supports all debugging interfaces using a standard 14-pin JTAG header such as the MSP-FET. The flash emulation tool can be purchased independently or bundled with a target board (MSP-FET430U100AUSB)
