The ATxmega chip is a new generation of high-performance, low-power microcontrollers introduced by ATMEL. Compared with the previous mega series, xmega has added 12 ADCs and DACs, with up to 8 serial ports and up to 4 SPIs. With the AES and DES encryption engines, the second-generation picopower energy-saving technology has lower power consumption and higher speed, and its bulk price is also cheaper. The current simulators that support ATxmega are the JTAGICE mkII-CN and XMEGA PDI interface emulators independently developed by ATMEL Dragon, JTAGICE mkII, AVR ONE!, and Mcuzone Microcontroller Electronics. ATxmega's debugging interface is JTAG and PDI two kinds, A1 series and A3 series have JTAG and PDI two kinds of interfaces, A4 because the pin quantity limits, only PDI interface.

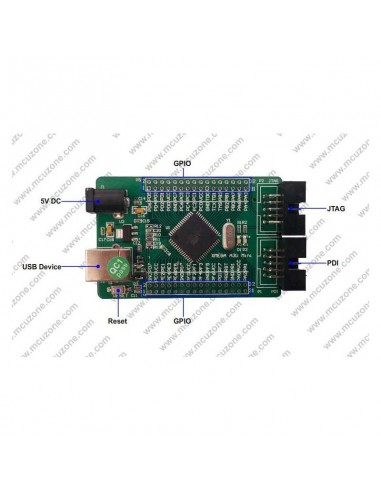

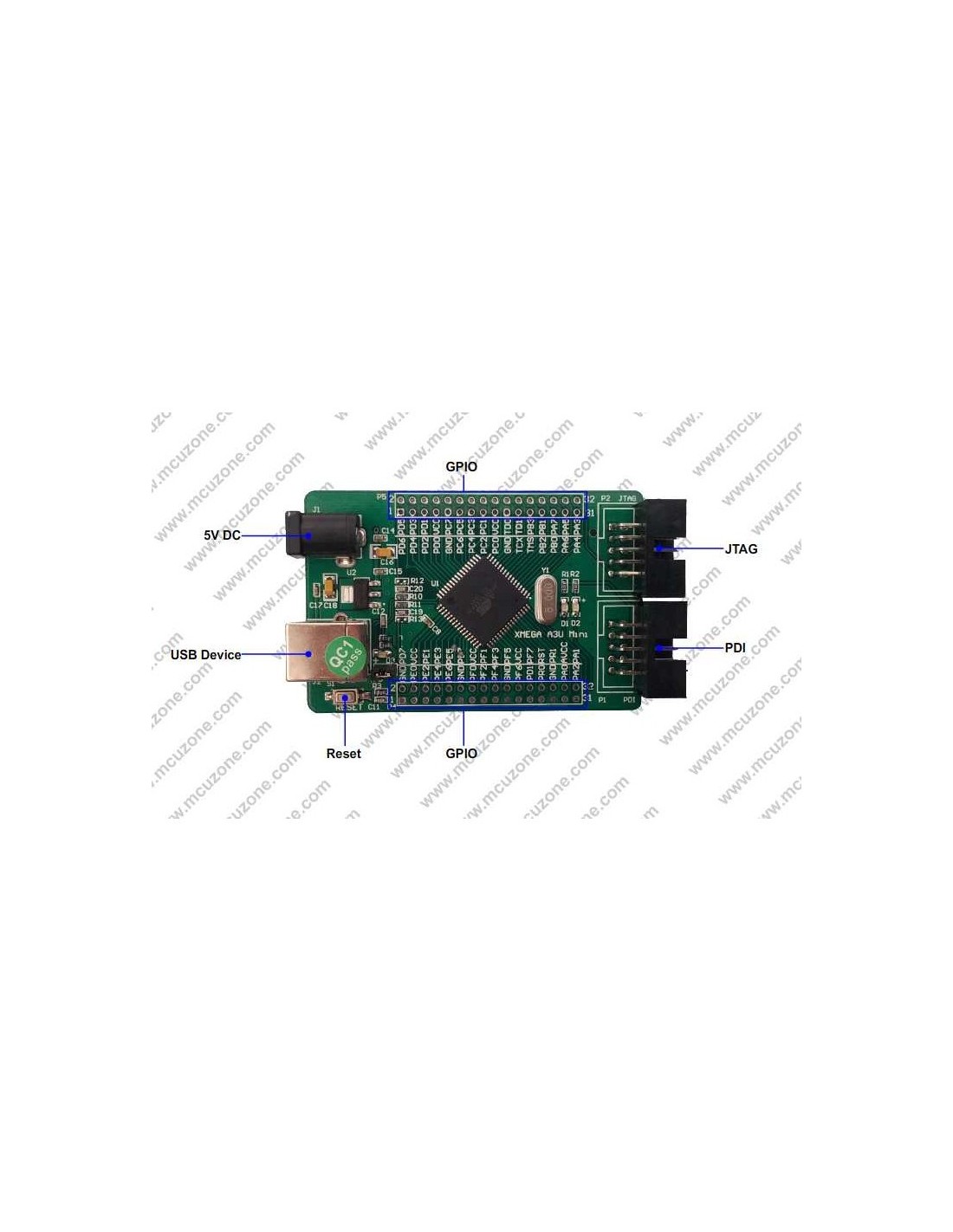

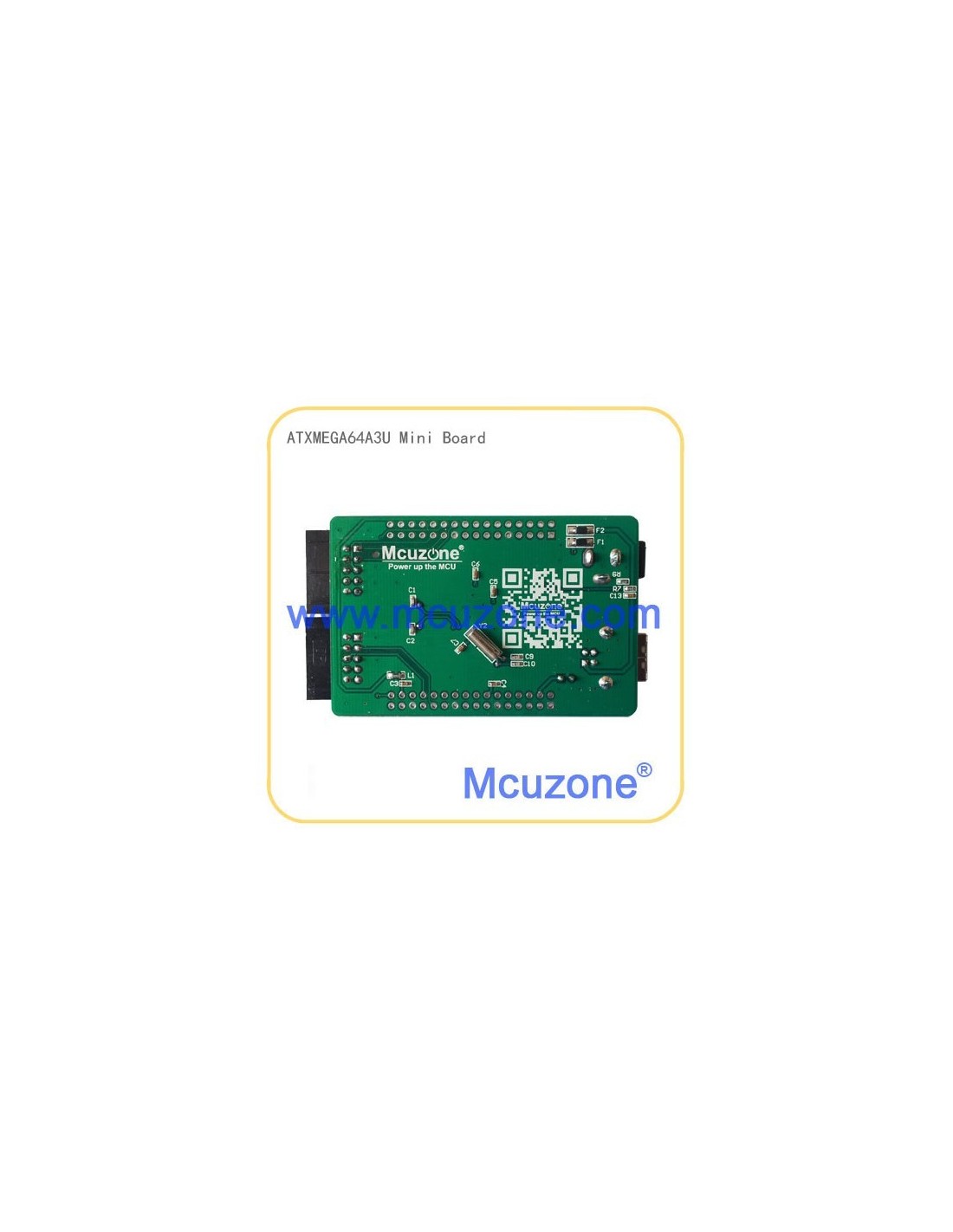

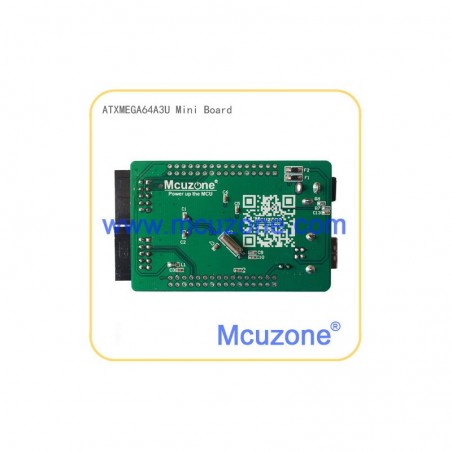

This station designed the minimum system board for the ATxmega A3U series, led the USB 2.0 full-speed Device interface, led JTAG and PDI debug interface, led all GPIO pins, and onboard two LED indicators.
[CPU performance]
|
ATxmega64A3U CPU Performance |
|
| name | description |
| CPU architecture | AVR XMEGA |
| Operating Voltage | 1.6-3.6V , Industrial Grade |
| working frequency | 32MHz maximum , built-in 2M and 32M clock and PLL circuit, default 2M |
| Memory | 64KB FLASH , 4KB SRAM , 2KB EEPROM , 4KB Boot FLASH |
| On-chip peripherals | 8 -channel event system . 7 th 16 bit the TC , . 7 th The USART , 2 th the TWI , . 3 th the SPI , the AES and DE engine, 2 th 8 -channel 12 is bit 2M ADC, 2 -channel 12 is bit 1M DAC, BOD , PLL, USB 2.0 Full Speed Device |
| Packaging | TQFP64 |
[hardware resources]
The ATxmega64A3U minimum system board is designed for QFP 64-pin A3 series and comes standard with ATxmega64A3U. It can be replaced with pin compatible 32A3U, 128A3U, 256A3U and other A3 series.
- CPU: ATxmega64A3U, customers can replace AQ series with other QFP64 pins
- USB or external 5V DC power supply, onboard 1117-3.3 LDO;
- USB 2.0 full-speed Device interface;
- Two LED indicators
- One power indicator
- PDI and JTAG debug interface (PDI interface for mkII-CN design, original mkII please use a single core connection);
- Reset button
- All GPIO leads, 2.54 pitch, does not match the connector;
- Board size: 72mm × 48mm
[Software resources]
- ATMEL STUDIO; ( download from www.mcuzone.com/down )
- Provide USB examples;
- Provide USB DFU Bootloader burning files (excluding source code);
- Provide LED examples;
- Provide XMEGA application notes, including clock system, ADC, DAC, analog comparator, timer, USART, TWI, SPI, watchdog, IO, RTC, EEPROM, self programming, DES, AES, Bootloader
- Note: XMEGA Application Notes do not provide technical support
- Provide pdf format schematic
